N Male Right Angle to N Male Right Angle Semi-Flexible
Precision Cable Using PE-SR402FL Coax, RoHS
TECHNICAL DATA SHEET
PE39452
Hand Formable N Male Right Angle to N Male Right Angle Semi-Flexible Precision Cable Using PE-
SR402FL Coax, RoHS
Pasternack’s formable cable assemblies are hand formable semi-rigid replacements that are an alternative to costly
preformed assemblies. The formable semi-rigid cable alternatives are dimensionally and electrically similar to their semi-
rigid counterpart and have a tinned-copper-braid outer shield that provides excellent RF shielding. The hand formable
cable assemblies from Pasternack do not require special tooling to shape or reshape the assemblies and can replace
standard semi-rigid versions. The assemblies are available with or without a PVC jacket and are RoHS compliant,
•
Dimensionally and electrically the same as standard, solid outer conductor semi-rigid coax
•
Cable may be formed by hand and does not require special tools to bend
•
May be formed more than once without damaging the outer conductor
•
High RF Shielding >100 dB
•
100% Hi-pot and continuity tested
•
100% VSWR tested to max frequency of assembly
•
Standard and custom lengths ship the same day
Configuration
Connector 1
Connector 2
Cable Type
N Male Right Angle
N Male Right Angle
PE-SR402FL
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Typical Electrical Specifications
Frequency 1
Frequency, MHz
Insertion Loss
Frequency 2
Frequency, GHz
Insertion Loss
Frequency 3
Frequency, GHz
Insertion Loss
Electrical Specification Notes:
1000
0.119 dB/ft [ 0.39 dB/m ]
DC to 11
50
1.5:1
69
100
350
5
0.28 dB/ft [ 0.92 dB/m ]
10
0.421 dB/ft [ 1.38 dB/m ]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male Right Angle to N Male Right Angle Semi-Flexible Precision Cable Using PE-SR402FL
Coax, RoHS PE39452
PE39452 REV
1
N Male Right Angle to N Male Right Angle Semi-Flexible
Precision Cable Using PE-SR402FL Coax, RoHS
TECHNICAL DATA SHEET
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Diameter, in [mm]
.
PE39452
PE-SR402FL
-55 to +125
0.139 [3.53]
0.027 [12.25]
0.75 [19.05]
1.57 [39.88]
Weight, lbs [g]
One Time Minimum Bend Radius, in [mm]
Repeated Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Solid
Copper, Silver
1
PTFE
Connector 1
Type
Configuration
N Male Right Angle
Right Angle
Connector 2
Type
Configuration
N Male Right Angle
Right Angle
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

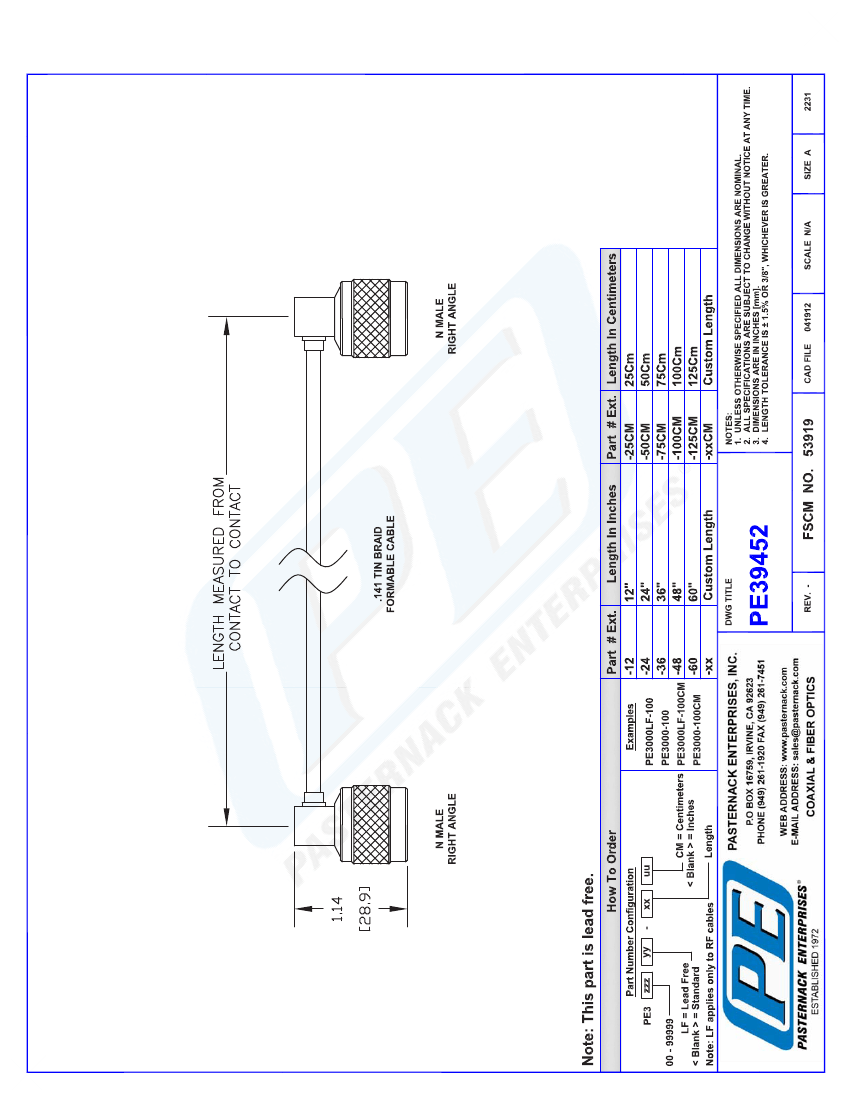

Plotted and Other Data
Notes:
Values at 25 °C, sea level
N Male Right Angle to N Male Right Angle Semi-Flexible Precision Cable Using PE-SR402FL Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male Right Angle to N Male Right Angle Semi-Flexible Precision Cable Using PE-SR402FL
Coax, RoHS PE39452
URL:
http://www.pasternack.com/n-male-n-male-pe-sr402fl-cable-assembly-pe39452-p.aspx
PE39452 REV
2
