PT08P-12-10PW: DescriptionMIL Series Connector, 10 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT08P-12-10PW Overview

MIL Series Connector, 10 Contact(s), Aluminum Alloy, Male, Solder Terminal, Plug

PT08P-12-10PW Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Factory Lead Time	7 weeks 1 day
Other features	STANDARD: MIL-C-26482, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	PT08P
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	12
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

PT08 E

SP08 E

90 degree plug

G

TERMINATION ASSEMBLIES

“E” Open Wire Seal, “E” (SR) Strain Relief

“P” Potting Boot 75 degrees

L

E

B

A

PT08E-XX-XXX

SP08E-XX-XXX

PT08E-XX-XXX (SR)

SP08E-XX-XXX (SR)

PT08P-XX-XXX

SP08P-XX-XXX

H

D

K

C

To complete part number see how to order on page 27.

All lockwire holes are .044 Dia. Min.

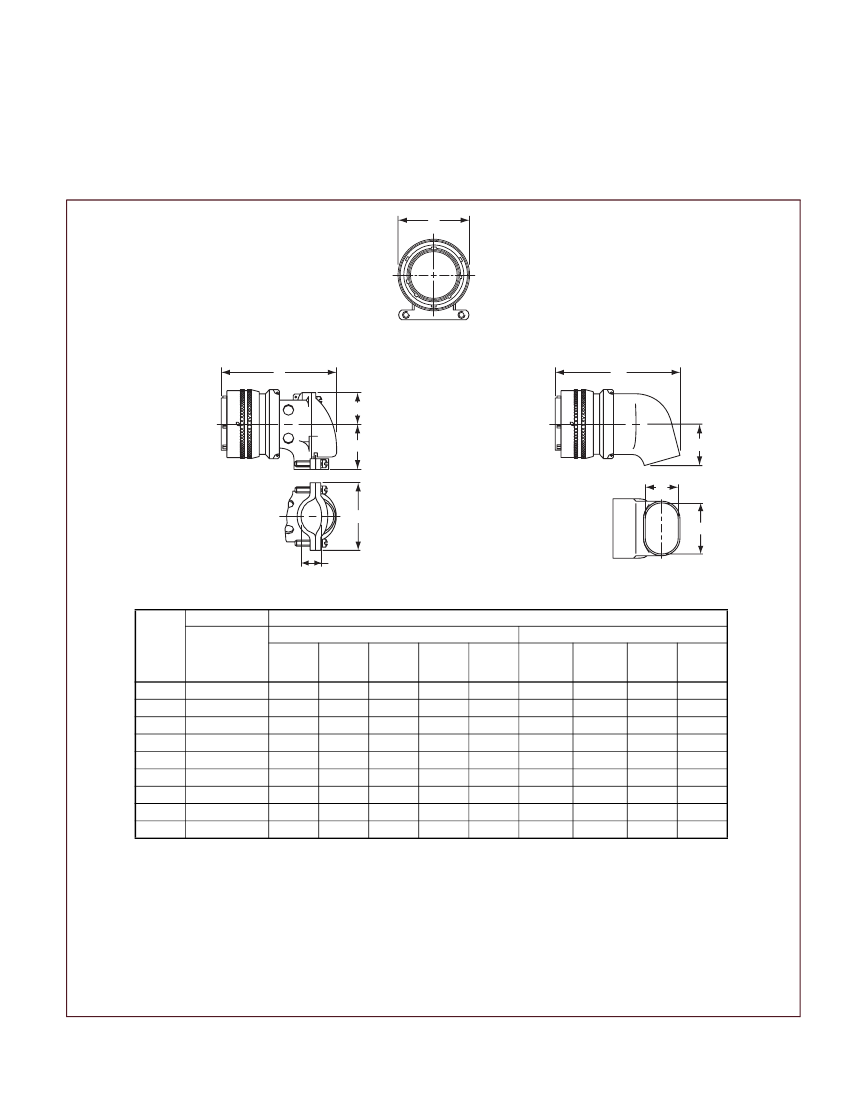

Plug Front View

Class “E”, “E” (SR)

Shell

Size

G

Dia.

Max.

B

±.031

C

+.010

–.025

D

±.062

E

+.047

–.025

L

±.057

A

±.025

Plug Side View

Class “P”

H

±.015

K

±.015

L

Max.

8

10

12

14

16

18

20

22

24

.796

.921

1.046

1.171

1.297

1.422

1.562

1.672

1.797

.655

.749

.812

.905

1.030

1.015

1.077

1.139

1.265

.169

.170

.264

.310

.330

.444

.510

.515

.656

.941

1.191

1.254

1.316

1.562

1.625

1.719

1.751

.339

.393

.450

.519

.583

.621

.683

.739

.797

1.786

1.880

1.965

2.113

2.315

2.423

2.695

2.742

2.980

.469

.547

.625

.734

.750

.781

.859

.906

1.169

.312

.438

.516

.625

.656

.703

.766

.812

.918

.438

.562

.688

.781

.890

1.000

1.125

1.234

1.374

1.656

1.781

1.843

1.953

2.000

2.046

2.218

2.265

2.624

All dimensions for reference only.
