KMR-200-19-30-116 datasheet, PDF

Datasheet> All Categories > The connector> The connector> KMR-200-19-30-116

KMR-200-19-30-116: DescriptionBoard Connector, 200 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Plug,; CategoryThe connector The connector; File Size1MB，6 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

KMR-200-19-30-116 Overview

Board Connector, 200 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Plug,

KMR-200-19-30-116 Parametric

Parameter Name	Attribute value
Maker	Smiths Group
Reach Compliance Code	unknown
Other features	SHROUDED
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	1.91 mm
Termination type	SOLDER
Total number of contacts	200
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

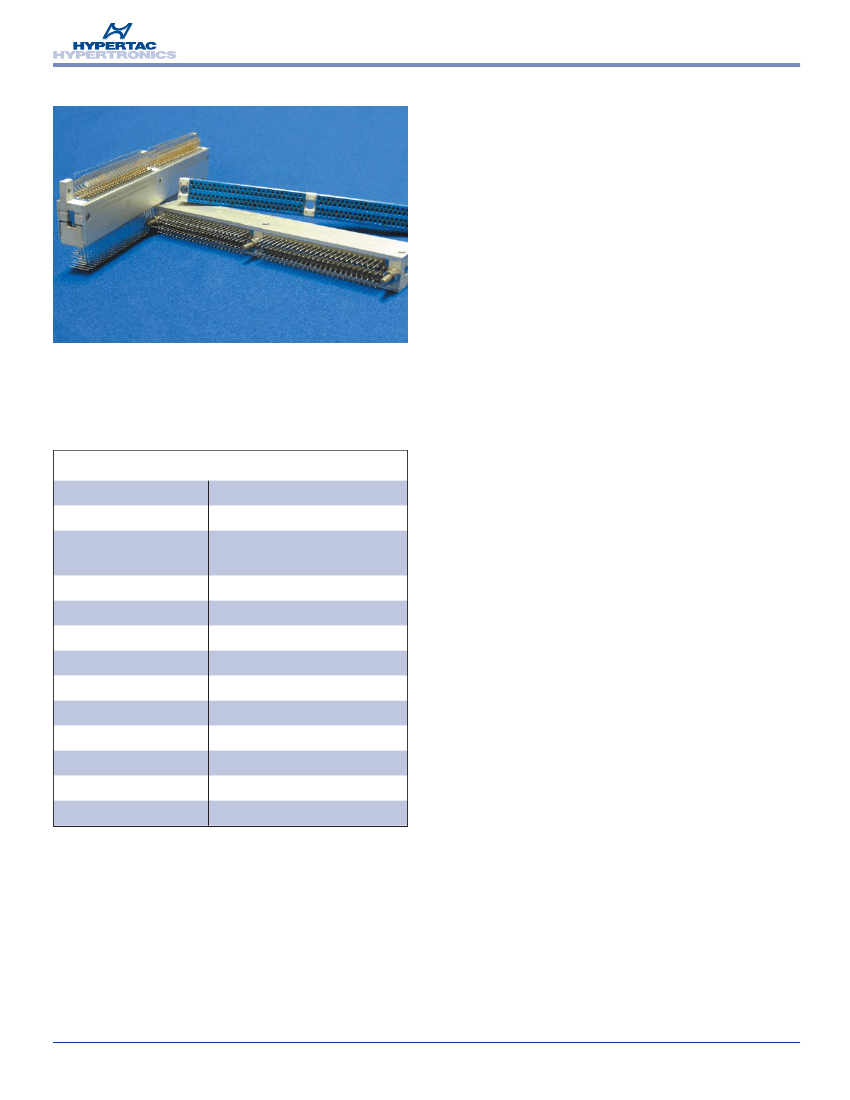

KMR Series

High Density Modular

Printed Circuit Board

Connectors

• For military, aerospace and space applications

• Ruggedized metal shell printed circuit board connector

with shrouded plug for pin protection

• 200 signal contacts

• Male plug: Straight, 90° and surface mount terminations

• Female receptacle: Straight and 90° terminations

• Pitch:

On mating side

- Receptacle and plug: 0.075 [1.91] between contacts

and rows

On termination side

- Receptacle: 0.075 [1.91] between contacts and rows;

0.100 [2.54] between the two central rows

- Plug: 0.038 [0.95] between contacts; 0.075 [1.91]

between rows; 0.100 [2.54] between the two

central rows

• Mixed layout for signal and special contacts

• Modular construction

General Specifications

Insulator Material

Frame Material

Contact

Material

Plating

Guide Material

Contact Resistance

Temperature Rating

Current Rating

Insulation Resistance

Contact Life Cycles

Extraction Forces

Voltage Rating

Contact Diameter

Impedance

Diallyl-phthalate UL94V0

Aluminum alloy

Copper alloy

Gold over nickel

Stainless steel

< 8 milliohms

-55 to 125° C

3 Amps per contact

> 10

megohms

100,000

1.8 oz.

200V

0.50mm

50Ω

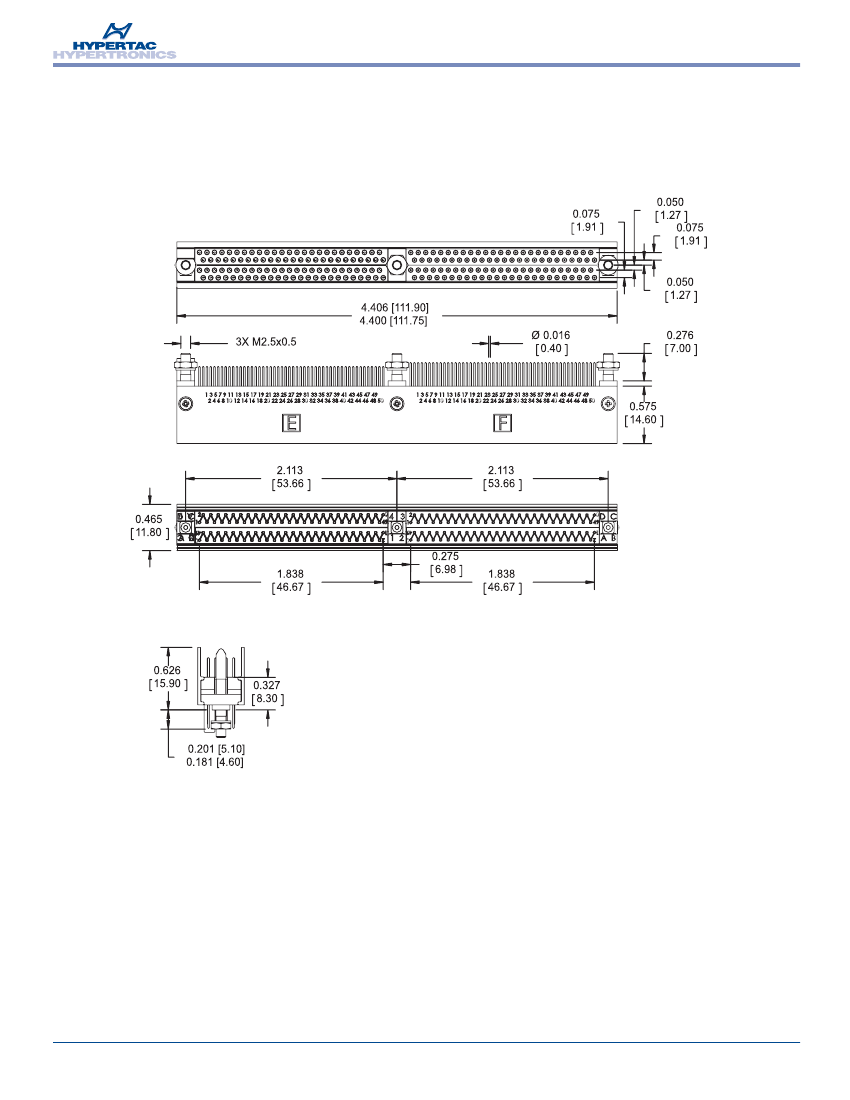

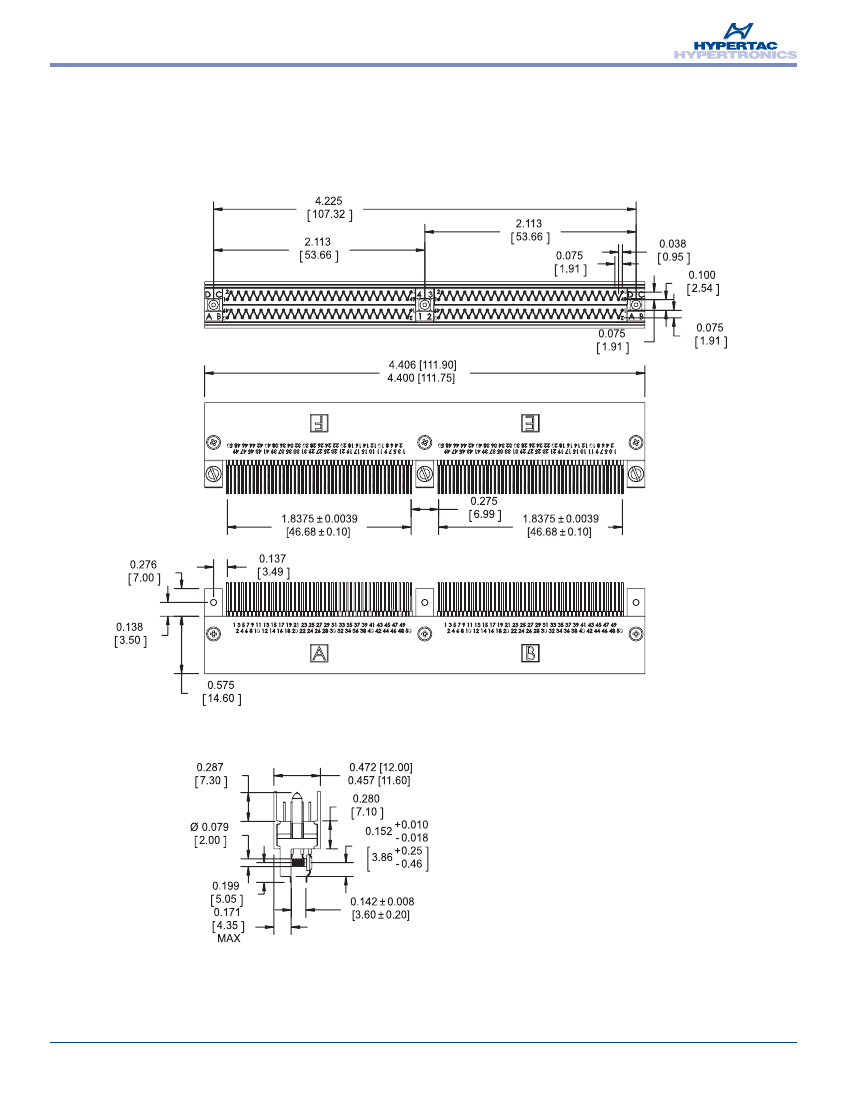

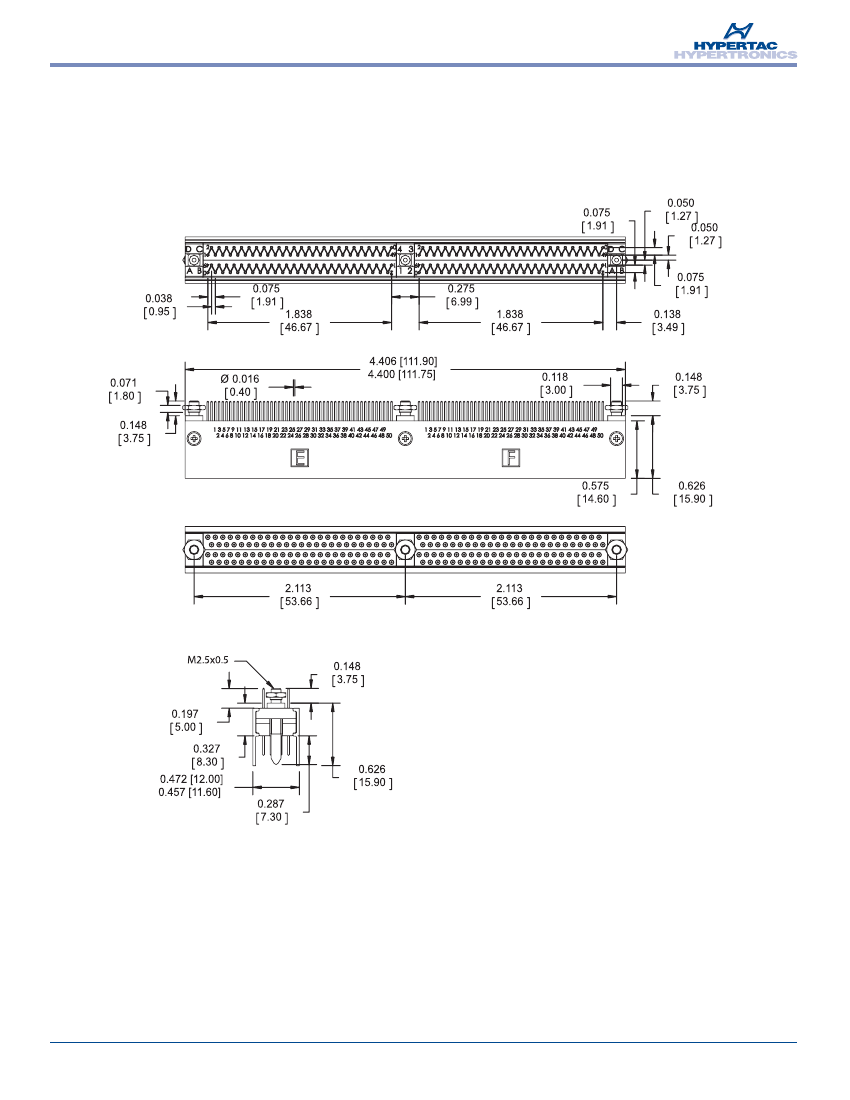

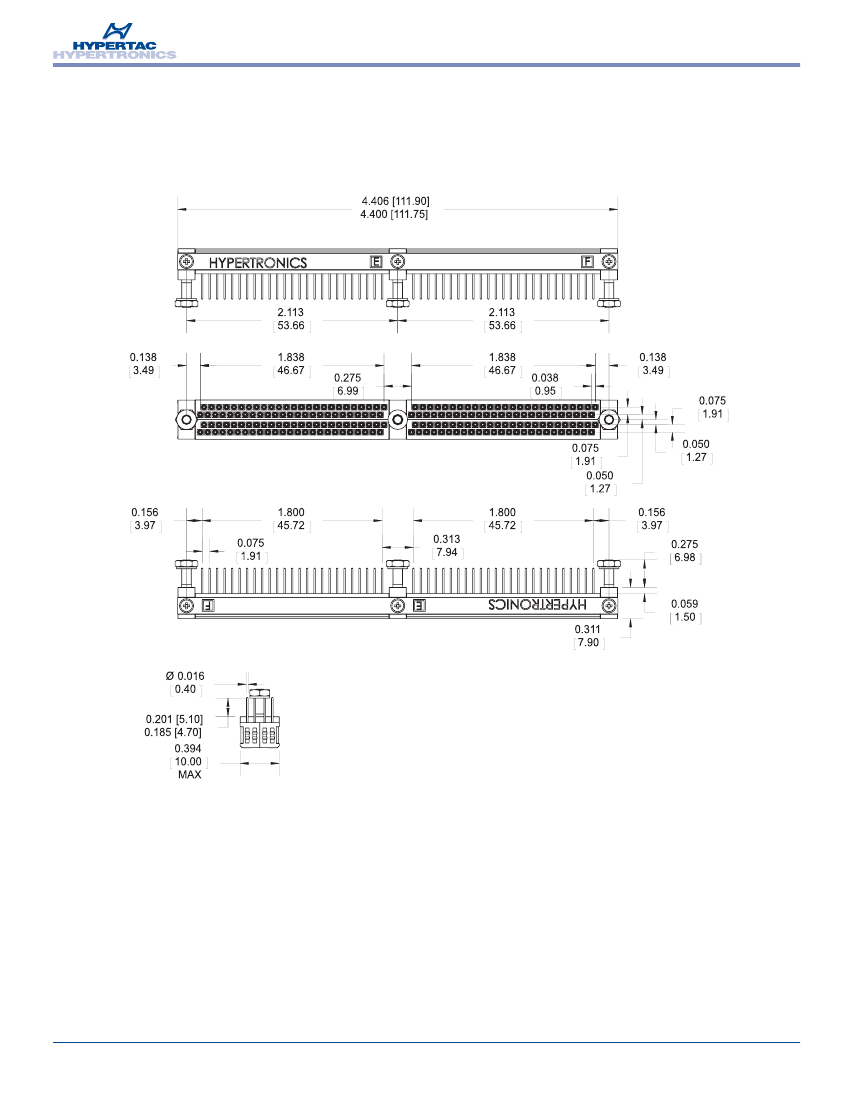

Dimensions are in inches [mm]

www.hypertronics.com

3 / 105

KMR-200-19-30-116 Related Products

	KMR-200-19-30-116	KMR-200-19-31-114	KMR-200-19-44-125	KMR-200-28-10-134	KMR-200-28-96-122
Description	Board Connector, 200 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Plug,	Board Connector, 200 Contact(s), 4 Row(s), Male, Straight, Solder Terminal, Plug,	Board Connector, 200 Contact(s), 4 Row(s), Male, Right Angle, Surface Mount Terminal, Plug,	Board Connector, 200 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle,	Board Connector, 200 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Receptacle,
Maker	Smiths Group	Smiths Group	Smiths Group	Smiths Group	Smiths Group
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	MALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm
Termination type	SOLDER	SOLDER	SURFACE MOUNT	SOLDER	SOLDER
Total number of contacts	200	200	200	200	200
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Other features	SHROUDED	SHROUDED	SHROUDED	-	-
