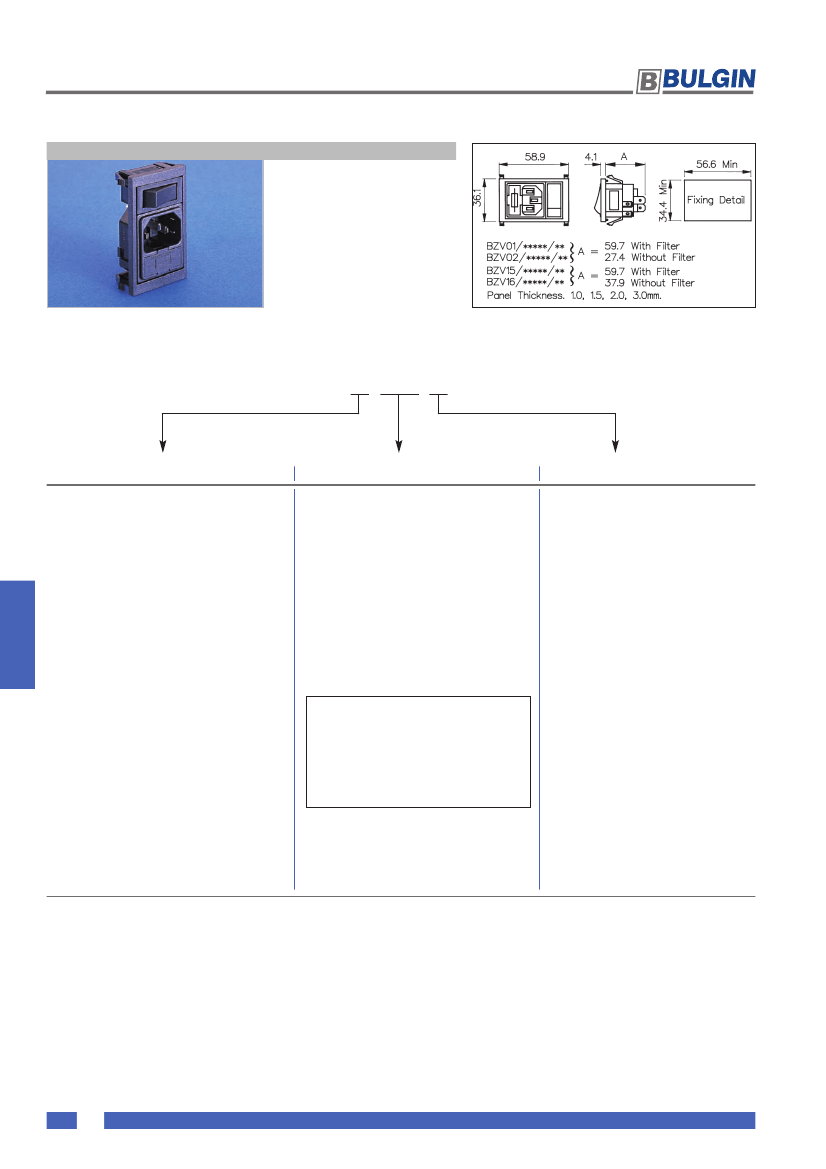

C14 IEC Fused Inlet - Vertical
VERTICAL MODULE ARRANGEMENT
Fused Inlet with 2.8mm or
6.3mm tags
Single Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BZV01/Z0000/01
How to Order
BZV xx / xxxxx / xx
Type of Inlet / Outlet
Single Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
01
= PF0011/63
02
= PF0011/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical (Twin Fuse Version only)
Combination of Other Components
Single Pole Switch:
01
= S.P Switch
.
Single Pole Neon Switch:
02
= S.P Red Neon Switch
.
08
= S.P Green Neon Switch
.
Neon Indicator:
03
= Red Neon Indicator
Single Pole High Inrush Switch:
46
= S.P High Inrush Switch
.
IEC CONNECTORS
Twin Fused C14 Power Inlet (cold condition),
6.3 or 2.8mm tabs:
15
= PF0033/63
16
= PF0033/28
For Filtered inlet use 6th to 9th characters from filter
ordering code see pages 127-129.
Single Pole Switch Marked I/O:
69
= S.P Switch (I/O)
.
E.g. BZV01/A0620/01
Single Pole Neon Switch Marked (I/O):
71
= S.P Red Neon Switch (I/O)
.
74
= S.P Green Neon Switch (I/O)
.
Single Pole High Inrush Switch Marked (I/O):
98
= S.P High Inrush Switch (I/O)
.
Note: For technical details of individual components please see page 106
108
