QN Female Connector Solder Attachment
4 Hole Flange Solder Cup Terminal
TECHNICAL DATA SHEET
QN Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
QN Female
Solder Cup
Solder
Straight
4 Hole Flange
PE44610
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Insertion Loss, dB
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, GHz
Return Loss, dB
Insertion Loss, dB
Power Handling, Watts
Frequency 2
Frequency, GHz
Return Loss, dB
Insertion Loss, dB
Frequency 3
Frequency, GHz
Return Loss, dB
Insertion Loss, dB
DC to 11
50
0.17
1,000
2,500
DC to 2.5
30
0.08
300
2.5 to 4
26
0.1
4 to 6
20
1.2
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-40 to +125
0.98 [24.89]
0.69 [17.53]
0.69 [17.53]
0.055 [24.95]
Weight, lbs [g]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
QN Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal PE44610
PE44610 REV 01
1
QN Female Connector Solder Attachment
4 Hole Flange Solder Cup Terminal
TECHNICAL DATA SHEET
Connector
Type
Mating Cycles
Contact Material and Plating
Body Material and Plating
Dielectric Type
QN Female
100
Brass, Gold
Brass, Tri-Metal
PTFE
PE44610
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
QN Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
QN Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal PE44610
URL:
http://www.pasternack.com/qn-female-standard-solder-cup-terminal-connector-pe44610-p.aspx
PE44610 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44610

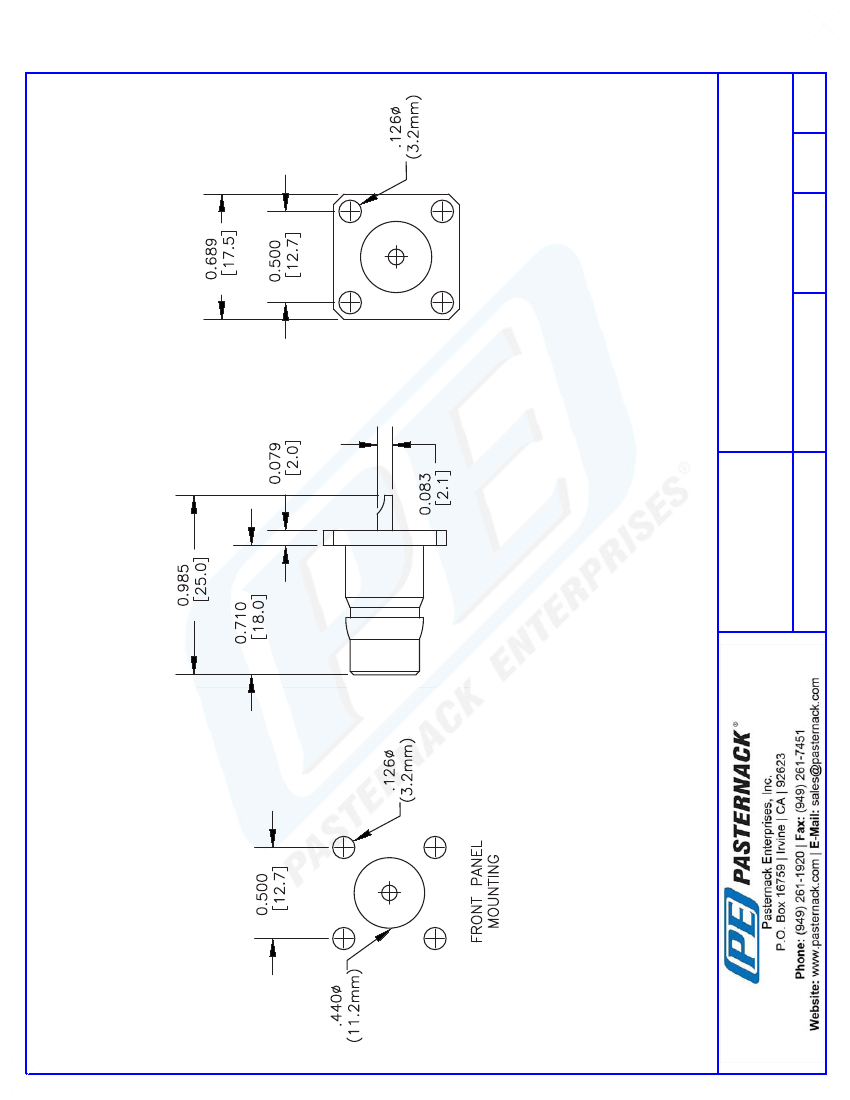

CAD Drawing
QN Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal
PE44610 REV 01
PE44610
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
061108
SCALE N/A
SIZE A
XXXX
3
