N Female Bulkhead Connector Solder Attachment
End Launch PCB, .630 inch Diameter
TECHNICAL DATA SHEET
N Female Bulkhead Connector Solder Attachment End Launch PCB, .630 inch Diameter
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
N Female
End Launch
Solder
Straight
Bulkhead
PE44615
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.32 [33.53]
0.724 [18]
0.06 [27.22]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
N Female
Brass, Gold
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
N Female Bulkhead Connector Solder Attachment End Launch PCB, .630 inch Diameter from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Bulkhead Connector Solder Attachment End Launch PCB, .630 inch Diameter PE44615
URL:
http://www.pasternack.com/n-female-standard-surface-mount-end-launch-connector-pe44615-p.aspx
PE44615 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44615

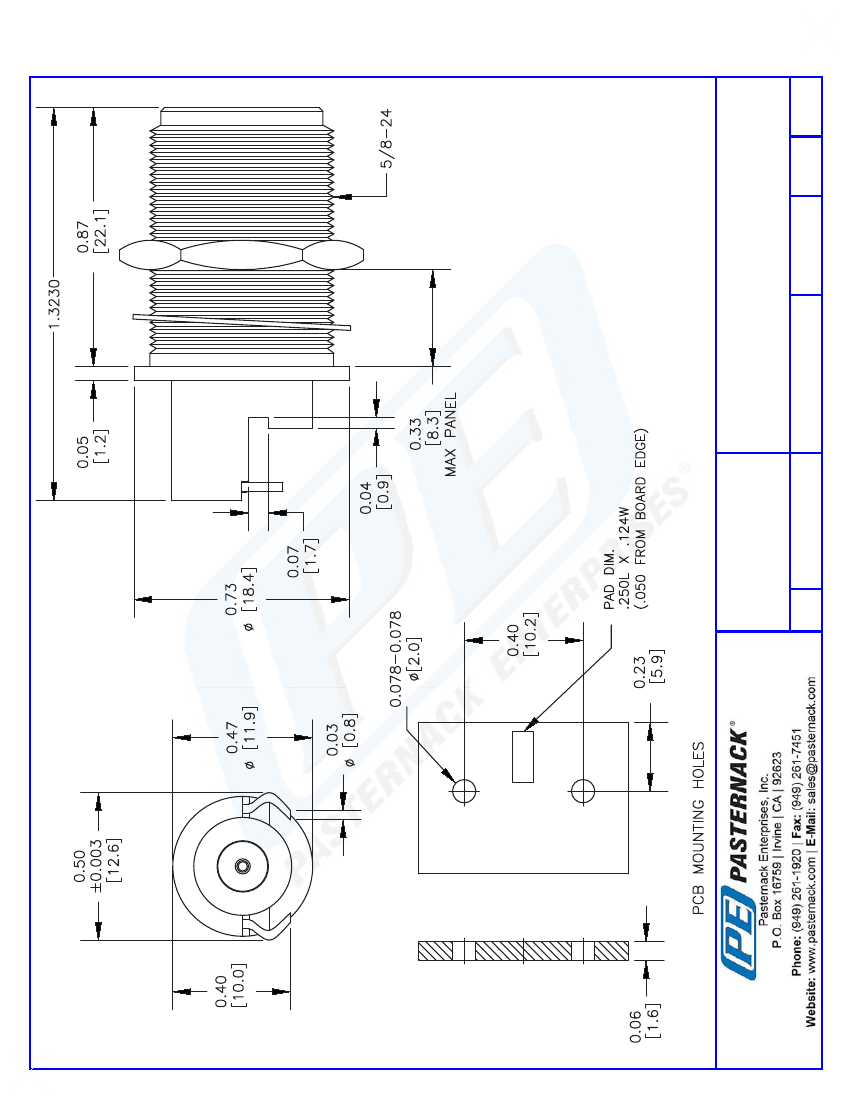

CAD Drawing
N Female Bulkhead Connector Solder Attachment End Launch PCB, .630 inch Diameter
PE44615 REV
PE44615
REV. B
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
021413-B
SCALE N/A
SIZE A
147
2
