75 Ohm BNC Female Bulkhead Connector Solder
Attachment End Launch PCB, .500 inch Diameter
TECHNICAL DATA SHEET
PE44620
75 Ohm BNC Female Bulkhead Connector Solder Attachment End Launch PCB, .500 inch Diameter
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
BNC Female
End Launch
Solder
Straight
Bulkhead
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.105 [28.07]
0.63 [16.00]
0.02 [9.07]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
BNC Female
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm BNC Female Bulkhead Connector Solder Attachment End Launch PCB, .500 inch Diameter from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm BNC Female Bulkhead Connector Solder Attachment End Launch PCB, .500 inch
Diameter PE44620
URL:
http://www.pasternack.com/bnc-female-standard-surface-mount-end-launch-connector-pe44620-p.aspx
PE44620 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44620

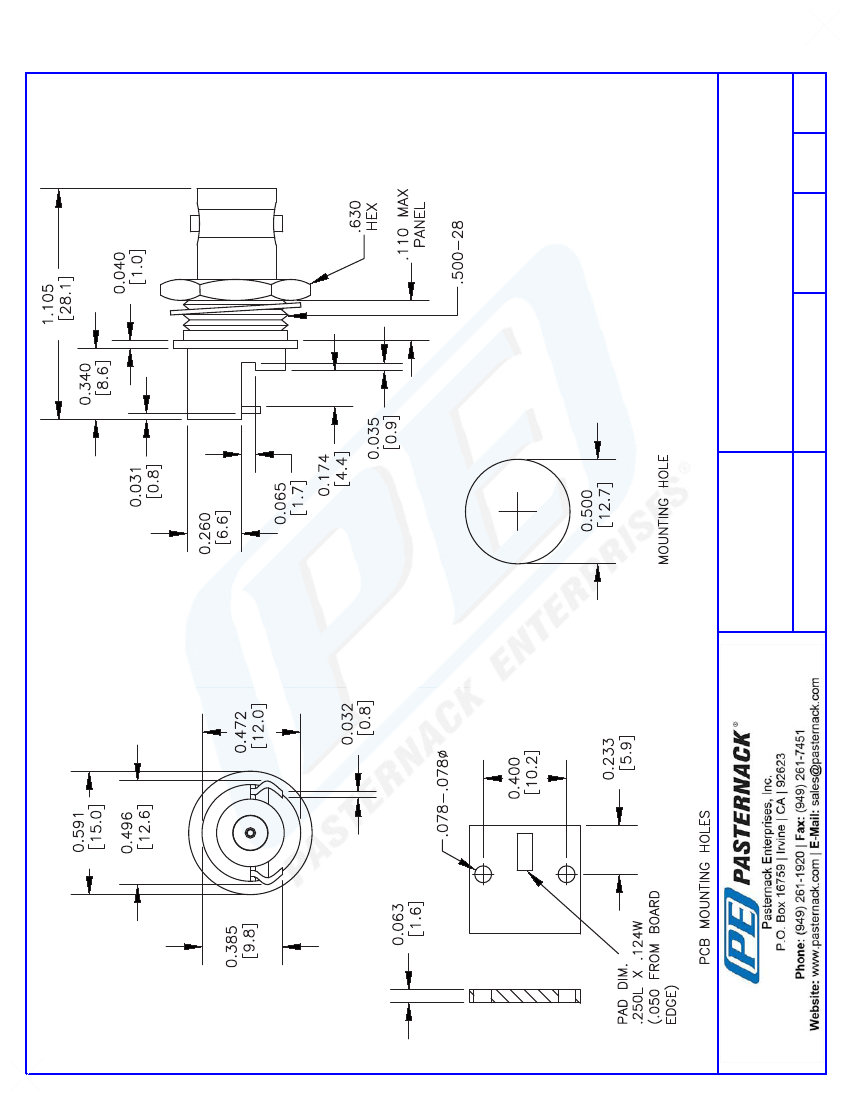

CAD Drawing
75 Ohm BNC Female Bulkhead Connector Solder Attachment
End Launch PCB, .500 inch Diameter
PE44620 REV 01
PE44620
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
060408
SCALE N/A
SIZE A
XXXX
2
