PE44627: Description75 Ohm BNC Male Connector Crimp/Solder Attachment For 1694A; CategoryThe connector; File Size200KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE44627 Overview

75 Ohm BNC Male Connector Crimp/Solder Attachment For 1694A

Preview

Download Datasheet

View All

75 Ohm BNC Male Connector Crimp/Solder Attachment For 1694A

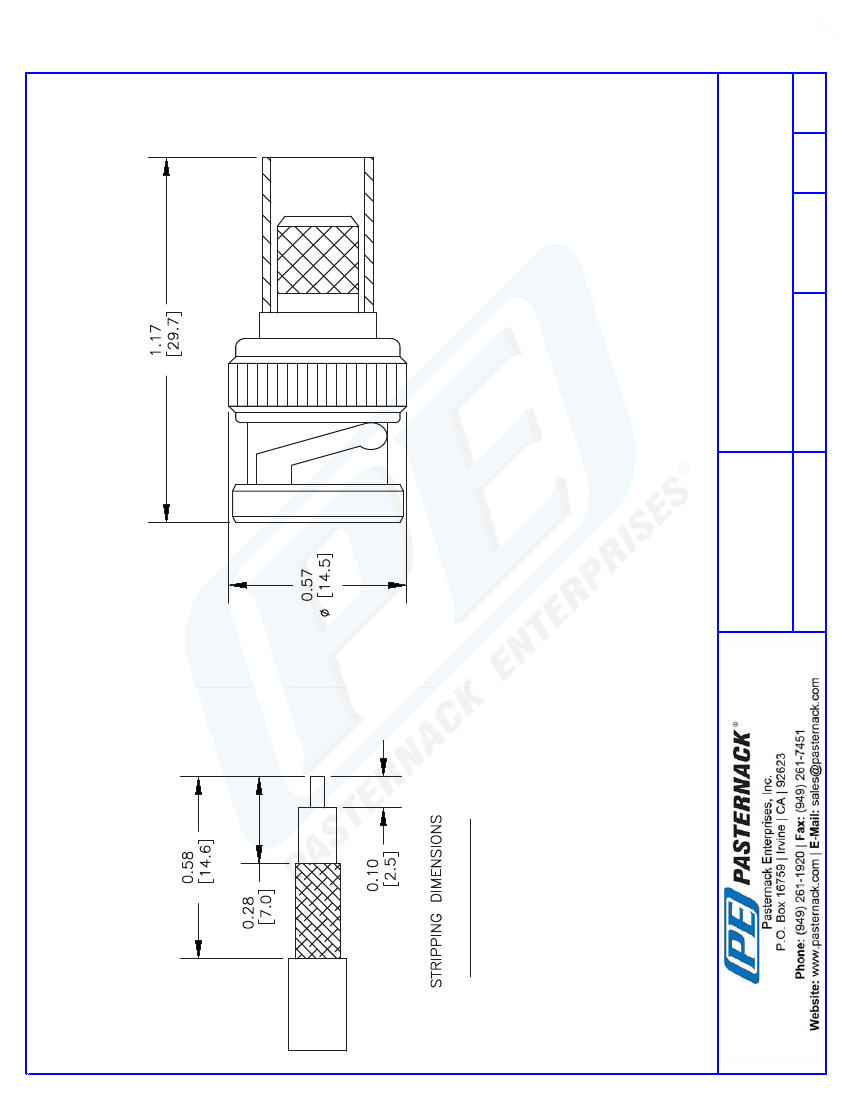

TECHNICAL DATA SHEET

75 Ohm BNC Male Connector Crimp/Solder Attachment For 1694A

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

BNC Male

1694A

Crimp/Solder

Straight

PE44627

Electrical Specifications

Impedance, Ohms

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

1.17 [29.72]

0.57 [14.48]

0.02 [9.07]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Coupling Nut Material and Plating

Body Material and Plating

Dielectric Type

BNC Male

Gold

Brass, Nickel

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

75 Ohm BNC Male Connector Crimp/Solder Attachment For 1694A from Pasternack Enterprises has same day shipment for

domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the

broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

75 Ohm BNC Male Connector Crimp/Solder Attachment For 1694A PE44627

URL:

http://www.pasternack.com/bnc-male-standard-1694a-connector-pe44627-p.aspx

PE44627 REV 01
