FAKRA Plug Connector Crimp/Solder Attachment
For PE-C100, RG174, RG316, Black Color
TECHNICAL DATA SHEET
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
FAKRA Plug
PE-C100,RG174,RG316
Crimp/Solder
Straight
PE44647A
FAKRA Plug Connector Crimp/Solder Attachment For PE-C100, RG174, RG316, Black Color
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Dielectric Withstanding Voltage, Vrms
DC to 4
50
1.3:1
800
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-40 to +85
0.035 [0.89]
0.37 [9]
0.433 [11]
0.008 [3.63]
Black
Weight, lbs [g]
Color
Connector
Type
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
FAKRA Plug
Phosphor Bronze, Gold
Brass, Nickel
Plastic, Paint
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FAKRA Plug Connector Crimp/Solder Attachment For PE-C100, RG174, RG316, Black Color
PE44647A
PE44647A REV
1
FAKRA Plug Connector Crimp/Solder Attachment
For PE-C100, RG174, RG316, Black Color
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
FAKRA Plug Connector Crimp/Solder Attachment For PE-C100, RG174, RG316, Black Color from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
FAKRA Plug Connector Crimp/Solder Attachment For PE-C100, RG174, RG316, Black Color
PE44647A
URL:
http://www.pasternack.com/fakra-plug-standard-pe-c100-rg174-rg316-connector-pe44647a-p.aspx
PE44647A
PE44647A REV
2
Part Configurator
1. Replace Y with code.
CODING
JACK
COLOR
APPLICATION
© 2013 Pasternack Enterprises All Rights Reserved
A
BLACK
RADIO WITH
PHANTOM SUPPLY
B
WHITE
RADIO WITHOUT
PHANTOM SUPPLY
C
BLUE
GPS: TELEMATICS
OR NAVIGATION
PE44647A

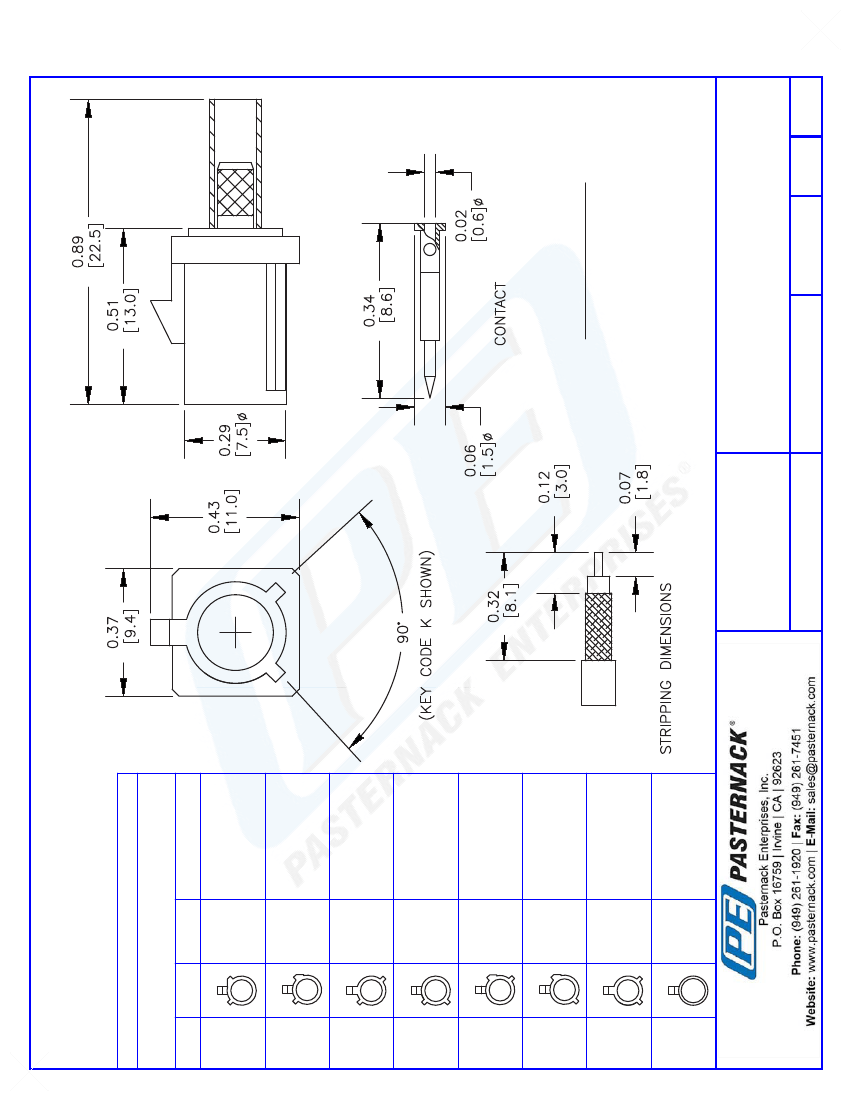

CAD Drawing
FAKRA Plug Connector Crimp/Solder Attachment For
PE-C100, RG174, RG316, Black Color
PE44647A REV
DWG TITLE
D
BORDEAUX
GSM: CELLULAR
PHONE
H
VIOLET
GPS: TELEMATICS
AND NAVIGATION
I
BEIGE
BLUETOOTH
CRIMP SIZE REQUIRED
CONTACT: SOLDER
FERRULE: .128" HEX CRIMP TOOL
K
CURRY
RADIO WITH IF
OUTPUT
(ANTENNA DIVERSITY)
Z
WATER
BLUE
NEUTRAL CODING
PE44647/Y
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
