TE Connectivity

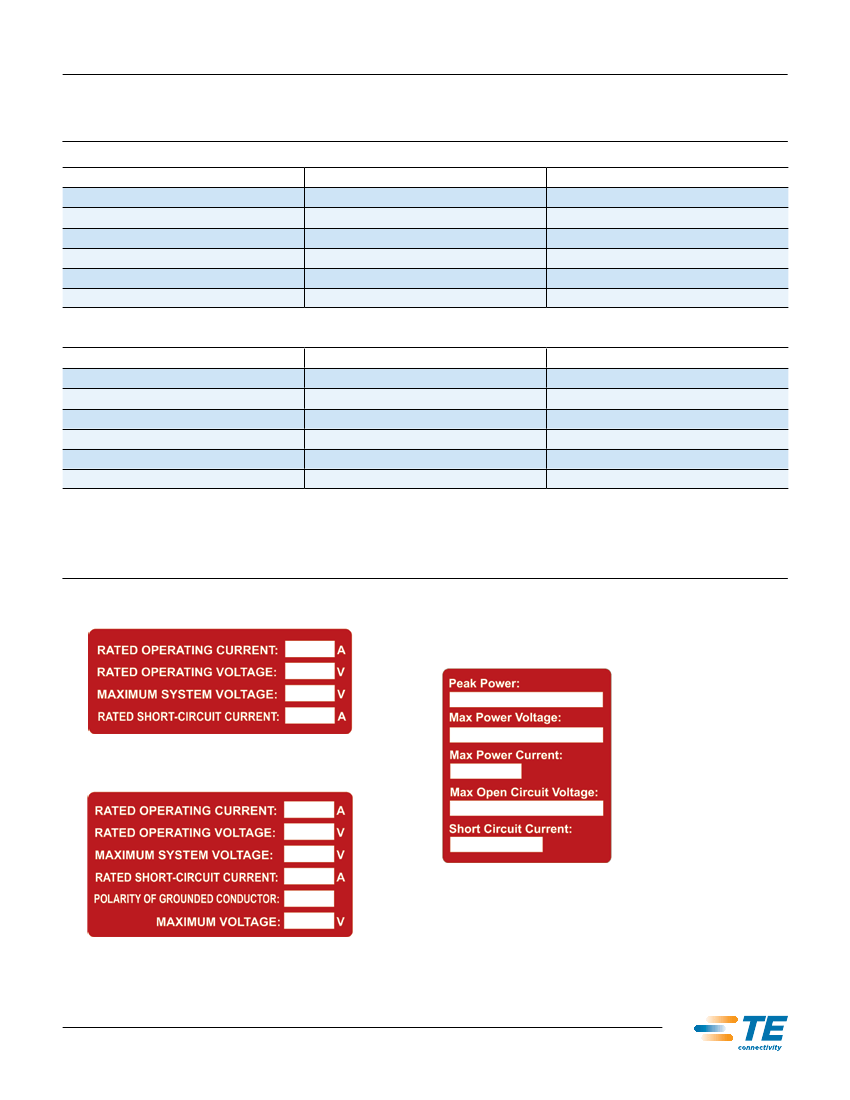

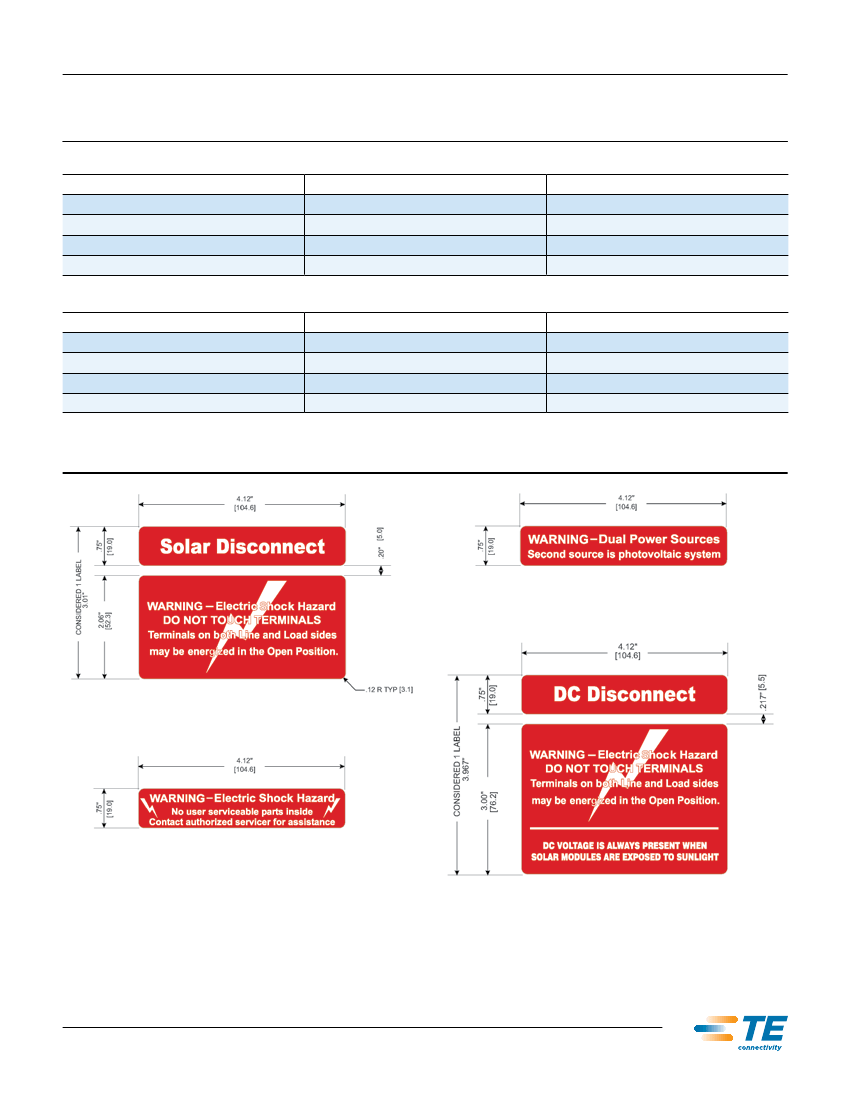

Solar Identification Labels
DESCRIPTION
TE Connectivity introduces label solutions for Solar Panel Installation per the National
Electric Code (NEC) specification. Labels are manufactured using ultraviolet (UV)
resistant ink, permanent acrylic adhesive and base material designed to withstand
environmental elements. A laminate is added to provide additional protection against
prolonged UV exposure.
APPLICATIONS
Renewable Energy:
•
Solar : DC Switches, Combiner Boxes
•
Wind : DC Switches
TEMPERATURE RATINGS
Service Temperature:
•
-51˚C to 93.3˚C (-60˚F to 200˚F)
KEY FEATURES
• Recommended for use
in identification of DC
Disconnects and Inverters.
• For use on painted smooth
metal and textured metal
surfaces.
• Excellent durability in extreme
outdoor elements such as UV,
rain, humidity, cold and salt
spray.
• Multiple formats available
• RoHS Compliant
• Outdoor durability for this
label is unmatched by other
labels in its class.
STANDARDS AND SPECIFICATIONS
ASTM D 3652
: Physical Construction
ASTM D 3330
: Adhesion
ASTM D 2979
: Adhesion
ASTM D 1000
: Flammability
ASTM D 3759
: Tensile Strength and Elongation
MIL-STD 202G
: Method 215
ASTM D 3424
: Method 4, UV Light exposure
ASTM G85
: Annex 5, Salt Spray - Prohesion
ASTM 81531
: Print Adherence
UL PGDQ2 MH17001
UL PGJI2 MH17292
MATERIALS
•
High performance vinyl base material
•
UV resistent ink
•
UV resistant clear lamination
te.com/products/solarlabels
TE Connectivity
Reflective Solar Labels
DESCRIPTION
Reflective solar labels are manufactured using retro reflective marking to provide
emergency responders with appropriate warning and guidance relative to isolating
the solar electric system. The label(s) were designed to be in accordance with the
dimensional, functional and verbiage requirements established by the California Fire
Marshall’s April 2009, Solar Photovoltaic Installation Guideline.
APPLICATIONS
Use at the Main Service Disconnect, and DC conduit, raceways, enclosures, cable
assemblies and junction boxes on solar photovoltaic installations.
MATERIALS
CAUTION SOLAR CIRCUIT
: Permanent solvent based adhesive
5 mil retro-reflective cast PVC film
UV resistant over lam when applicable
KEY FEATURES
• Reflectivity even in poor visibility
and bad weather conditions.
• Its special impact and scratch
resistant surface and flexibility
make it suitable for identification
in darkened areas, i.e, conduit
raceways, enclosures, etc.
• Complies with international
specifications for reflective
materials including
ASTM D4956.
• White reflective lettering
jumps out from the red ink
when hit with a light source
like a flashlight.
• 7 – 10 year outdoor durability
(longer for indoor or protected
from weather).
• Highly flexible for uneven surfaces,
painted, smooth metal or textured
metal surfaces.
• Reflective properties are built
in, not a ‘charge time’ film.
• Resistant to most oils
and greases.
STANDARDS AND SPECIFICATIONS
ASTM D 3652
: Physical Construction
ASTM D 3330
: Adhesion
ASTM D 2979
: Adhesion
ASTM D 1000
: Flammability
ASTM D 3759
: Tensile Strength and Elongation
MIL-STD 202G
: Method 215
ASTM D 3424
: Method 4, UV Light exposure
ASTM G85
: Annex 5, Salt Spray - Prohesion
ASTM 81531
: Print Adherence
ASTM D4956
: Standard Specification for Retroreflective Sheeting for Traffic Control
PRODUCT OFFERING
Packs of 50 (10 labels/sheet, 5 sheets/pack)
TE Ordering Description
SOL-SEC-305254-4-0.1
SOL-CSC-159254-4-0.1
SAP Part Number
CN6557-000
CN4615-000
Dimensions
1 x 12”
(25.4 x 304.8”)
1 x 6.25”
(25.4 x 158.75mm)
Label Description
CAUTION SOLAR
ELECTRICAL SYSTEM
CAUTION SOLAR CIRCUIT
te.com/products/solarlabels
