SMP Male Full Detent Connector Solder Attachment
Thru Hole PCB, Round Body, Up To 8 GHz
TECHNICAL DATA SHEET
PE44775
SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To 8 GHz
Pasternack 8 GHz SMP connectors are designed to offer a low cost alternative where the SMP form factor is desired but
the standard SMP frequency range is not needed. The line of 8 GHz SMP connectors is fully compatible with industry
standard SMP and GPO® connectors. These SMP connectors offer a low cost high performance blind-mate solution for
lower frequency applications. The Male versions of the 8 GHz SMP is available in Full Detent, Limited Detent, and Smooth
Bore versions.
•
•
•
•
Fully compatible with industry standard SMP and GPO® connectors
Full Detent, Limited Detent, and Smooth Bore Male designs
Glass Bead Hermetic Sealed Male Shroud versions available
DC to 8 GHz with excelent VSWR and RF Leakage performance
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMP Male, Full Detent
MIL-STD-348A
Thru Hole
Solder
Straight
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 8
50
1.1:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +155
0.295 [7.49]
0.218 [5.54]
Connector
Type
Mating Cycles
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMP Male
100
Beryllium Copper, Gold
MIL-DTL-45204
Passivated Stainless Steel
MIL-DTL-14072
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To
8 GHz PE44775
PE44775 REV 1.1
1
SMP Male Full Detent Connector Solder Attachment
Thru Hole PCB, Round Body, Up To 8 GHz
TECHNICAL DATA SHEET

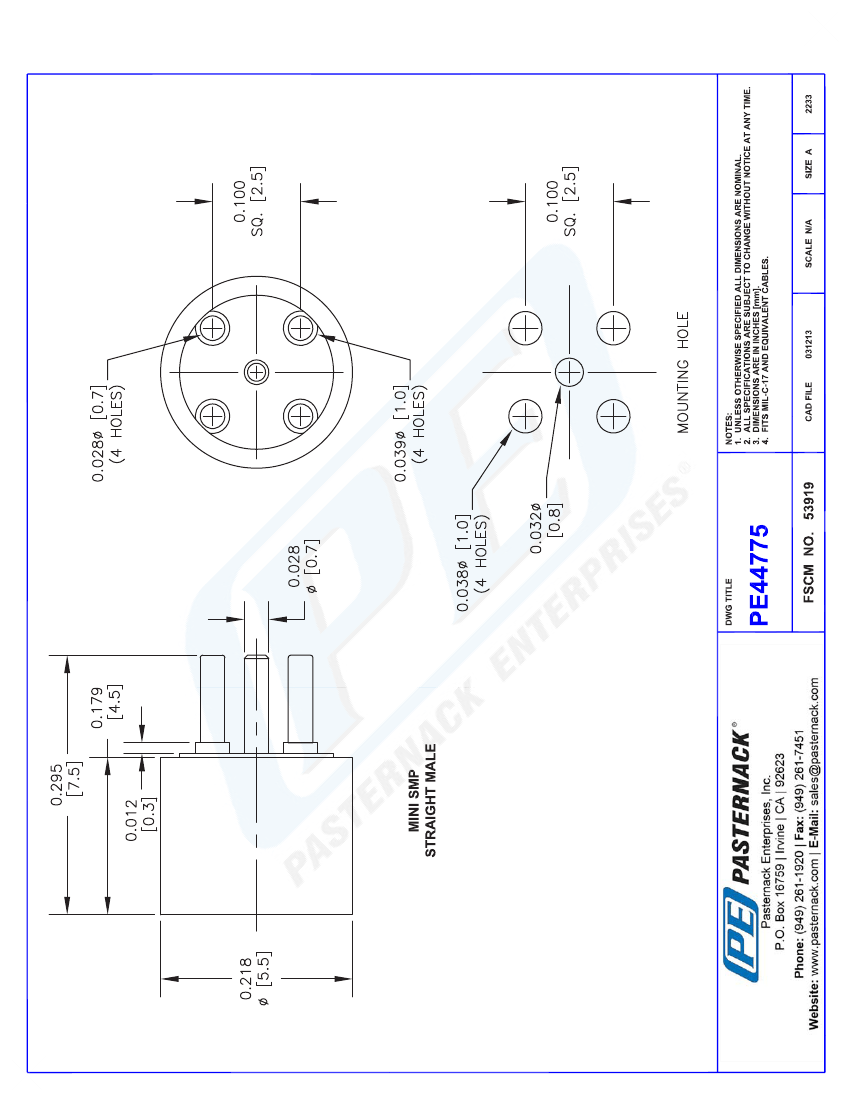

Plotted and Other Data
Notes:
PE44775
Values at 25 °C, sea level
GPO® is a Registered Trademark of Corning Gilbert Inc.
SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To 8 GHz from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Round Body, Up To 8 GHz
PE44775
URL: http://www.pasternack.com/smp-male-standard-thru-hole-pcb-connector-pe44775-p.aspx
PE44775 REV 1.1
2
