SMA Male to Reverse Polarity SMA Female Adapter
TECHNICAL DATA SHEET
SMA Male to Reverse Polarity SMA Female Adapter
Configuration
Connector 1
Connector Specification 1
Connector 2
Connector Specification 2
Adapter Design
Body Style
SMA Male
MIL-STD-348
SMA Female
MIL-STD-348
Standard
Straight
PE9534
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications

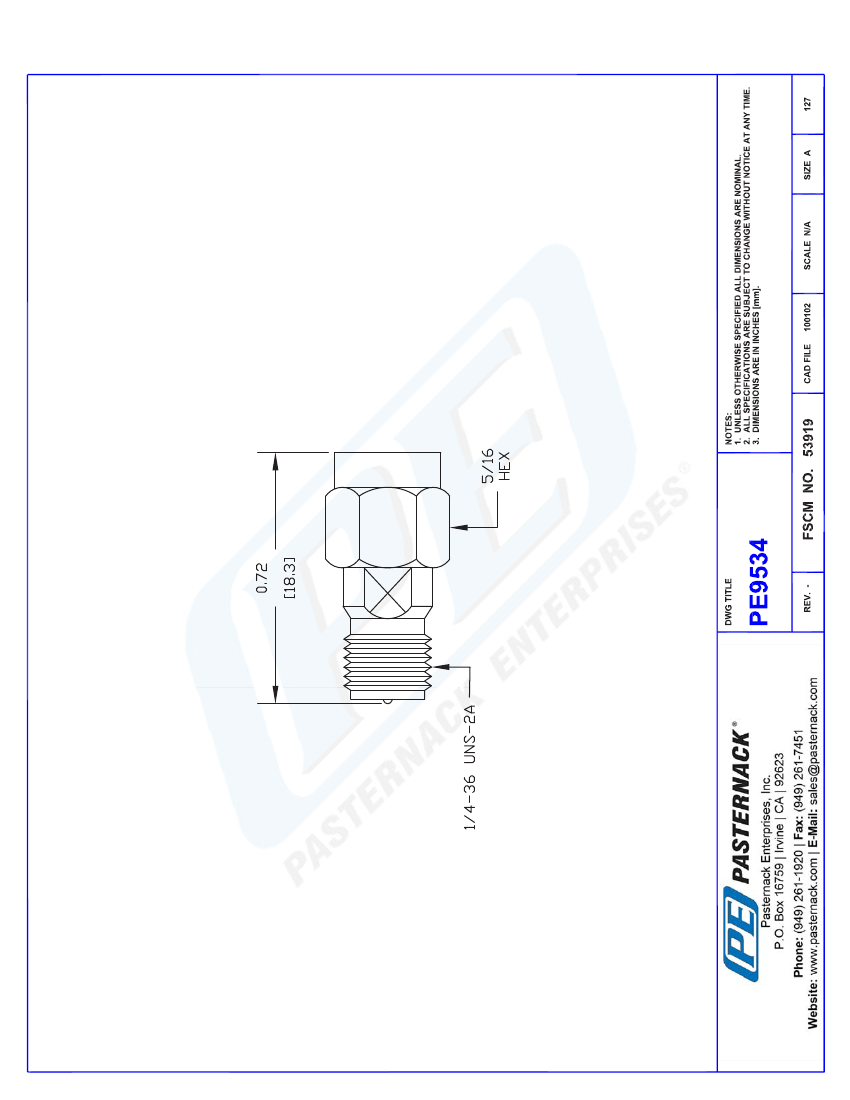

Size
Length, in [mm]
Width/Dia., in [mm]
.
0.72 [18.29]
0.312 [7.92]
PTFE
SMA Male
Beryllium Copper, Gold
Brass, Nickel
5/16
5 [0.57]
Stainless Steel, Passivated
SMA Female
Beryllium Copper, Gold
Stainless Steel, Passivated
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in
Torque, in-lbs [Nm]
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-male-sma-female-straight-adapter-pe9534-p.aspx
SMA Male to Reverse Polarity SMA Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9534 REV
1
