Precision SMA Male to SMA Male 4 Hole Flange Adapter
TECHNICAL DATA SHEET
Precision SMA Male to SMA Male 4 Hole Flange Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
Mount Method
SMA Male
50 Ohms
MIL-STD-348
SMA Male
50 Ohms
MIL-STD-348
Precision
Straight
4 Hole Flange
PE9669
Electrical Specifications
Frequency Range, GHz
Frequency 1
Frequency, GHz
VSWR
Frequency 2
Frequency, GHz
VSWR
Frequency 3
Frequency, GHz
VSWR
DC to 18
DC to 6
1.1:1
6 to 12.4
1.15:1
12.4 to 18
1.2:1
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +125
1.01 [25.65]
0.5 [12.7]
0.5 [12.7]
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
SMA Male
Beryllium Copper, Gold
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Male to SMA Male 4 Hole Flange Adapter PE9669
PE9669 REV
1
Precision SMA Male to SMA Male 4 Hole Flange Adapter
TECHNICAL DATA SHEET
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
PTFE
SMA Male
Beryllium Copper, Gold
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PTFE
PE9669
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-male-sma-male-straight-adapter-pe9669-p.aspx
Precision SMA Male to SMA Male 4 Hole Flange Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9669 REV
2
Precision SMA Male to SMA Male 4 Hole Flange Adapter
PE9669

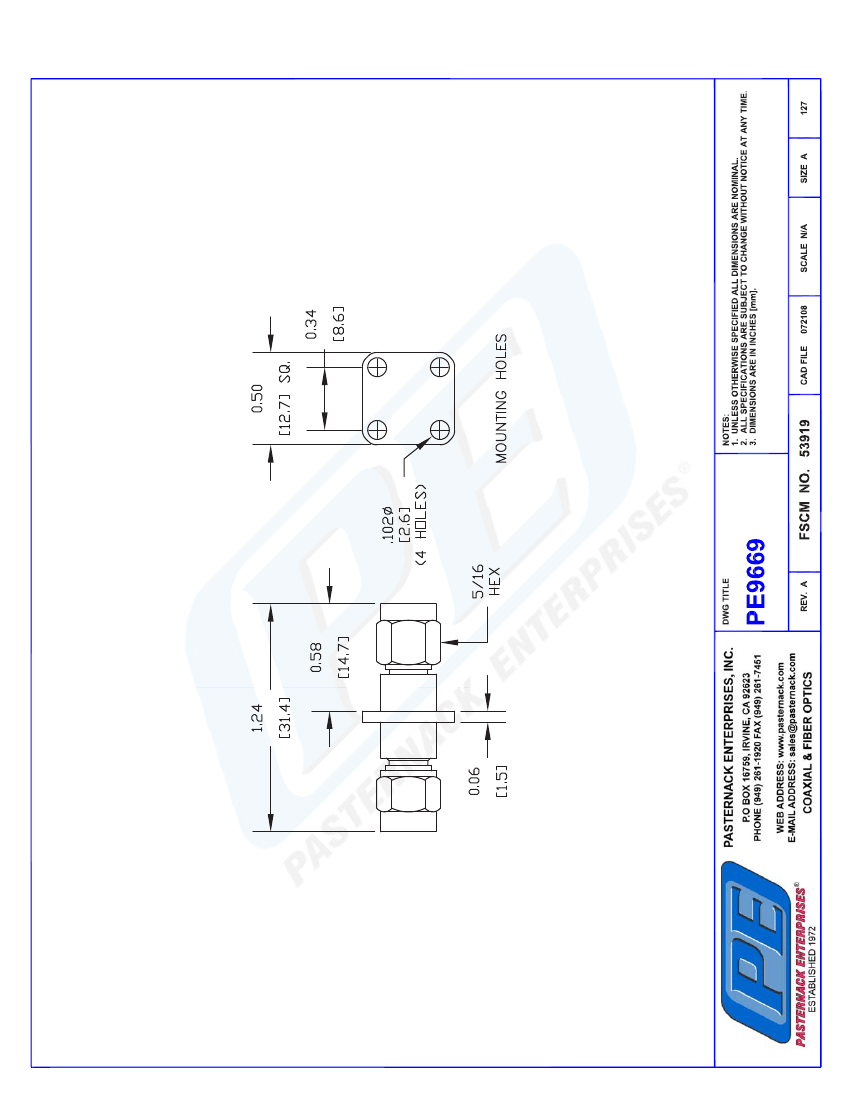

CAD Drawing
