73651-1426

Description
Rectangular Power Connector, 3 Contact(s), Male, Press Fit Terminal, Receptacle
CategoryThe connector    The connector
File Size176KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

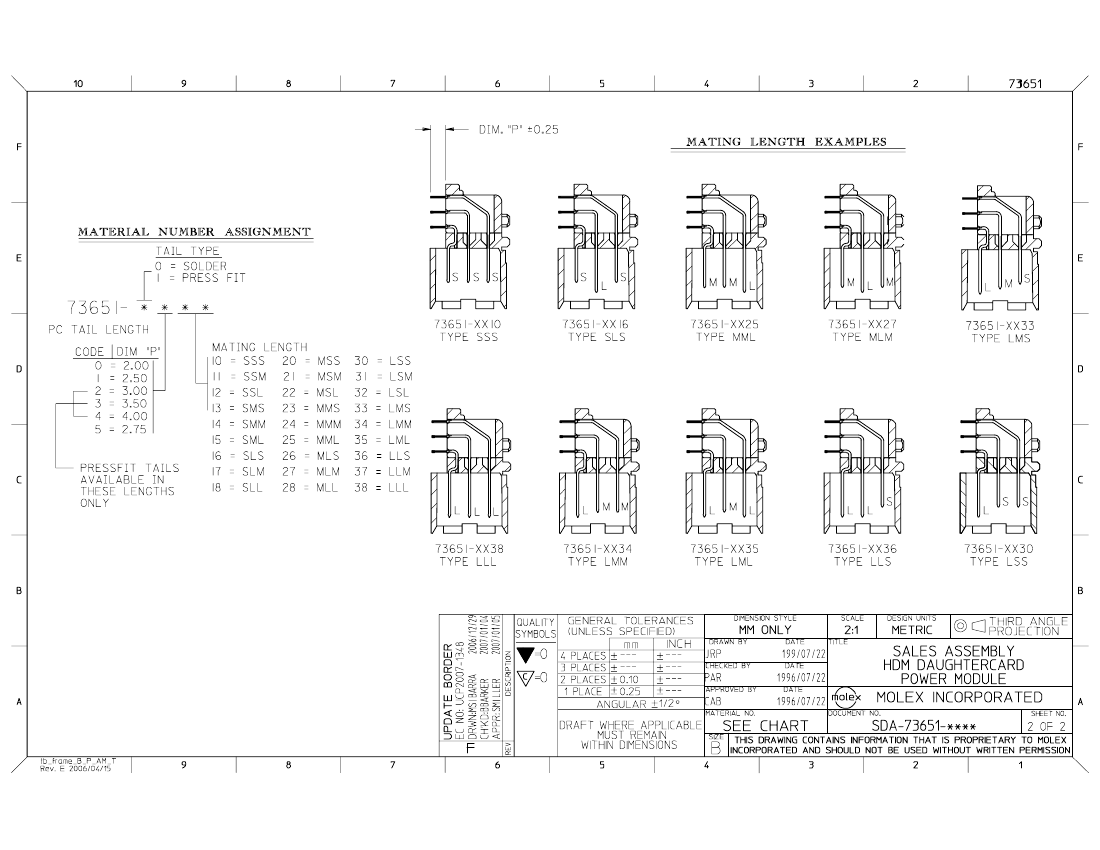

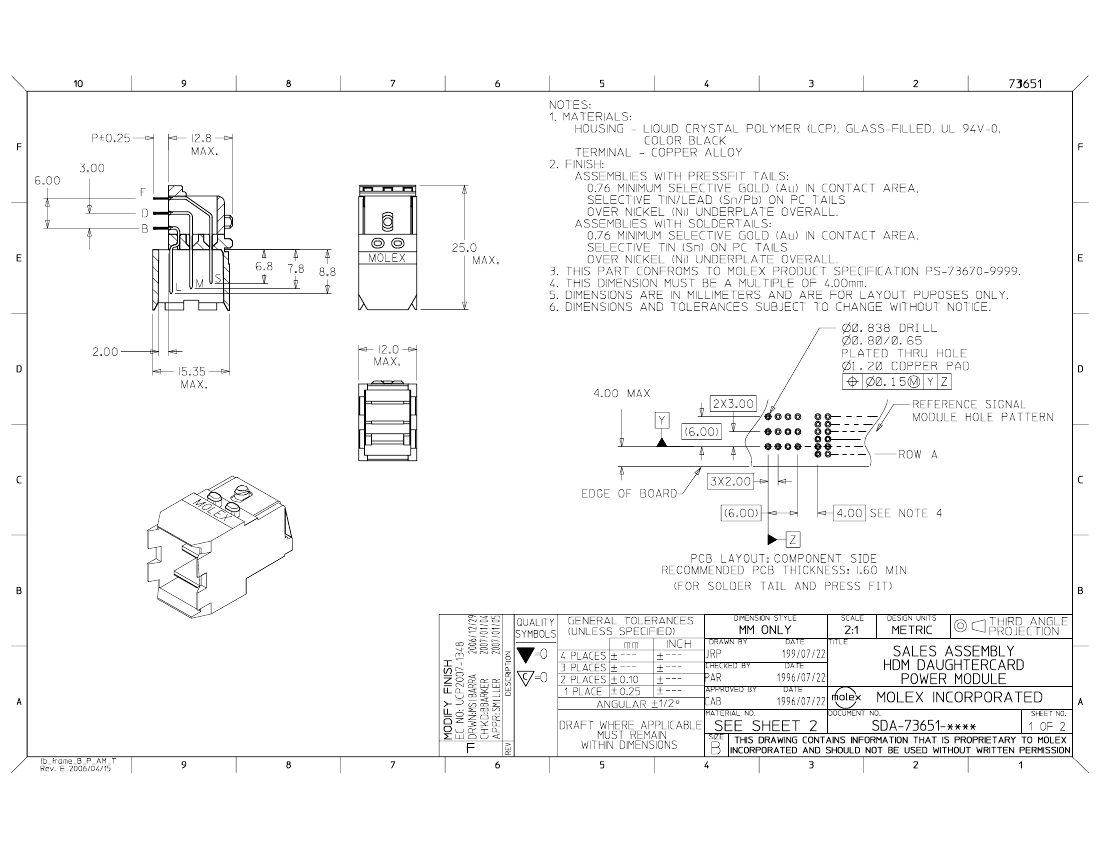

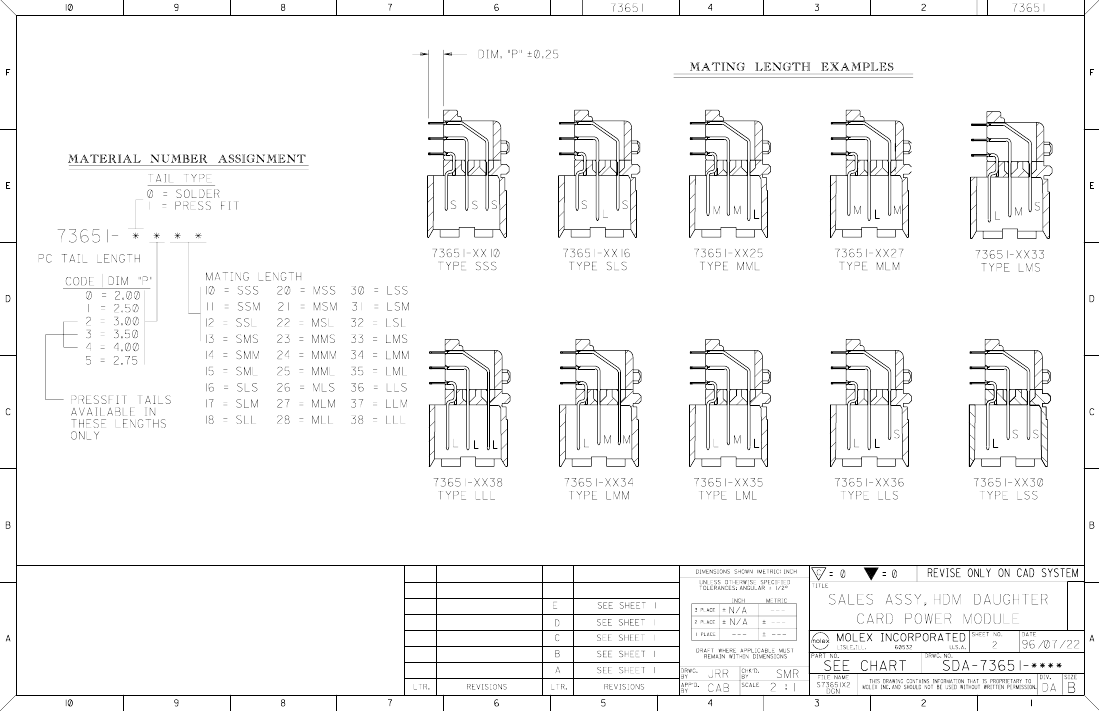

73651-1426 Overview

Rectangular Power Connector, 3 Contact(s), Male, Press Fit Terminal, Receptacle

73651-1426 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
body width0.604 inch
subject depth0.984 inch
body length0.472 inch
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS0P3
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance10 mΩ
Contact styleBLADE PIN-SKT
DIN complianceNO
Dielectric withstand voltage2000VAC V
Durability250 Cycles
IEC complianceNO
maximum insertion force1.2788 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineCSA, UL
reliabilityCOMMERCIAL
Terminal length0.157 inch
Termination typePRESS FIT
Total number of contacts3
