SMP Female Right Angle Connector Solder Attachment For
RG405, PE-SR405AL, PE-SR405FL, PE-SR405FLJ, Up To 8 GHz
TECHNICAL DATA SHEET
PE44772
SMP Female Right Angle Connector Solder Attachment For RG405, PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, Up To 8 GHz
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMP Female
MIL-STD-348A
RG405,PE-SR405AL,PE-SR405FL,PE-SR405FLJ
Solder
Right Angle
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 8
50
1.1:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +155
0.271 [6.88]
0.187 [4.75]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMP Female
Beryllium Copper, Gold
MIL-DTL-45204
Beryllium Copper, Gold
MIL-DTL-45204
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Female Right Angle Connector Solder Attachment For RG405, PE-SR405AL, PE-SR-
405FL, PE-SR405FLJ, Up To 8 GHz PE44772
PE44772 REV
1
SMP Female Right Angle Connector Solder Attachment For
RG405, PE-SR405AL, PE-SR405FL, PE-SR405FLJ, Up To 8 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44772
SMP Female Right Angle Connector Solder Attachment For RG405, PE-SR405AL, PE-SR405FL, PE-SR405FLJ, Up To 8
GHz from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber
optic products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Female Right Angle Connector Solder Attachment For RG405, PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, Up To 8 GHz PE44772
URL:
http://www.pasternack.com/smp-female-standard-rg405-u-pe-sr405al-pe-sr405fl-pe-sr405flj-connector-pe44772-p.
aspx
PE44772 REV
2
SMP Female Right Angle Connector Solder Attachment For RG405,
PE-SR405AL, PE-SR405FL, PE-SR405FLJ, Up To 8 GHz
PE44772

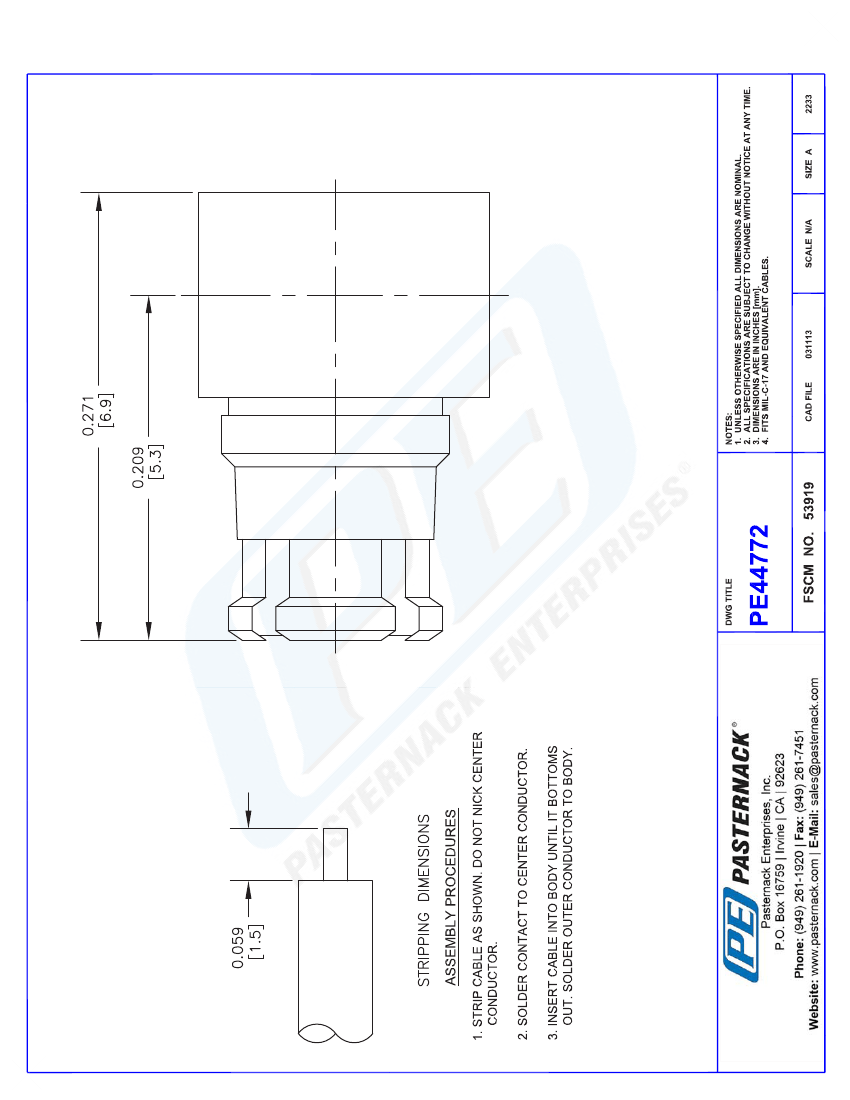

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE44772 REV
3
