PE352-48: DescriptionN Male to N Male High Performance Test Cable 18 Ghz 48 Inch Length Using PE-P141 Coax, RoHS; CategoryThe connector; File Size327KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE352-48 Overview

N Male to N Male High Performance Test Cable 18 Ghz 48 Inch Length Using PE-P141 Coax, RoHS

Preview

Download Datasheet

View All

N Male to N Male High Performance Test Cable 18 Ghz

48 Inch Length Using PE-P141 Coax, RoHS

TECHNICAL DATA SHEET

PE352-48

N Male to N Male High Performance Test Cable 18 Ghz 48 Inch Length Using PE-P141 Coax, RoHS

Configuration

Connector 1

Connector 2

Cable Type

N Male

PE-P141

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

Maximum Insertion Loss

Velocity of Propagation, %

RF Shielding, dB

Maximum Input Power, Watts

Typical Performance by Frequency

Frequency 1

Frequency, GHz

Insertion Loss

Frequency 2

Frequency, GHz

Insertion Loss

Frequency 3

Frequency, GHz

VSWR

Insertion Loss

Electrical Specification Notes:

0.4 dB/ft [ 1.31 dB/m ]

DC to 18

1.35:1

0.86 dB/ft [ 2.82 dB/m ]

110

550

0.6 dB/ft [ 1.97 dB/m ]

1.22:1

0.75 dB/ft [ 2.46 dB/m ]

Short lengths up to 12” long may exhibit VSWR

measurements up to 9% higher.

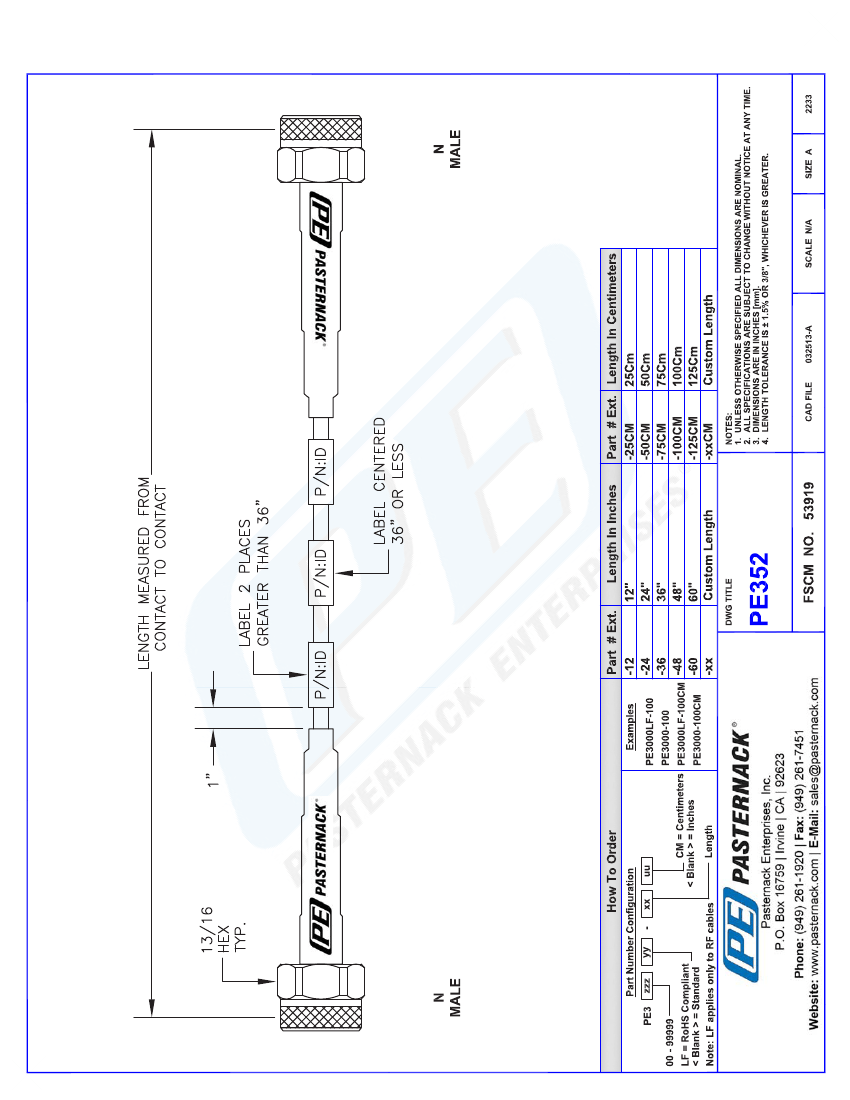

Mechanical Specifications

Cable Assembly

Cable Type

Temperature

Temperature Operating Range, deg C

PE-P141

-55 to +125

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

N Male to N Male High Performance Test Cable 18 Ghz 48 Inch Length Using PE-P141 Coax,

RoHS PE352-48

PE352-48 REV 1.1
