SMA Male to SMA Female Bulkhead Semi-Flexible
Precision Cable Using PE-SR405FL Coax, RoHS
TECHNICAL DATA SHEET
PE39419
Hand Formable SMA Male to SMA Female Bulkhead Semi-Flexible Precision Cable Using PE-SR405FL
Coax, RoHS
Pasternack’s formable cable assemblies are hand formable semi-rigid replacements that are an alternative to costly
preformed assemblies. The formable semi-rigid cable alternatives are dimensionally and electrically similar to their semi-
rigid counterpart and have a tinned-copper-braid outer shield that provides excellent RF shielding. The hand formable
cable assemblies from Pasternack do not require special tooling to shape or reshape the assemblies and can replace
standard semi-rigid versions. The assemblies are available with or without a PVC jacket and are RoHS compliant,
•
Dimensionally and electrically the same as standard, solid outer conductor semi-rigid coax
•
Cable may be formed by hand and does not require special tools to bend
•
May be formed more than once without damaging the outer conductor
•
High RF Shielding >100 dB
•
100% Hi-pot and continuity tested
•
100% VSWR tested to max frequency of assembly
•
Standard and custom lengths ship the same day
Configuration
Connector 1
Connector 2
Cable Type
SMA Male
SMA Female Bulkhead
PE-SR405FL
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Typical Performance by Frequency
Frequency 1
Frequency, MHz
Insertion Loss
Frequency 2
Frequency, GHz
Insertion Loss
Frequency 3
Frequency, GHz
Insertion Loss
Frequency 4
Frequency, GHz
Insertion Loss
1000
0.225 dB/ft [ 0.74 dB/m ]
DC to 18
50
1.5:1
69
100
335
5
0.549 dB/ft [ 1.8 dB/m ]
10
0.812 dB/ft [ 2.66 dB/m ]
18
1.18 dB/ft [ 3.87 dB/m ]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Female Bulkhead Semi-Flexible Precision Cable Using PE-SR405FL Coax,
RoHS PE39419
PE39419 REV
1
SMA Male to SMA Female Bulkhead Semi-Flexible
Precision Cable Using PE-SR405FL Coax, RoHS
TECHNICAL DATA SHEET

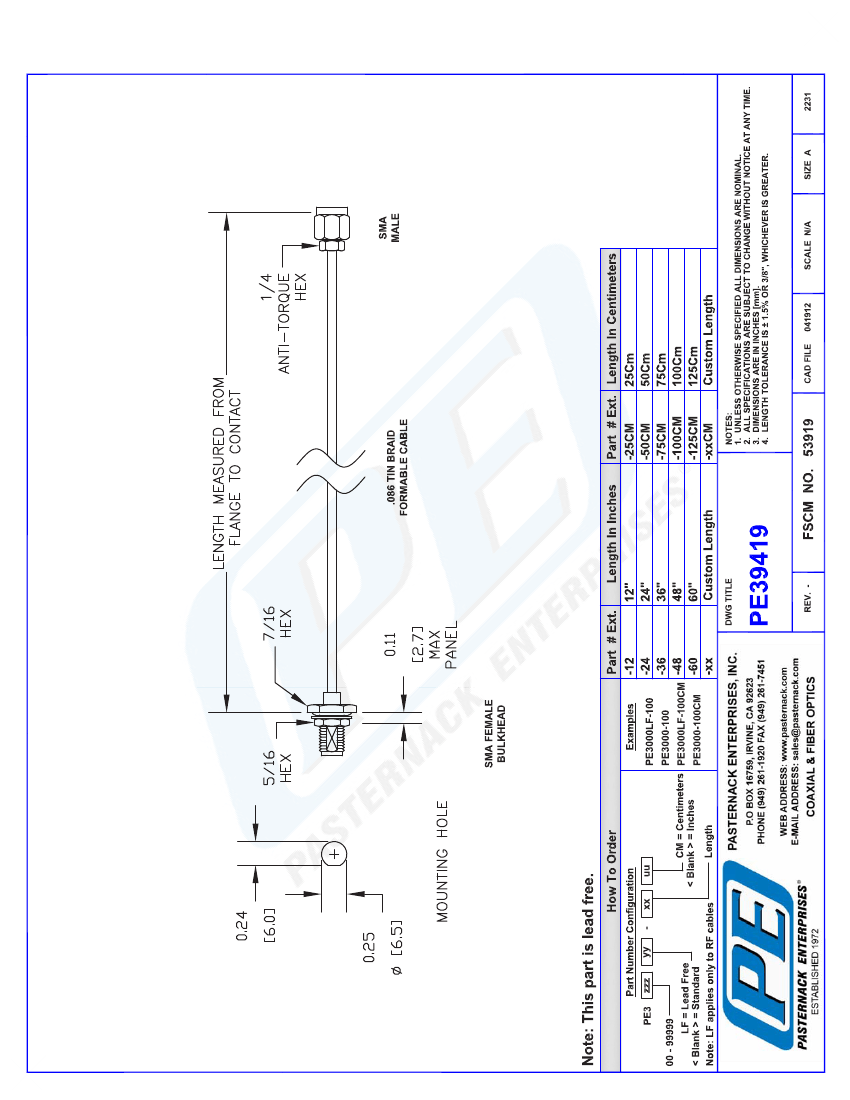

Mechanical Specifications
Cable Assembly
Cable Type
Diameter, in [mm]
.
PE39419
PE-SR405FL
0.086 [2.18]
0.013 [5.9]
0.37 [9.4]
Weight, lbs [g]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Solid
Copper Clad Steel, Silver
1
PTFE
Connector 1
Type
Configuration
SMA Male
Straight
Connector 2
Type
Configuration
Mount Method
SMA Female Bulkhead
Straight
Bulkhead
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Male to SMA Female Bulkhead Semi-Flexible Precision Cable Using PE-SR405FL Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Female Bulkhead Semi-Flexible Precision Cable Using PE-SR405FL Coax,
RoHS PE39419
