2N3906-Y: DescriptionSmall Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, ROHS COMPLIANT PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size379KB，3 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2N3906-Y Overview

Small Signal Bipolar Transistor, 0.2A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-92, ROHS COMPLIANT PACKAGE-3

2N3906-Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

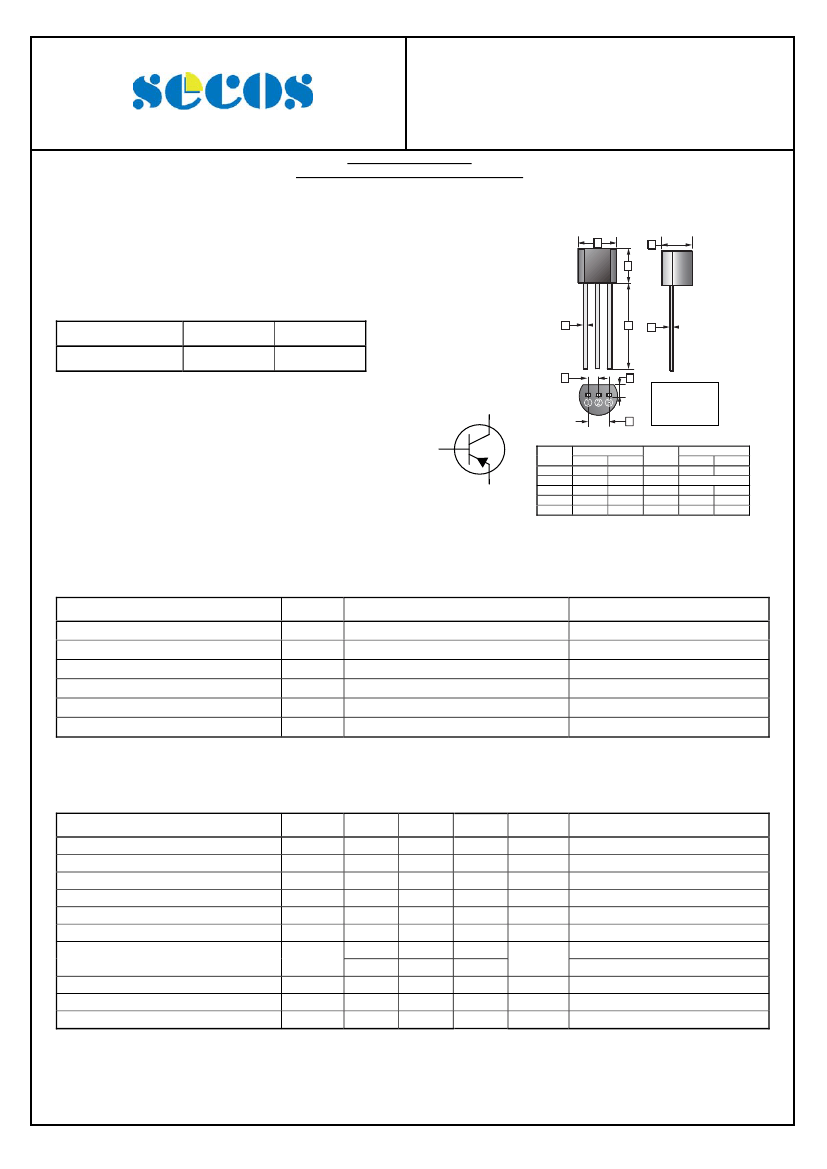

2N3906

Elektronische Bauelemente

-0.2A , -40V

PNP General Purpose Transistor

RoHS Compliant Product

A suffix of “-C” specifies halogen and lead free

FEATURES



TO-92

A

B

D

Power Dissipation P

CM

: 625mW (Ta=25°C)

Collector Current I

CM

: -200mA

Collector – Base Voltage V

(BR)CBO

: -40V

CLASSIFICATION OF h

FE

Product-Rank

Range

2N3906-O

100~200

2N3906-Y

200~300

G

H

E

C

F

Collector



REF.

A

B

C

D

E

J

Emitter

Base

Collector



Base



Emitter

Millimeter

Min.

Max.

4.40

4.70

4.30

4.70

12.70

-

3.30

3.81

0.36

0.56

REF.

F

G

H

J

K

Millimeter

Min.

Max.

0.30

0.51

1.27 TYP.

1.10

1.40

2.42

2.66

0.36

0.76

ABSOLUTE MAXIMUM RATINGS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector - Base Voltage

Collector - Emitter Voltage

Emitter - Base Voltage

Collector Current -Continuous

Collector Power Dissipation

Junction, Storage Temperature

Symbol

V

CBO

V

CEO

V

EBO

I

C

P

C

T

J

, T

STG

Ratings

-40

-5

-0.2

625

150, -55~150

Unit

V

A

mW

°C

ELECTRICAL CHARACTERISTICS

(T

A

= 25°C unless otherwise specified)

Parameter

Collector-Base Breakdown Voltage

Collector-Emitter Breakdown Voltage

Emitter - Base Breakdown Voltage

Collector Cut-Off Current

Emitter Cut-Off Current

DC Current Gain

Collector-Emitter Saturation Voltage

Base-Emitter Saturation Voltage

Transition Frequency

Symbol

V

(BR)CBO

V

(BR)CEO

V

(BR)EBO

I

CBO

I

CEX

I

EBO

h

FE

V

CE(sat)

V

BE(sat)

f

T

Min.

-40

-5

-

100

60

-

250

Typ.

-

Max.

-

-0.1

-50

-0.1

300

-

-0.4

-0.95

-

Unit

V

μA

nA

μA

Test Conditions

I

C

= -10μA, I

E

=0

I

C

= -1mA, I

B

=0

I

E

= -100μA, I

C

=0

V

CB

= -40V, I

E

=0

V

CE

= -30V, V

BE(off)

= -3V

V

EB

= -5V, I

C

=0

V

CE

= -1V, I

C

= -10mA

V

CE

= -1V, I

C

= -50mA

I

C

= -50mA, I

B

= -5mA

I

C

= -50mA, I

B

= -5mA

V

CE

= -20V, I

C

= -10mA, f=100MHz

V

MHz

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

11-Jan-2012 Rev.C

Page 1 of 3
