DPP480-24-1-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DPP480-24-1-B

DPP480-24-1-B: DescriptionAC-DC Power Factor Correction Module, 480W,; CategoryPower/power management The power supply circuit; File Size392KB，2 Pages; ManufacturerTDK-LAMBDA

Download Datasheet Parametric Compare View All

DPP480-24-1-B Overview

AC-DC Power Factor Correction Module, 480W,

DPP480-24-1-B Parametric

Parameter Name	Attribute value
Maker	TDK-LAMBDA
package instruction	,
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE
Certification	IEC, UL
Efficiency (main output)	89%
high	125 mm
Maximum input voltage	264 V
Minimum input voltage	90 V
length	175 mm
Maximum grid adjustment rate	1%
Maximum load regulation	0.5%
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output current	20 A
Nominal output voltage	24 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Ripple voltage (main output)	0.03535 Vrms
Maximum total power output	480 W
width	116 mm

Preview

Download Datasheet

View All

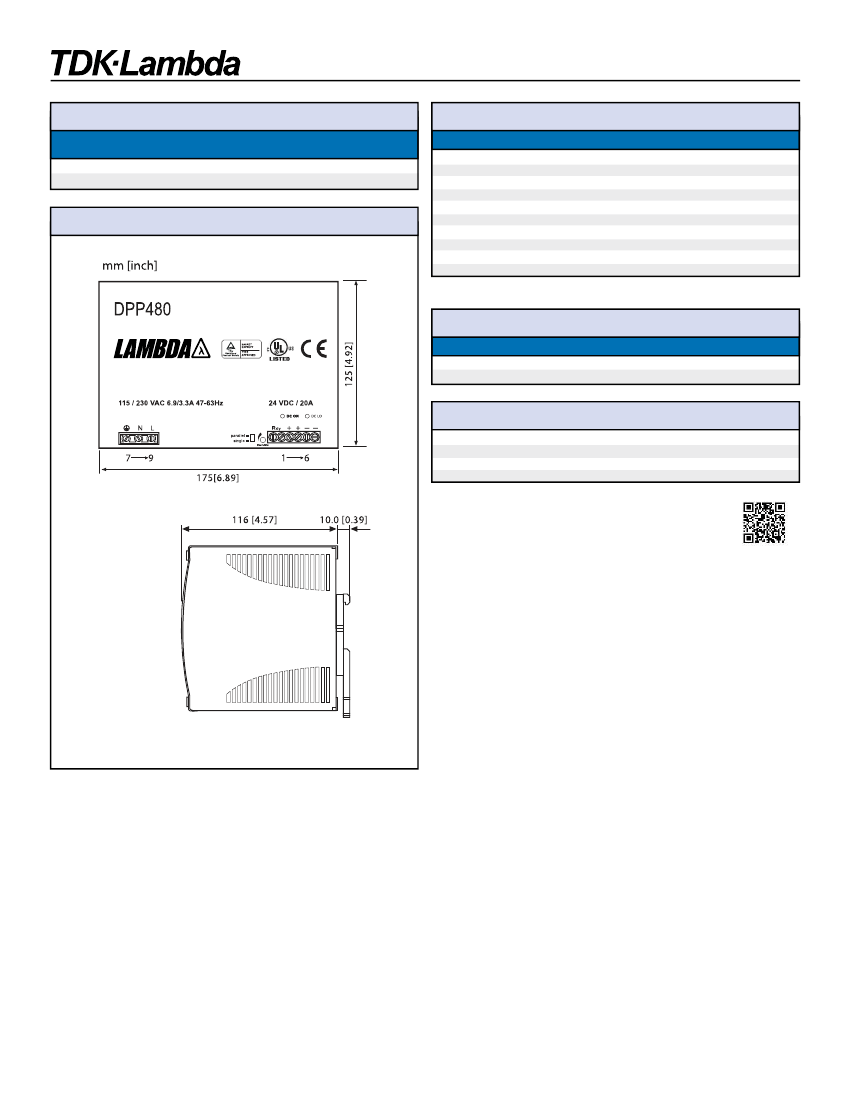

DPP480 Series

480W Single Output DIN Rail Mount Power Supplies

Features



Low Cost



24V or 48V Outputs



Wide Range AC Input



Active PFC



Parallel Function Switch



-40 to +71°C Operation



Convection Cooled

Key Market Segments & Applications

Speciﬁcations

Model

AC Input Voltage range

VAC

Input Frequency

DC Input Voltage range

VDC

Inrush Current

Power Factor

Input Current

Output Voltage Accuracy

Line Regulation

Load Regulation

Ripple and Noise (20MHz BW) mV

Overcurrent Protection (Typ)

Overvoltage Protection

Overtemperature Protection

Hold Up Time (115VAC input) ms

Parallel operation

LED Indicators

DC Good Relay (24V model only)

Operating Temperature

°C

Storage Temperature

Operating Humidity

Cooling

(1)

Withstand Voltage

Isolation Resistance

Vibration (Operating)

Shock (Operating)

Safety Agency Approvals

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (WxHxD)

Case material

Warranty

°C

yrs

DPP480-xx-1

90 - 264VAC, single phase

47 - 63Hz

120 - 370VDC*

25 / 50A (115 / 230VAC)

Meets EN61000-3-2 Class A

6.9 / 3.3A (115 / 230VAC)

-0, +1% of Nominal

±0.5%

±1% (±5% when set in parallel mode)

100mV

110 - 140%

See model selector

> 35ms

Set in parallel (droop) mode - maximum of 3

Green LED = On, Red LED = DC Output Low

0.3A rated normally open relay contacts, closes when output is above 17.6 - 19.4V

-40 to +71°C

(Derate linearly 2.5%/°C from 56 to 71°C)

-40 to +85°C

20 - 95% RH (non condensing)

Convection

Input to Output 3kVAC for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

IEC 60068-2-6 (Mounting by rail: Random wave, 10-500 Hz, 2G, ea. along X, Y, Z axes 10 min/cycle, 60 min)

IEC 60068-2-27 (Half sine wave, 4G, 22ms, 3 axes, 6 Faces, 3 times for each face)

UL508 Listed, UL60950-1, EN60950-1, CE

EN55022 class B

IEC 61000-4-2, -3, 4, -5, -6. -8, -11

1800g

6.89 x 4.92 x 4.57

Metal

Three years

(1) Recommend 1” clearance on all sides

*Safety certiﬁed for AC input only

1-800-526-2324 • www.us.tdk-lambda.com/lp/

123

Disclaimer: us.tdk-lambda.com/lp/legal.htm

DPP480-24-1-B Related Products

	DPP480-24-1-B	DPP480-48-1-B
Description	AC-DC Power Factor Correction Module, 480W,	AC-DC Power Factor Correction Module, 480W,
Maker	TDK-LAMBDA	TDK-LAMBDA
Reach Compliance Code	compliant	compliant
Analog Integrated Circuits - Other Types	AC-DC POWER FACTOR CORRECTION MODULE	AC-DC POWER FACTOR CORRECTION MODULE
Certification	IEC, UL	IEC, UL
Efficiency (main output)	89%	90%
high	125 mm	125 mm
Maximum input voltage	264 V	264 V
Minimum input voltage	90 V	90 V
length	175 mm	175 mm
Maximum grid adjustment rate	1%	1%
Maximum load regulation	0.5%	0.5%
Maximum operating temperature	71 °C	71 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	20 A	10 A
Nominal output voltage	24 V	48 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Ripple voltage (main output)	0.03535 Vrms	0.03535 Vrms
Maximum total power output	480 W	480 W
