TMS-150-01-G-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TMS-150-01-G-S

TMS-150-01-G-S: Description50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size774KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TMS-150-01-G-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TMS-150-01-G-S	-	-	View	Buy Now

TMS-150-01-G-S Overview

50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

TMS-150-01-G-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Factory Lead Time	2 weeks
Samacsys Descripti	50 Position, Single-Row .050" x .100" Micro Terminal Stri
body width	0.196 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TMS
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

F-213

HTMS–110–03–L–D–RA

HTMS–107–01–G–S

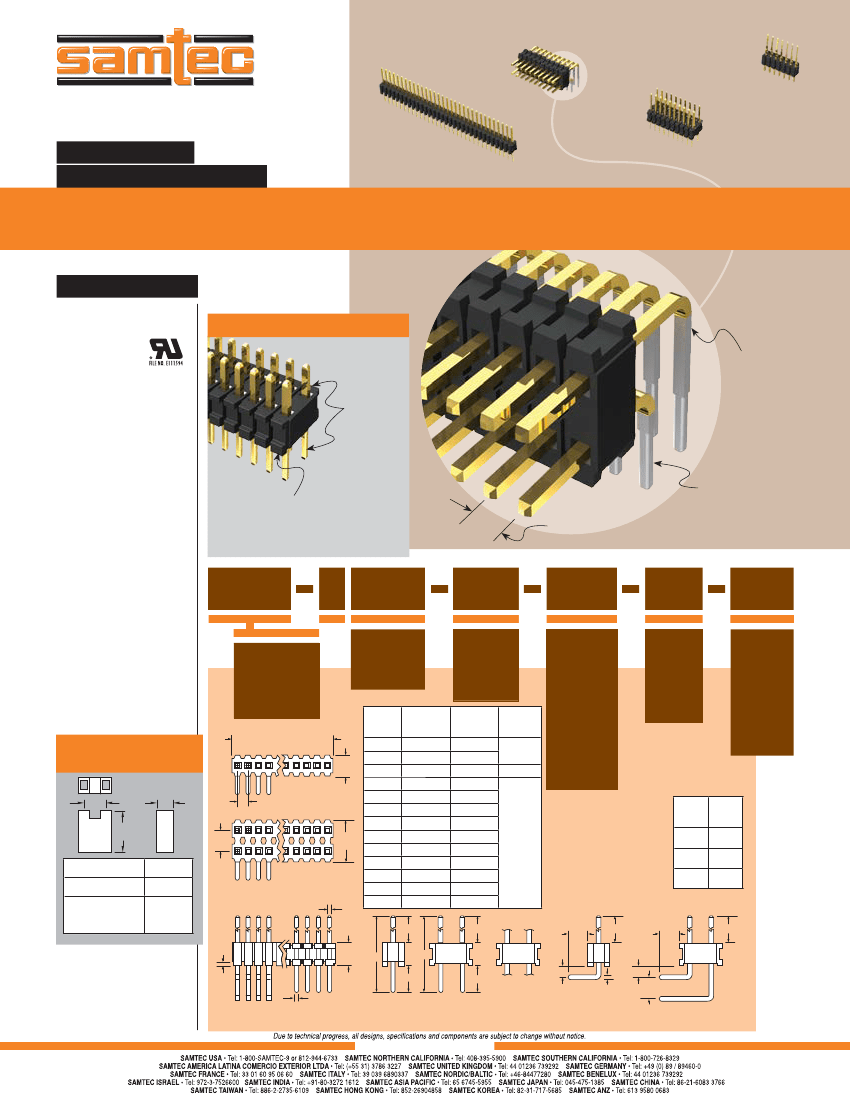

(1,27 mm) .050"

TMS, HTMS, SNM SERIES

TMS–132–51–G–S

TMS–110–02–G–D

THROUGH-HOLE MICRO HEADER

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?TMS

or www.samtec.com?HTMS

Insulator Material:

Black Liquid Crystal

Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

1A per contact

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

Important Note:

Style -02 does not mate

with SMS Series.

Mates with:

SMS, SLM, RSM

ALSO AVAILABLE

Position

anywhere

in the body

with

(3,05 mm)

.120"

minimum

tail

Standard or

high temp body

For variable post micro terminal

strips see www.samtec.com?MTMS

or www.samtec.com?HMTMS

(1,27 mm x 2,54 mm)

.050" x .100" pitch

Choice of

Through-hole

and Right Angle.

See FTR Series

for Surface Mount

Thirteen

terminal

styles

SNM

For complete speciﬁcations

see www.samtec.com?SNM

Same as HTMS except:

Insulator Material:

Black Glass Filled Polyester

Contact Resistance:

10 mΩ

Lead Size accepted:

(0,46 mm) .018" SQ

Insertion Depth:

(3,43 mm) .135" minimum

Max Processing Temp:

Not recommended for IR/VP

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

(3,05) .120

PLATING

OPTION

ROW

OPTION

TMS

= Standard

Processing:

Lead-Free Solderable:

Yes

HTMS

= High Temp

(1,27) .050 x No. of Positions

thru

T/H

LEAD

STYLE

–01

–02

–21

–51

–52

–53

–54

–55

–56

–57

–58

–59

–60

–L

= 10µ"

(0,25 µm)

Gold on post,

Matte Tin

on tail

–S

= Single

Row

–RA

= Right

Angle

–D

= Double

Row

–“XXX”

= Polarized

Position

(Specify

position of

omitted pin)

–G

= 10µ"

(0,25 µm)

Gold on post,

Gold ﬂash

on tail

MICRO SHUNT

SNM SERIES

(2,54)

.100

(1,27)

.050

(11,43) .450 (5,84) .230

(8,13) .320 (2,54) .100

(10,41) .410 (4,83) .190

(10,80) .425 (5,21) .205

(12,83) .505 (7,24) .285

(14,10) .555 (8,51) .335

(15,49) .610 (9,91) .390

(15,88) .625 (10,29) .405

(16,51) .650 (10,92) .430

(17,91) .705 (12,32) .485

(19,18) .755 (13,59) .535

(20,96) .825 (15,37) .605

(2,48)

.098

(12,83) .505 (5,84) .230 (4,45) .175

(1,27) .050 TYP

100

Note:

Other Gold plating

options available.

Contact Samtec.

(3,05) .120

(3,30)

.130

LEAD

STYLE

–01

–02

–03

(5,84)

.230

(2,54)

.100

(3,18)

.125

(2,54)

.100

(4,98)

.196

Part No.

SNM–100–BK–T

Plating

Tin

10µ"

SNM–100–BK–G

(0,25 µm)

Gold

(0,46)

.018

(3,56)

.140

(1,52)

.060

(3,56)

.140

(2,54)

.100

(0,51)

.020

(0,51) .020 DIA

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

SINGLE

ROW

DOUBLE

ROW

HTMS

–D

Body

Design

(1,52)

.060

(0,51) .020

DIA

(2,54)

.100

WWW.SAMTEC.COM
