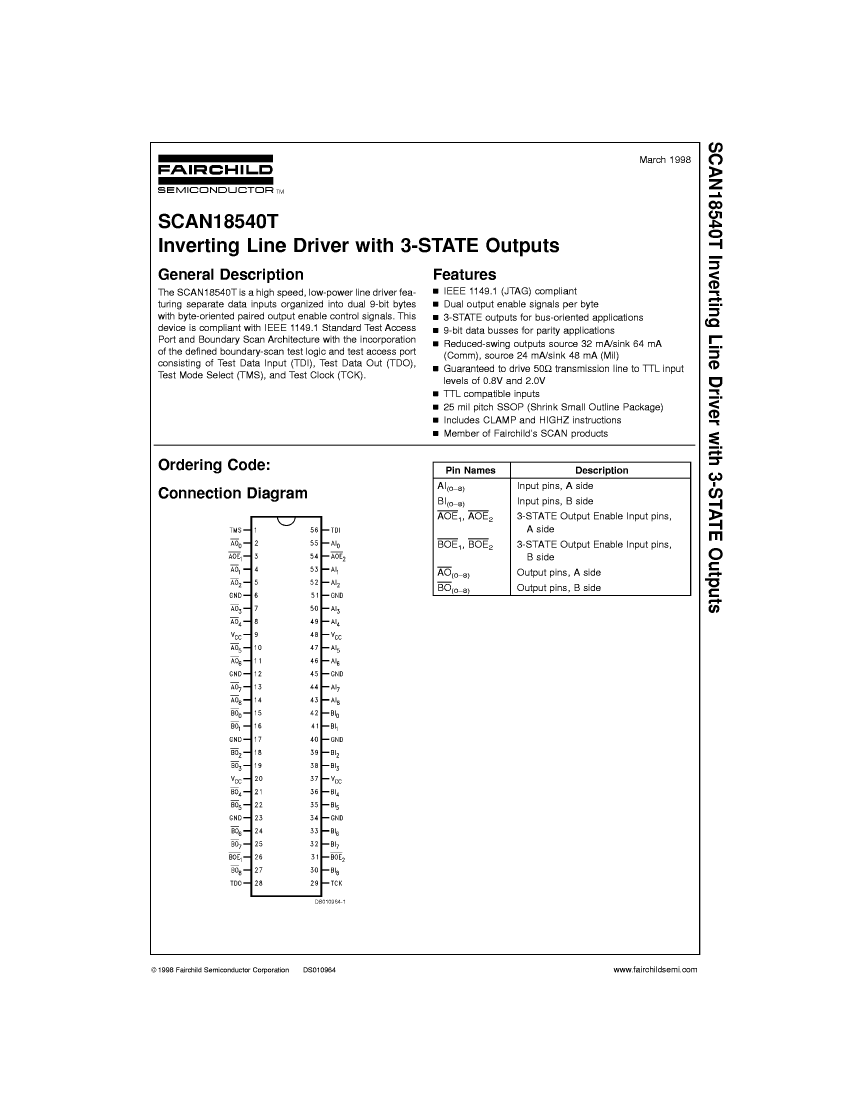

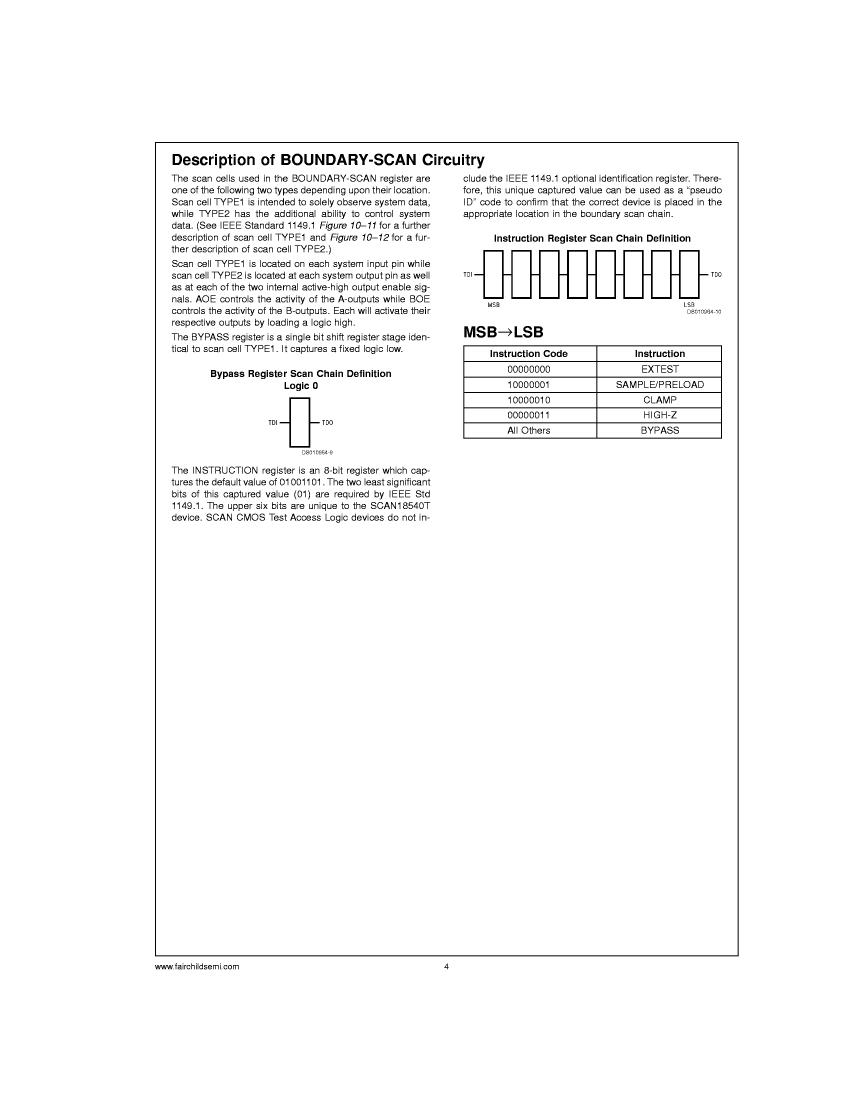

Boundary Scan Bus Driver, SCAN/JTAG/3J Series, 2-Func, 9-Bit, Inverted Output, CMOS, CDFP56, 0.025 INCH PITCH, CERAMIC, FP-56
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | DFP |
| package instruction | 0.025 INCH PITCH, CERAMIC, FP-56 |
| Contacts | 56 |
| Reach Compliance Code | compliant |
| Control type | INDEPENDENT CONTROL |
| Counting direction | UNIDIRECTIONAL |
| series | SCAN/JTAG/3J |
| JESD-30 code | R-GDFP-F56 |
| JESD-609 code | e0 |
| Logic integrated circuit type | BOUNDARY SCAN BUS DRIVER |
| MaximumI(ol) | 0.048 A |
| Number of digits | 9 |
| Number of functions | 2 |
| Number of ports | 2 |
| Number of terminals | 56 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL56,.4,25 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 10.5 ns |
| propagation delay (tpd) | 16 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 2.54 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| translate | N/A |
| width | 9.65 mm |
| SCAN18540TFMQB | 5962-9312701MXA | 5962-9312701MXX | |
|---|---|---|---|
| Description | Boundary Scan Bus Driver, SCAN/JTAG/3J Series, 2-Func, 9-Bit, Inverted Output, CMOS, CDFP56, 0.025 INCH PITCH, CERAMIC, FP-56 | Boundary Scan Bus Driver, SCAN/JTAG/3J Series, 2-Func, 9-Bit, Inverted Output, CMOS, CDFP56, CERAMIC, FP-56 | Boundary Scan Bus Driver, SCAN/JTAG/3J Series, 2-Func, 9-Bit, Inverted Output, CMOS, CDFP56, CERAMIC, FP-56 |
| Parts packaging code | DFP | DFP | DFP |
| package instruction | 0.025 INCH PITCH, CERAMIC, FP-56 | DFP, | DFP, |
| Contacts | 56 | 56 | 56 |
| Reach Compliance Code | compliant | unknown | unknown |
| series | SCAN/JTAG/3J | SCAN/JTAG/3J | SCAN/JTAG/3J |
| JESD-30 code | R-GDFP-F56 | R-GDFP-F56 | R-GDFP-F56 |
| Logic integrated circuit type | BOUNDARY SCAN BUS DRIVER | BOUNDARY SCAN BUS DRIVER | BOUNDARY SCAN BUS DRIVER |
| Number of digits | 9 | 9 | 9 |
| Number of functions | 2 | 2 | 2 |
| Number of ports | 2 | 2 | 2 |
| Number of terminals | 56 | 56 | 56 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP | DFP | DFP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | FLATPACK | FLATPACK |
| propagation delay (tpd) | 16 ns | 16 ns | 16 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | MIL-STD-883 | MIL-STD-883 |
| Maximum seat height | 2.54 mm | 2.54 mm | 2.54 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES |
| technology | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | FLAT | FLAT |
| Terminal pitch | 0.635 mm | 0.635 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 9.65 mm | 9.65 mm | 9.65 mm |
| JESD-609 code | e0 | e0 | - |
| Terminal surface | Tin/Lead (Sn/Pb) | TIN LEAD | - |
| Base Number Matches | - | 1 | 1 |
