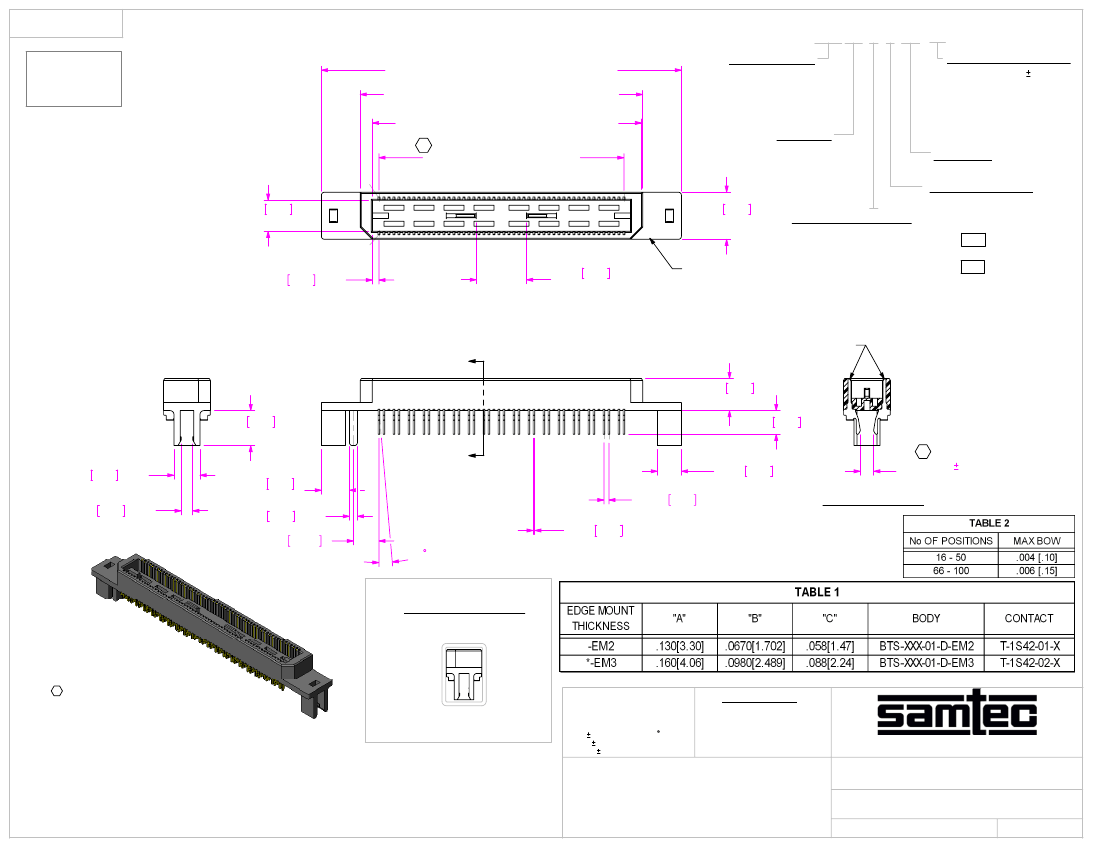

BTS-016-01-H-D-DP-EM2

Description
Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.019 inch Pitch, Surface Mount Terminal, Locking,
CategoryThe connector    The connector
File Size379KB,2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric View All

BTS-016-01-H-D-DP-EM2 Overview

Board Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, 0.019 inch Pitch, Surface Mount Terminal, Locking,

BTS-016-01-H-D-DP-EM2 Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codecompliant
Board mount optionsEDGE MOUNT
body width0.235 inch
subject depth0.335 inch
body length1.175 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.019 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)1.8 A
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts32
