The R2.5 Series Circular Connectors are used
for signal transmission for junctions for BUS-
systems and for controls. This new generation
of connectors is available in the traditional
screwing or a push pull version. The patented
insulation body fits all housing designs and can
fit both pins and sockets in all the termination
methods.
# of contacts: 8+1, 9, 12, 17
415
TECHNICAL DATA
Inserts:
Number of Contacts:
Rated Voltage:
8+1, 9, 12, 17
VDE: 8+1 contacts: 160
9 contacts: 160
12 contacts: 100 (solder),160 (crimp)
17 contacts: 40 (solder), 125 (crimp)
UL:
250V, AC
CSA: 250V, AC
VDE: 9 (1mm contacts); 25 (2mm contacts)
UL:
7.5 (1mm contacts); 22 (2mm contacts)
CSA: 7.5 (1mm contacts); 22 (2mm contacts)
8+1 contacts: 2.5; 9 contacts: 2.5; 12 contacts: 1.5 (solder), 2.5 (crimp); 17 contacts:1.5
3
-40ºC to 125ºC
IP 67 mated, DIN 40050
Crimp: 1mm contacts: 0.6 - 1.0mm2 (AWG 18 UL)
2mm contacts: 0.5 - 2.5mm2 (AWG 20 - 14)
Solder: 2.5mm2
Solder pin Ø 1mm; 7.5 length
<5
500 (higher mating cycles depends on the application)
Die cast zinc, nickel plated
PBT according to UL 94 V-O
Viton/ H-NBR
PA 6.6
Copper alloy, gold plated
Rated Current:
3
Test Voltage: (kV AC)
Pollution Level:
Temperature Range:
Protection Class:
Wire Gauge:
Contact Resistance:
Mating Cycles:
Material:
Housing:
Insulation Body:
Gaskets:
Clamp ring:
Contacts:
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
416

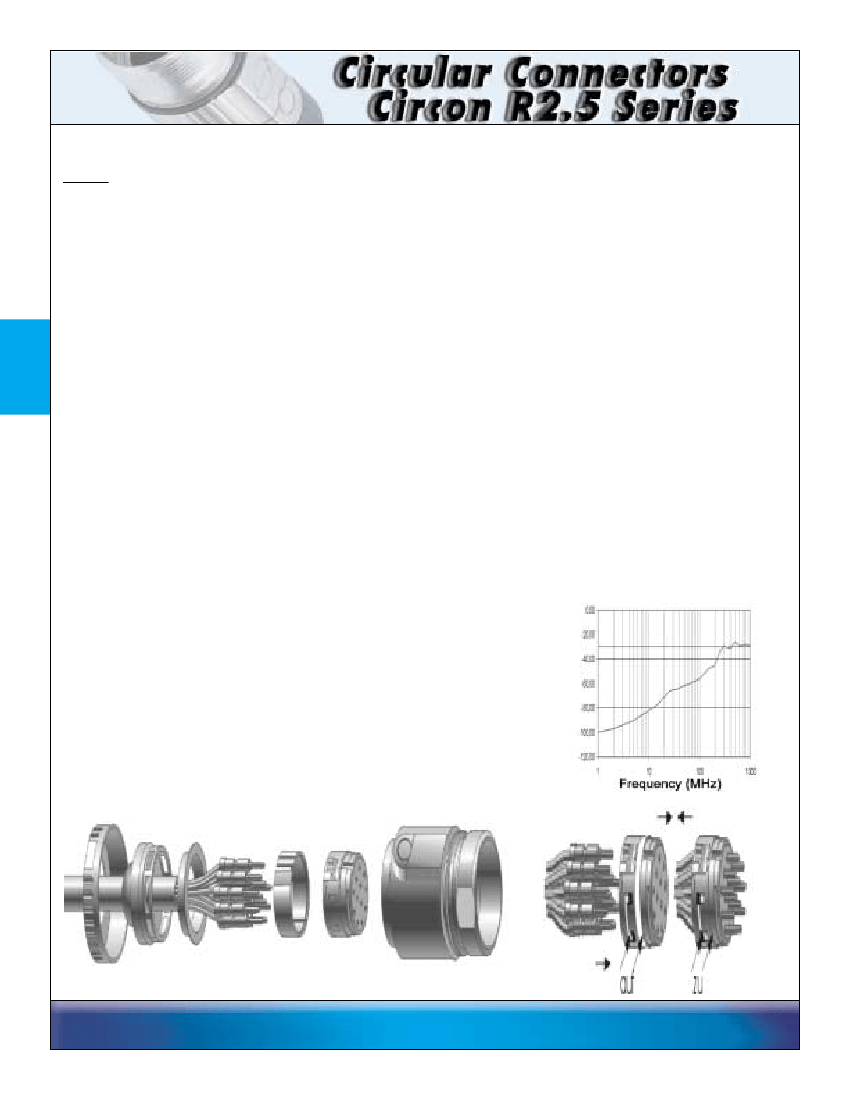

Shield Absorption
R2.5 CONNECTORS
PLASTIC CLAMP RING
METAL CLAMP RING

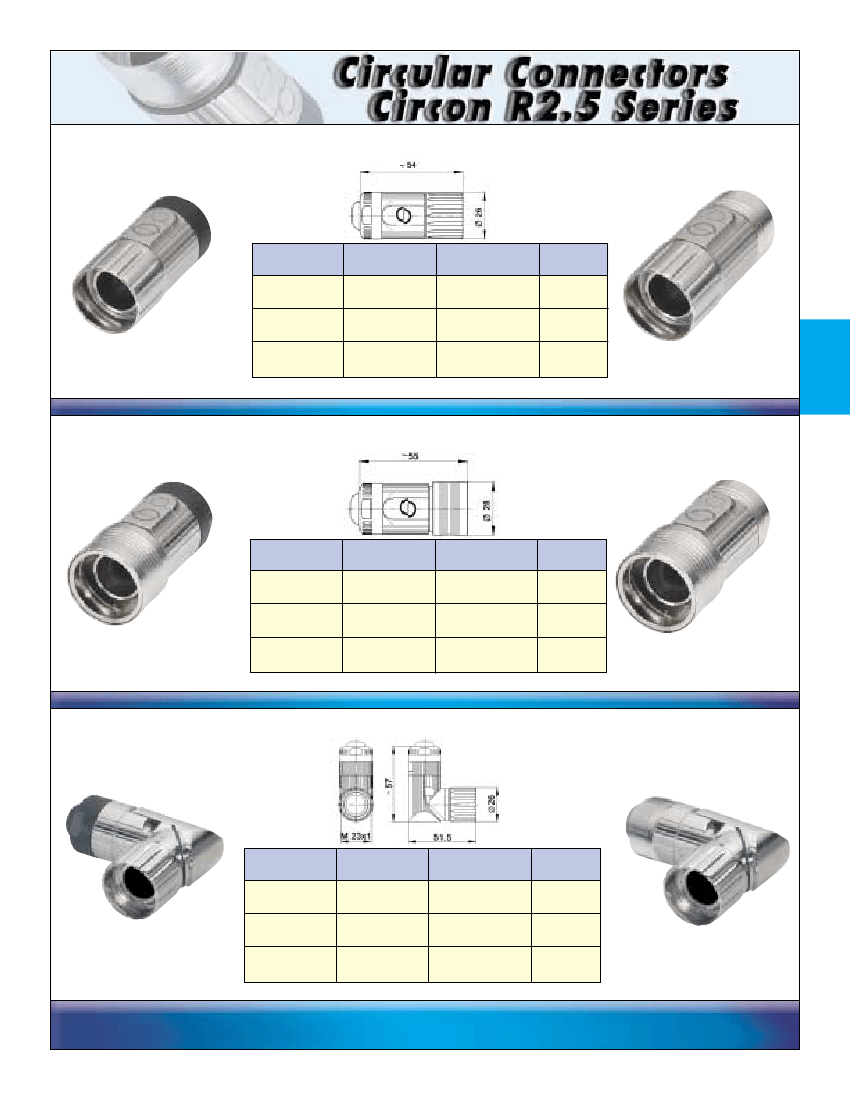

These connectors mate
with the connectors on
the next two pages.
Metal Clamp
Cable
Standard
Plastic
Ring
Diameter
Pack
Clamp Ring
72.041000
5.5 - 10.5 mm
5
72.040000
72.041010
5.5 - 10.5 mm
20
72.040010
72.041100
9 - 12 mm
5
72.040100
72.041110
9 - 12 mm
20
72.040110
72.041700
7.5 - 14 mm
5
-
72.041710
7.5 - 14 mm
20
-
All accessories except dust cap can be added.
These connectors can be
male or female.
3
R2.5 PUSH PULL CONNECTOR
PLASTIC CLAMP RING
METAL CLAMP RING
These connectors mate
with the connectors on
the next two pages.
Metal Clamp
Cable
Standard
Plastic
Ring
Diameter
Pack
Clamp Ring
72.046000
5.5 - 10.5 mm
5
72.045000
72.046010
5.5 - 10.5 mm
20
72.045010
72.046100
9 - 12 mm
5
72.045100
72.046110
9 - 12 mm
20
72.045110
72.046700
7.5 - 14 mm
5
-
72.046710
7.5 - 14 mm
20
-
All accessories except dust cap can be added.
These connectors can be
male or female.
R2.5 90º CONNECTOR
PLASTIC CLAMP RING
METAL CLAMP RING
These connectors mate
with the connectors on
the next two pages.
Metal Clamp
Cable
Standard
Plastic
Ring
Diameter
Pack
Clamp Ring
72.050500
5.5 - 10.5 mm
5
72.050000
72.050510
5.5 - 10.5 mm
20
72.050010
72.050600
9 - 12 mm
5
72.050100
72.050610
9 - 12 mm
20
72.050110
72.050700
7.5 - 14 mm
5
-
72.050710
7.5 - 14 mm
20
-
All accessories except dust cap can be added.
These connectors can be
male or female.
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
417
R2.5 COUPLING CONNECTORS
PLASTIC CLAMP RING
METAL CLAMP RING
3
The accessories which can
be added include: dust cap,
clamp rings, shield ring,
metal flange
Metal Clamp
Plastic
Ring
Clamp Ring
72.061000
72.060000
72.061010
72.060010
72.061100
72.060100
72.061110
72.060110
72.061700
-
72.061710
-
Cable
Standard
Diameter
Pack
5.5 - 10.5 mm
5
5.5 - 10.5 mm
20
9 - 12 mm
5
9 - 12 mm
20
7.5 - 14 mm
5
7.5 - 14 mm
20
These connectors can be
male or female.

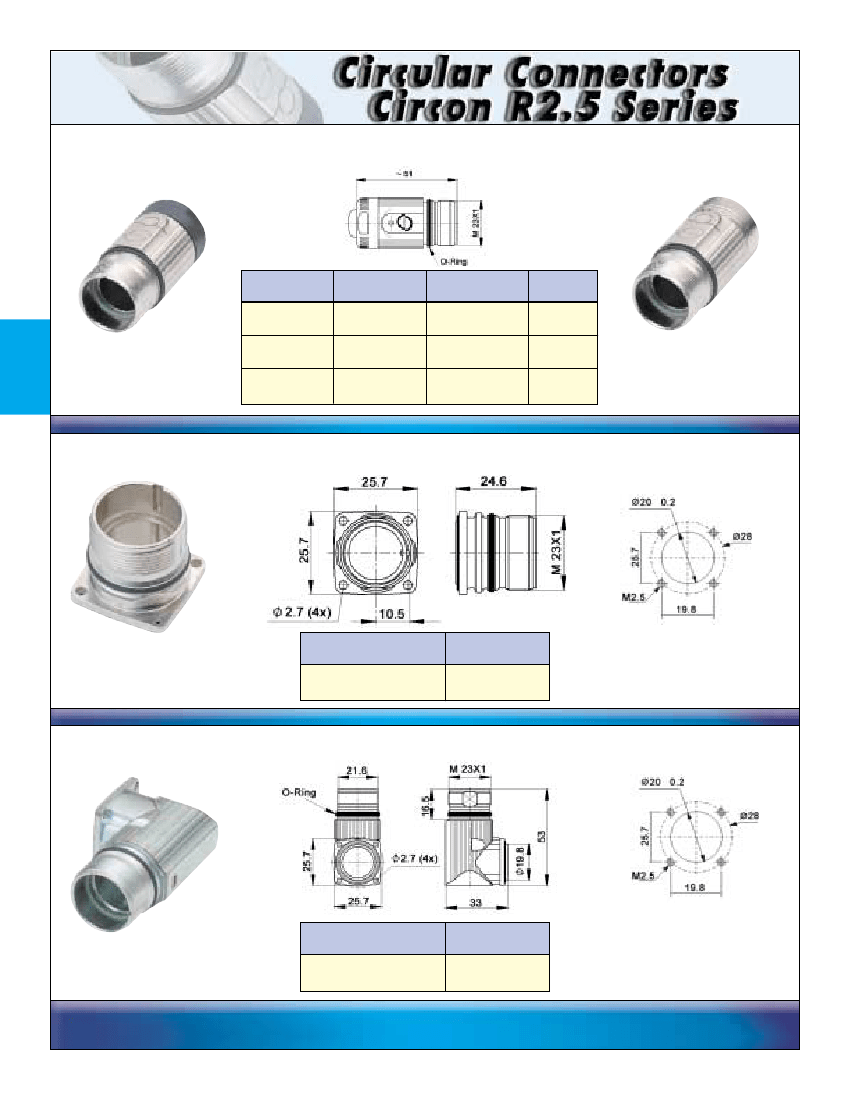

R2.5 PANEL MOUNT SOCKET
Dust cap is the only accessory
which can be added
Part Number
72.000000
72.000010
Standard
Pack
5
20
These connectors can be
male or female.
R2.5 ANGLED PANEL MOUNT SOCKET
Dust cap is the only accessory
which can be added
Part Number
72.020000
72.020010
Standard
Pack
5
20
These connectors can be
male or female.
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
418

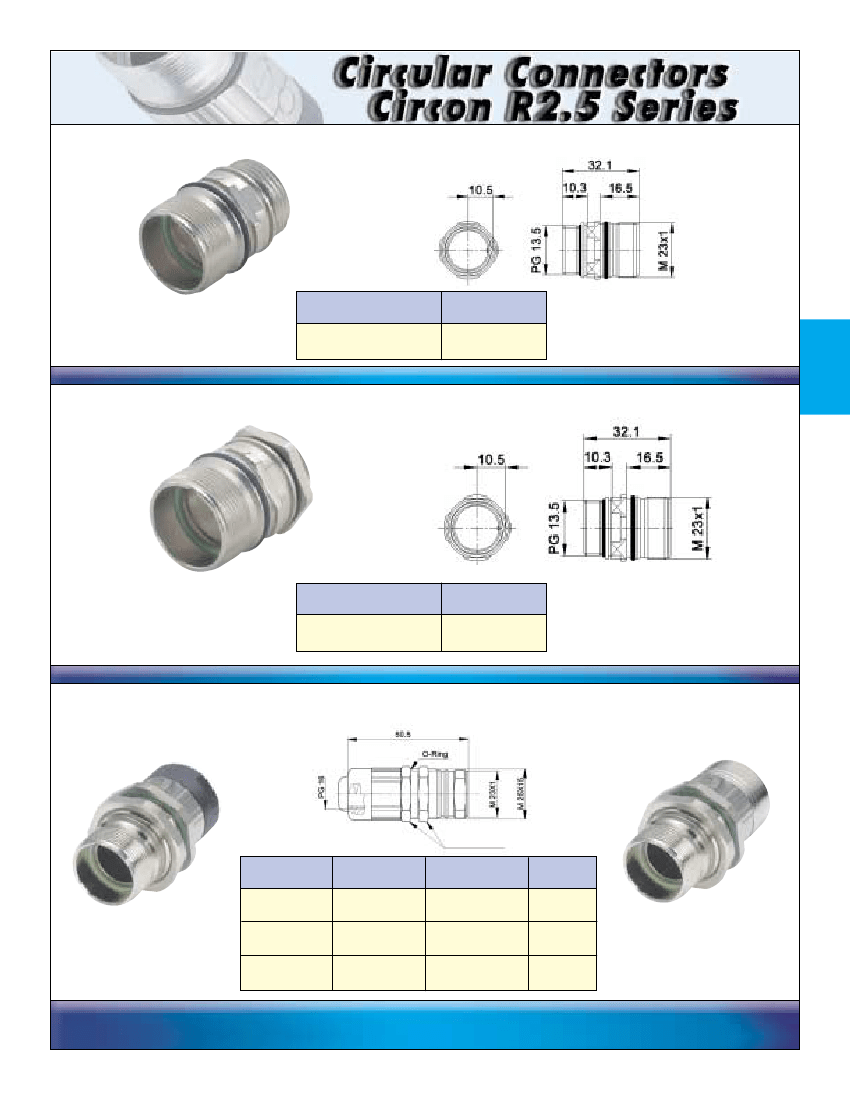

R2.5 PANEL MOUNT SOCKET: PG 13.5
Dust cap is the only accessory
which can be added
Part Number
72.010000
72.010010
Standard
Pack
5
20
These connectors can be
male or female.
3
R2.5 PANEL MOUNT SOCKET: PG 13.5 WITH LOCKING NUT
Dust cap is the only accessory
which can be added
Part Number
72.110000
72.110010
Standard
Pack
5
20
These connectors can be
male or female.
R2.5 COUPLING WITH CENTRAL FIXING
PLASTIC CLAMP RING
METAL CLAMP RING
No accessories can be
added.
Metal Clamp
Plastic
Ring
Clamp Ring
72.141000
72.140000
72.141010
72.140010
72.141100
72.140100
72.141110
72.140110
72.141700
72.141710
Cable
Standard
Diameter
Pack
5.5 - 10.5 mm
5
20
9 - 12 mm
5
20
7.5 - 14 mm
5
20
These connectors can be
male or female.
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
419
