CCL-SM1E25FT-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CCL-SM1E25FT-FREQ

CCL-SM1E25FT-FREQ: DescriptionParallel - Fundamental Quartz Crystal, 3.5MHz Min, 33.868MHz Max,; CategoryPassive components Crystal/resonator; File Size129KB，1 Pages; ManufacturerCal Crystal Lab Inc / Comclok Inc; Websitehttps://www.transko.com

Download Datasheet Parametric View All

CCL-SM1E25FT-FREQ Overview

Parallel - Fundamental Quartz Crystal, 3.5MHz Min, 33.868MHz Max,

CCL-SM1E25FT-FREQ Parametric

Parameter Name	Attribute value
Maker	Cal Crystal Lab Inc / Comclok Inc
Reach Compliance Code	compliant
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	25 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	33.868 MHz
Minimum operating frequency	3.5 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L12.5XB4.6XH3.7 (mm)/L0.492XB0.181XH0.145 (inch)
surface mount	YES

Preview

Download Datasheet

View All

Cal Crystal Lab, Inc. / Comclok, Inc. 800-333-9825

1156 North Gilbert Street • Anaheim, CA 92801

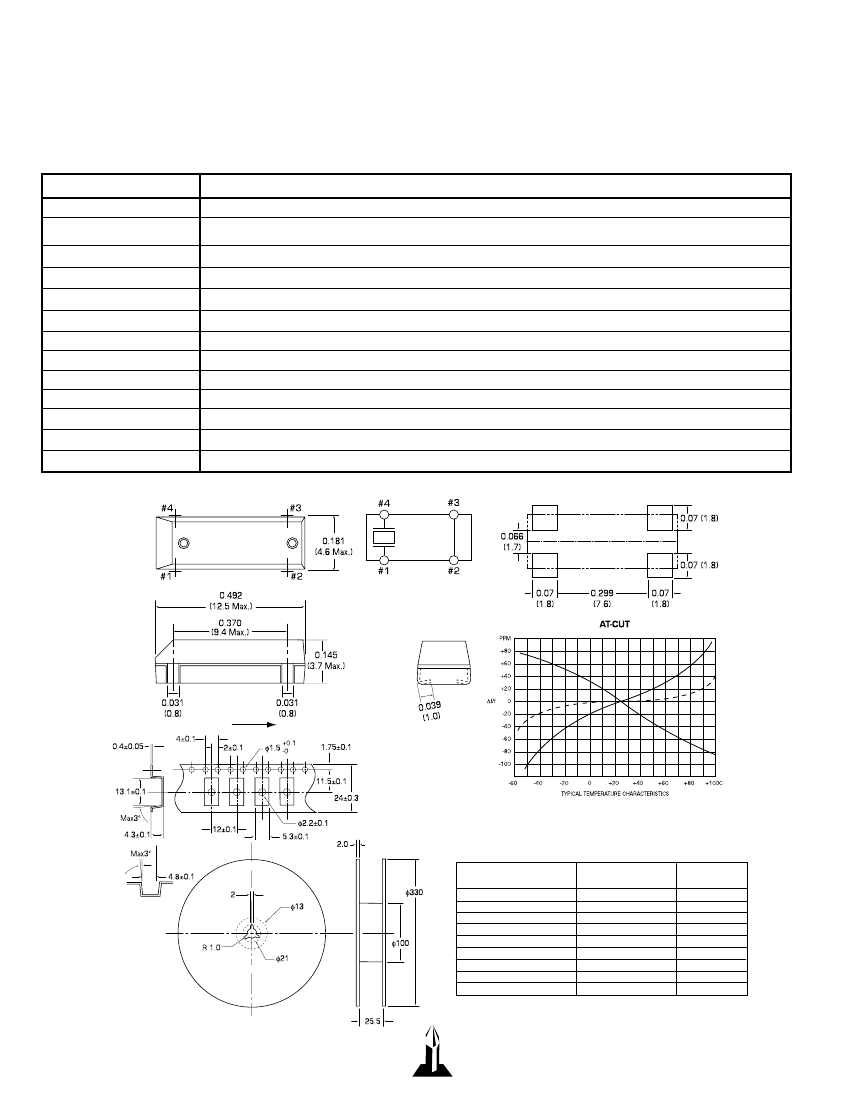

PLASTIC PACKAGE AT-STRIP SURFACE MOUNT CRYSTALS

MODEL SM1

Model

Frequency Range

Oscillation Mode

Frequency Tolerance@ 25

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Equivalent Series Resistance

Load Capacitance

Shunt Capacitance

Drive Level

Insulation Resistance

Aging for first year

Reflow Soldering Condition

DIMENSIONS

Inches

(mm)

SM1

3.5MHz ~ 70.0 MHz

3.5MHz ~ 30.0MHz (AT Fundamental)

30.00MHz ~ 70.00MHz (3rd Overtone)

50ppm Optional Tolerances Available

100ppm 0

C to +70

C Standard, Optional Tolerances Available

-10

C ~ +60

C Standard, Optional Temperature Ranges Available

-55

C ~ +125

Resistance Specifications Below (See Chart Below)

16, 18, 20, 30, and 32pF, Custom C

and Series resonant available

7pF Max

100µ Watts Correlation

500 megohms Min

±5ppm

Max

10 Seconds Max at +235

±5

Recommended Soldering Pattern

(#2 & #3 : N.C.)

Frequency

Tape & Reel

1,000 pcs. per reel

(330 mm dia.)

3.5MHz < f

< 4MHz

4MHz < f

< 6.000MHz

6.000MHz < f

< 6.50MHz

7.25MHz < f

< 8.000MHz

9.00MHz < f

< 13.00MHz

13.50MHz < f

< 19.6608MHz

20.00MHz < f

< 29.491MHz

30.00MHz < f

< 33.868MHz

35.251MHz < f

< 80.000MHz

Equivalent

Oscillation

Series Resistance

Mode

200Ω Max

Fundamental

150Ω Max

Fundamental

100Ω Max

Fundamental

80Ω Max

Fundamental

60Ω Max

Fundamental

50Ω Max

Fundamental

40Ω Max

Fundamental

100Ω Max

Fundamental

100Ω Max

3rd Overtone
