BT134-700G datasheet, PDF - EEWORLD Datasheet

BT134-700G: DescriptionTRIAC, 700V V(DRM), 4A I(T)RMS,; CategoryAnalog mixed-signal IC Trigger device; File Size558KB，10 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

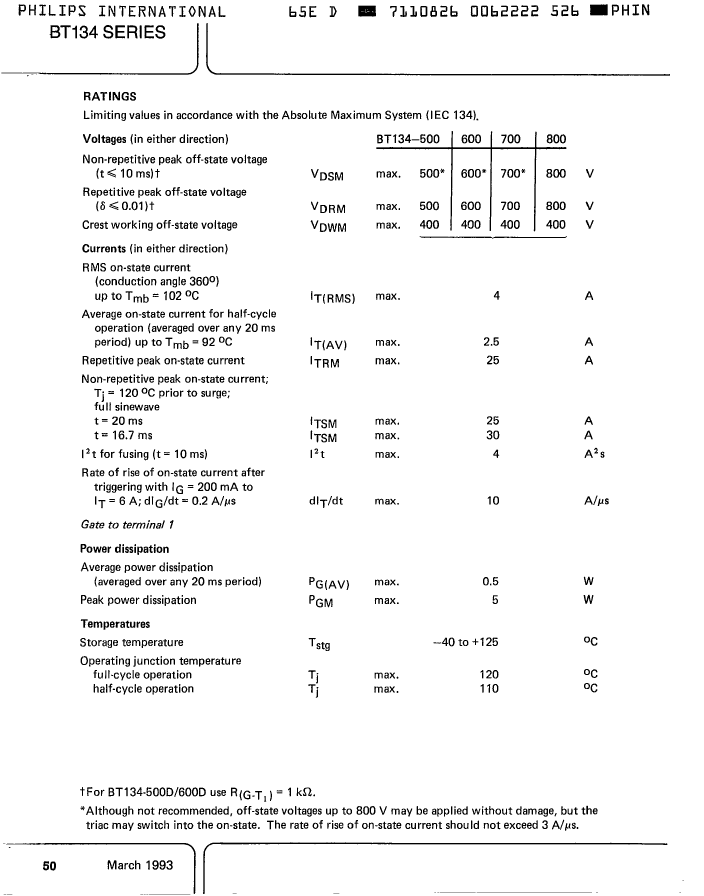

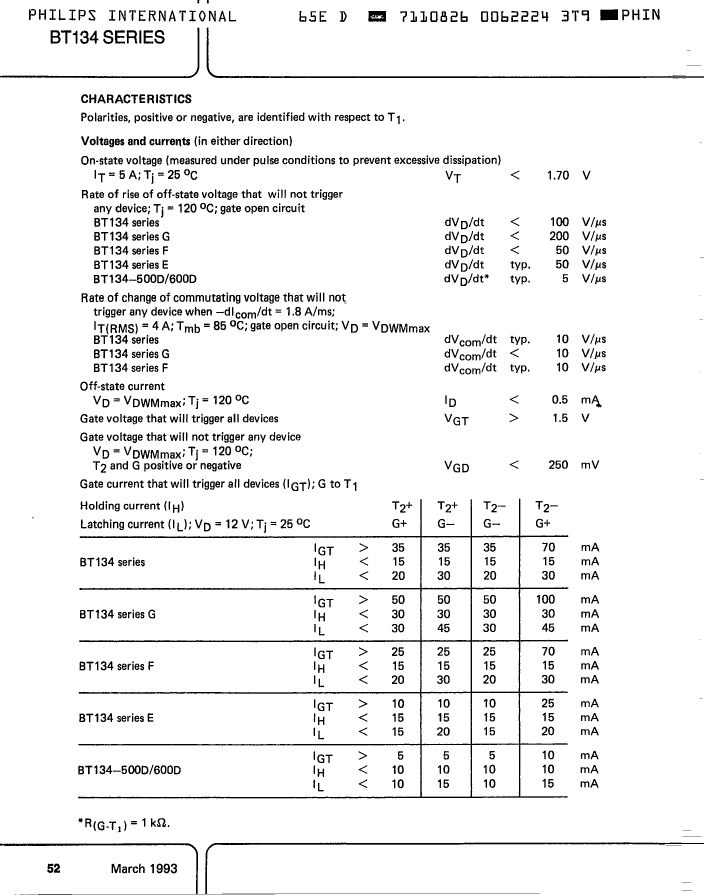

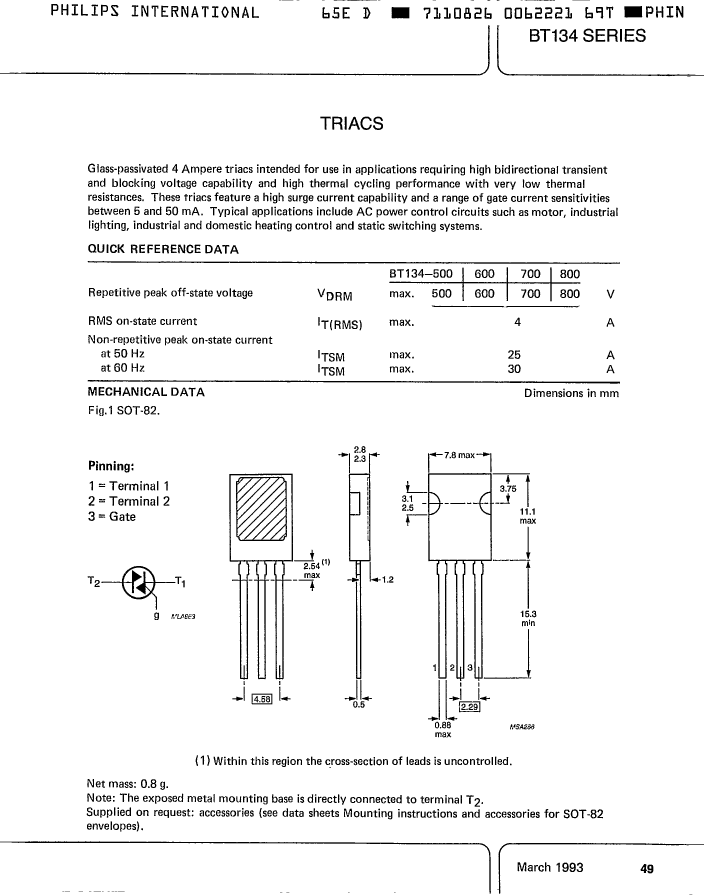

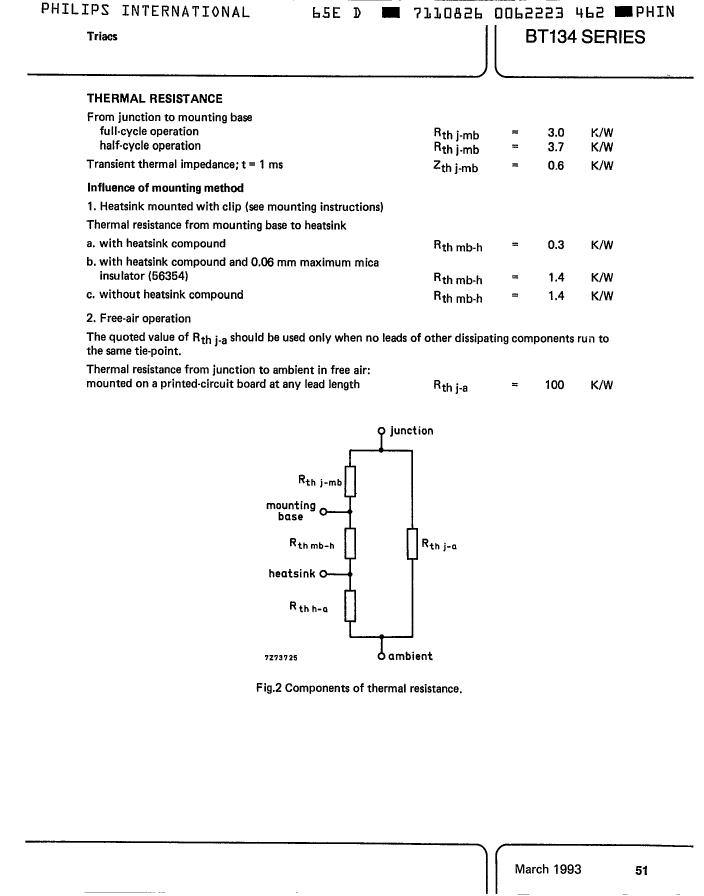

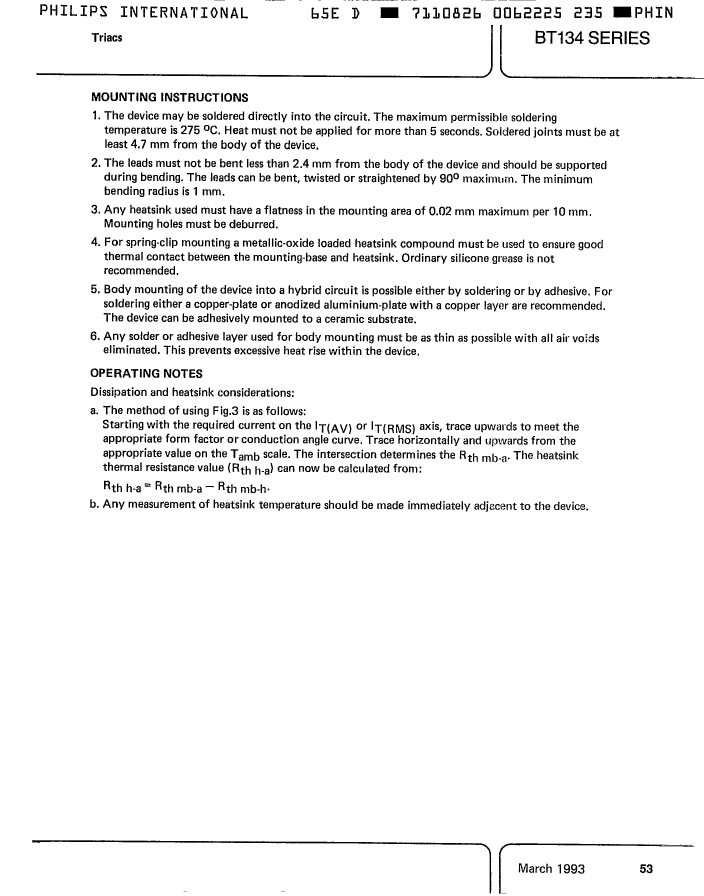

BT134-700G Overview

TRIAC, 700V V(DRM), 4A I(T)RMS,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of commutation voltage - minimum value	10 V/us
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	30 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.7 V
Maximum operating temperature	120 °C
Maximum rms on-state current	4 A
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BT134-700G	BT134-700E	BT134-700F
Description	TRIAC, 700V V(DRM), 4A I(T)RMS,	TRIAC, 700V V(DRM), 4A I(T)RMS,	TRIAC, 700V V(DRM), 4A I(T)RMS,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	200 V/us	50 V/us	50 V/us
Maximum DC gate trigger current	50 mA	10 mA	25 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	30 mA	15 mA	15 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.7 V	1.7 V	1.7 V
Maximum operating temperature	120 °C	120 °C	120 °C
Maximum rms on-state current	4 A	4 A	4 A
Off-state repetitive peak voltage	700 V	700 V	700 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC
