OPA27AZQ datasheet, PDF - EEWORLD Datasheet

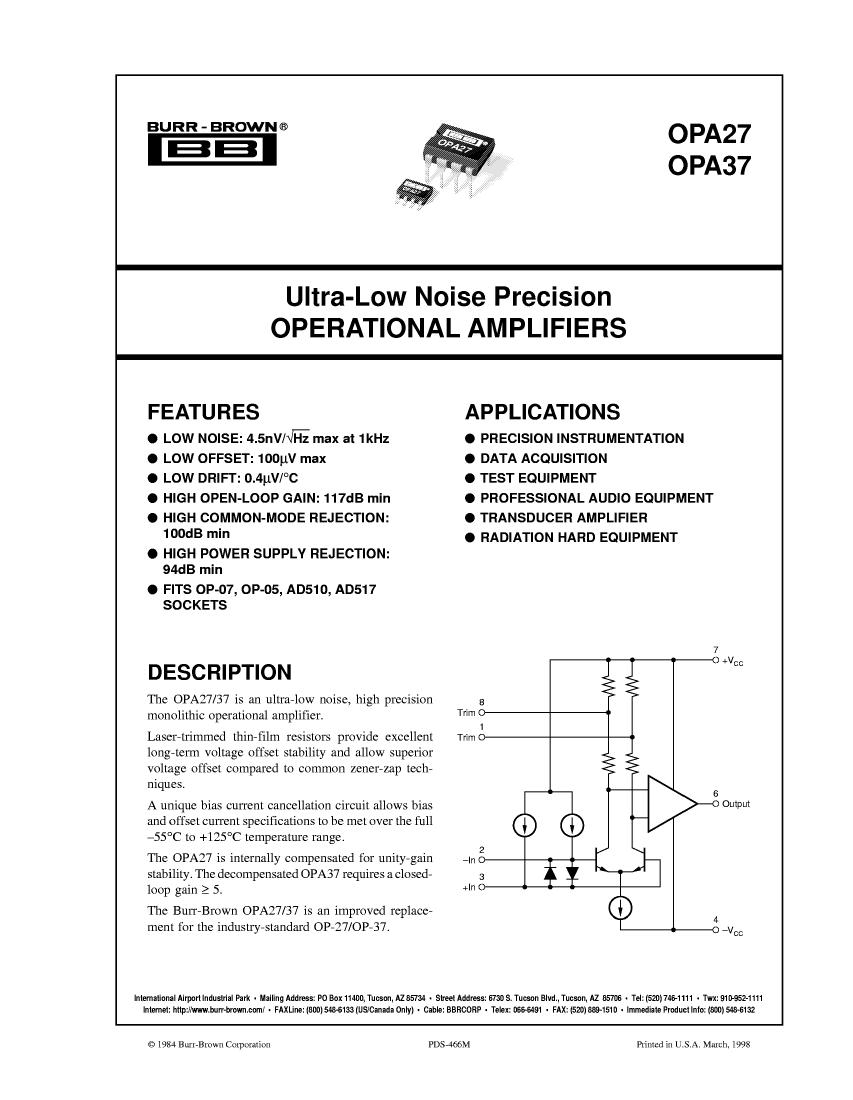

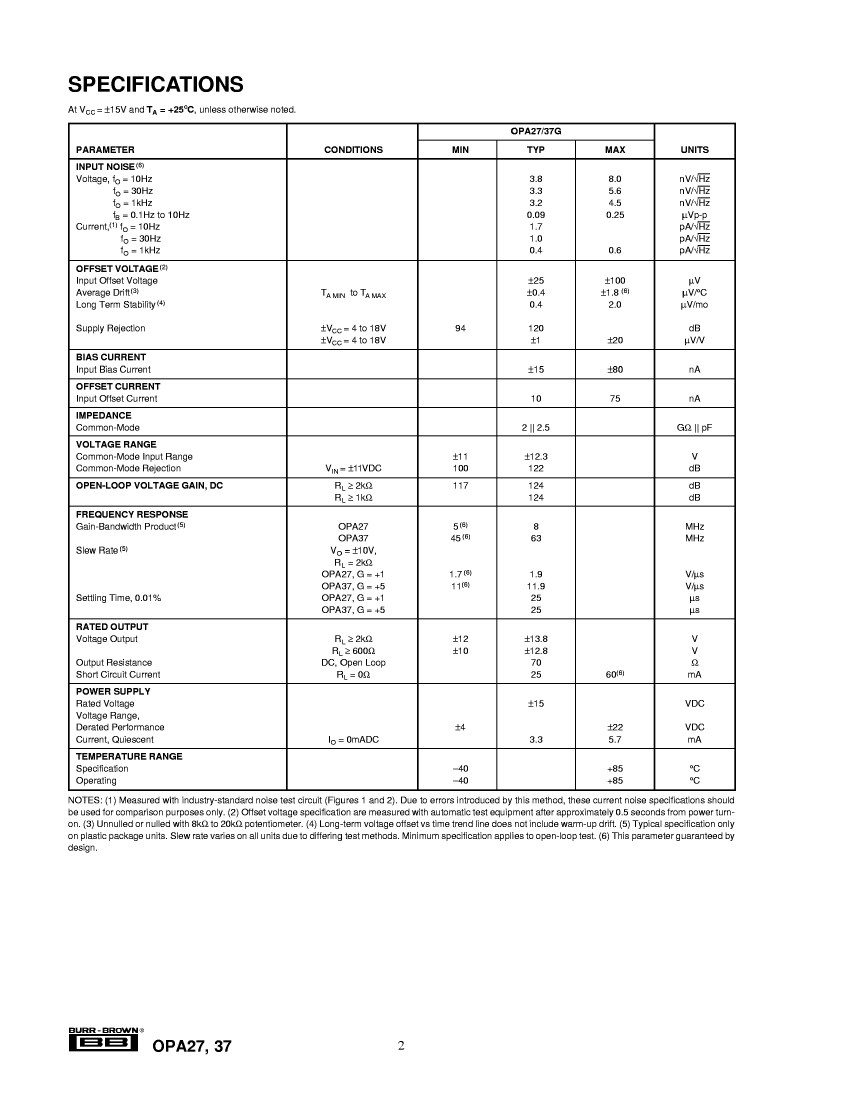

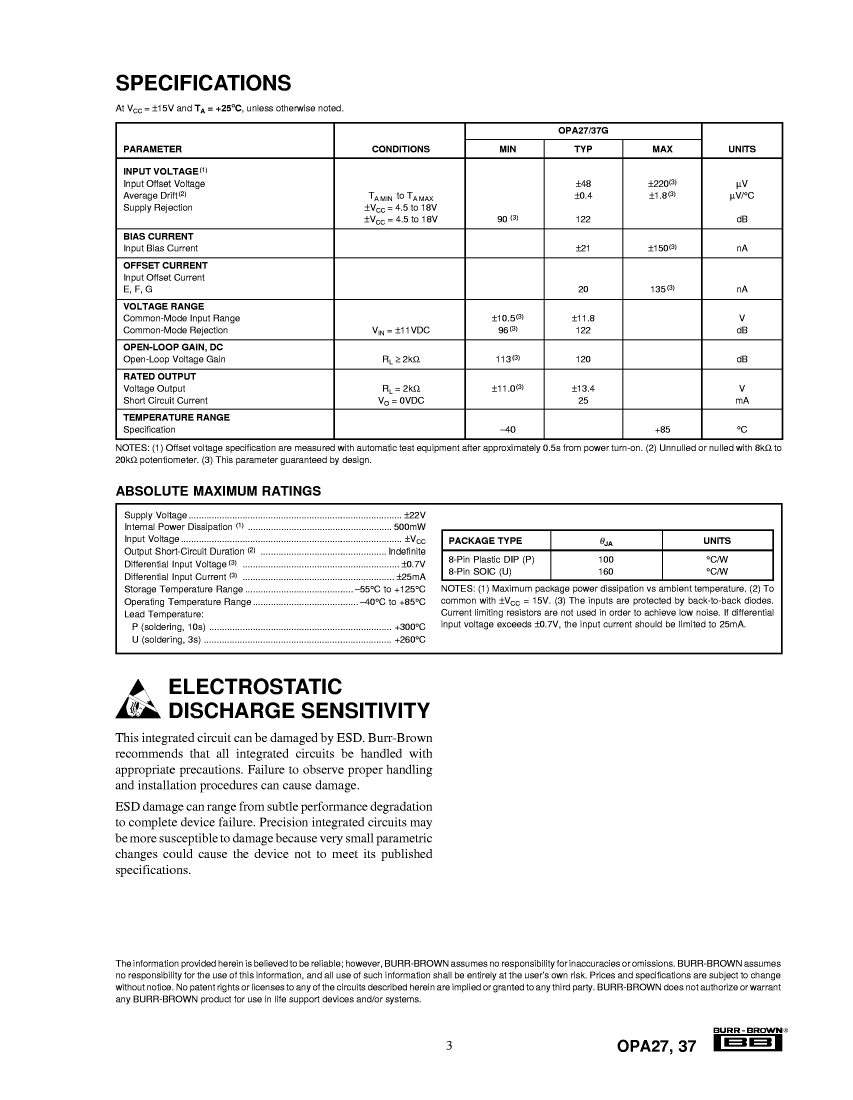

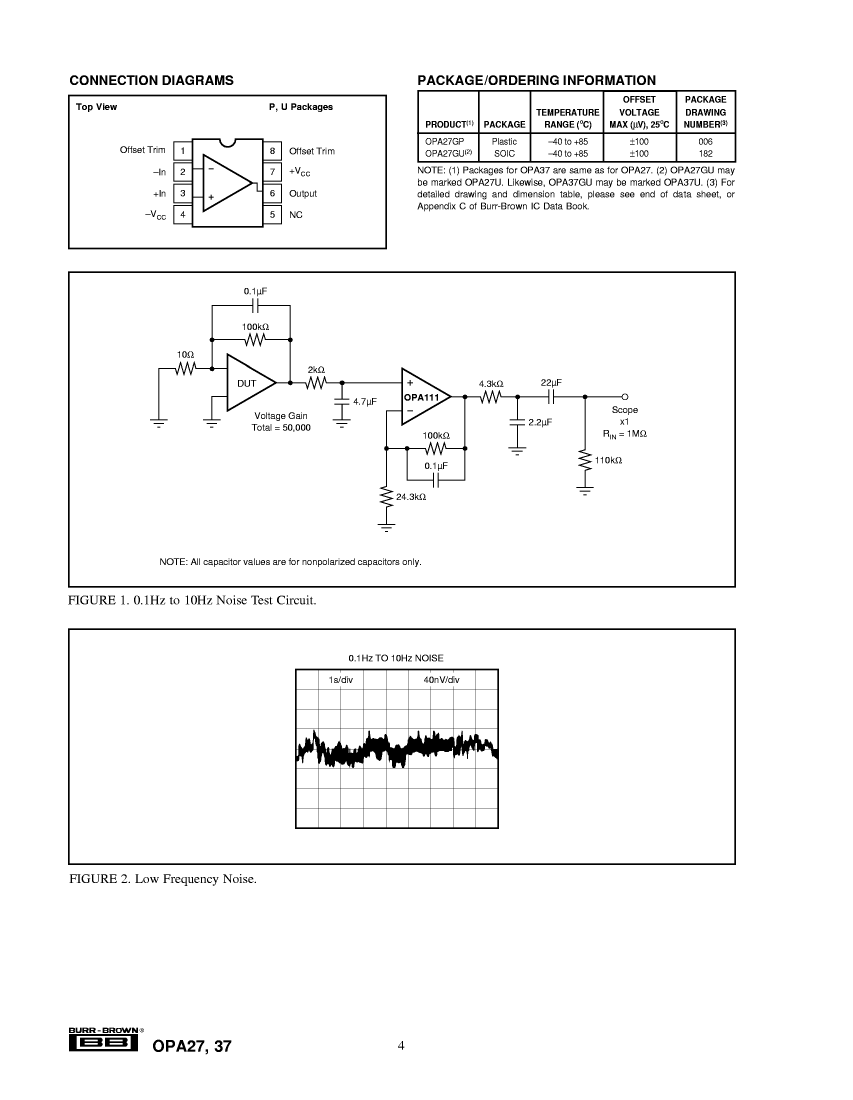

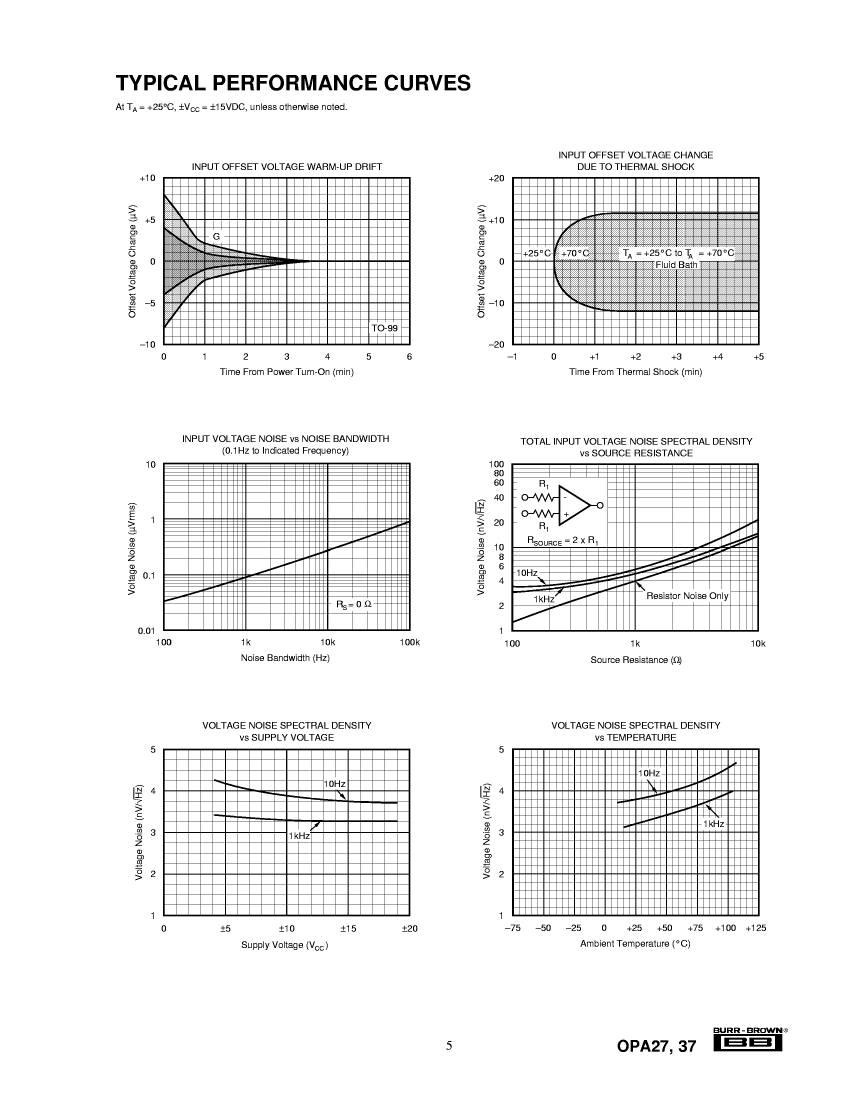

OPA27AZQ: DescriptionOperational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size763KB，15 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

OPA27AZQ Overview

Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.04 µA
frequency compensation	YES
Maximum input offset voltage	60 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
minimum slew rate	1.7 V/us
Maximum slew rate	9.4 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	630000
