OP50GBC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> OP50GBC

OP50GBC: DescriptionOperational Amplifier, 1 Func, 100uV Offset-Max, BIPolar,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size673KB，11 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

OP50GBC Overview

Operational Amplifier, 1 Func, 100uV Offset-Max, BIPolar,

OP50GBC Parametric

Parameter Name	Attribute value
Maker	Precision Monolithics Inc
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.01 µA
frequency compensation	YES (AVCL>=50)
Maximum input offset voltage	100 µV
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Maximum operating temperature	25 °C
Minimum operating temperature	25 °C
Encapsulate equivalent code	DIE OR CHIP
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
minimum slew rate	2.5 V/us
Maximum slew rate	3.3 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	OTHER
Minimum voltage gain	7500000

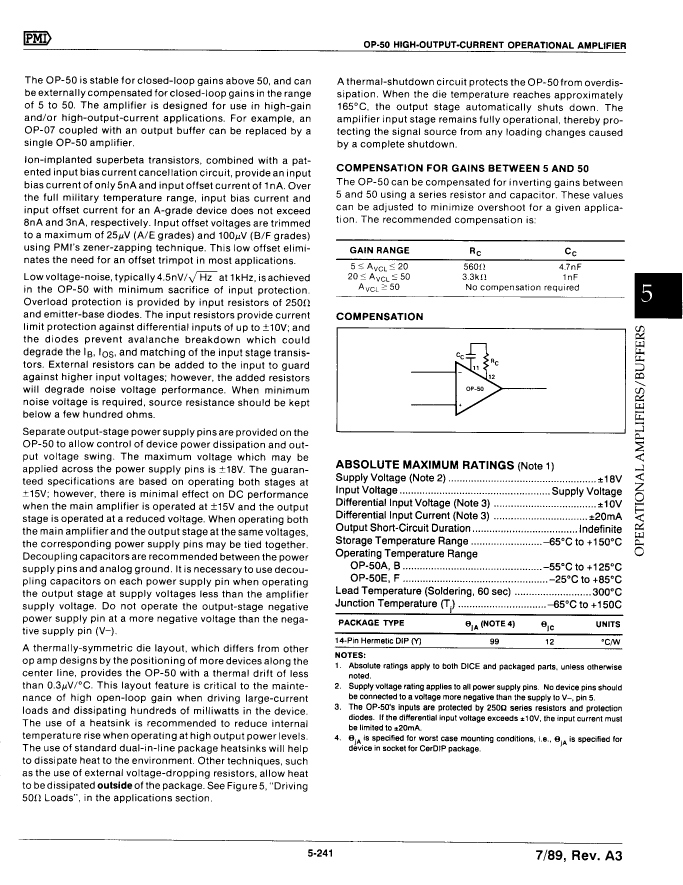

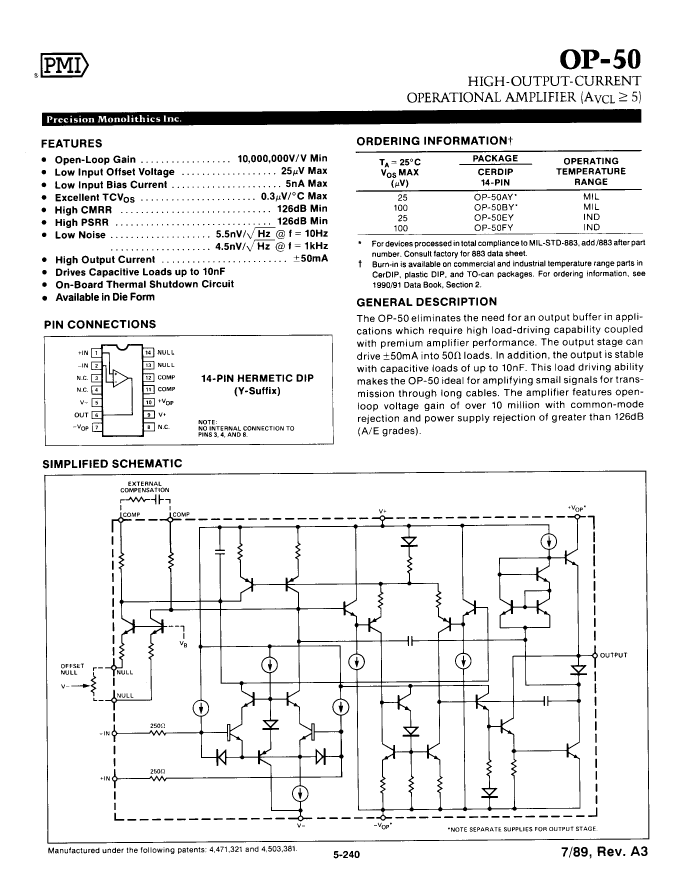

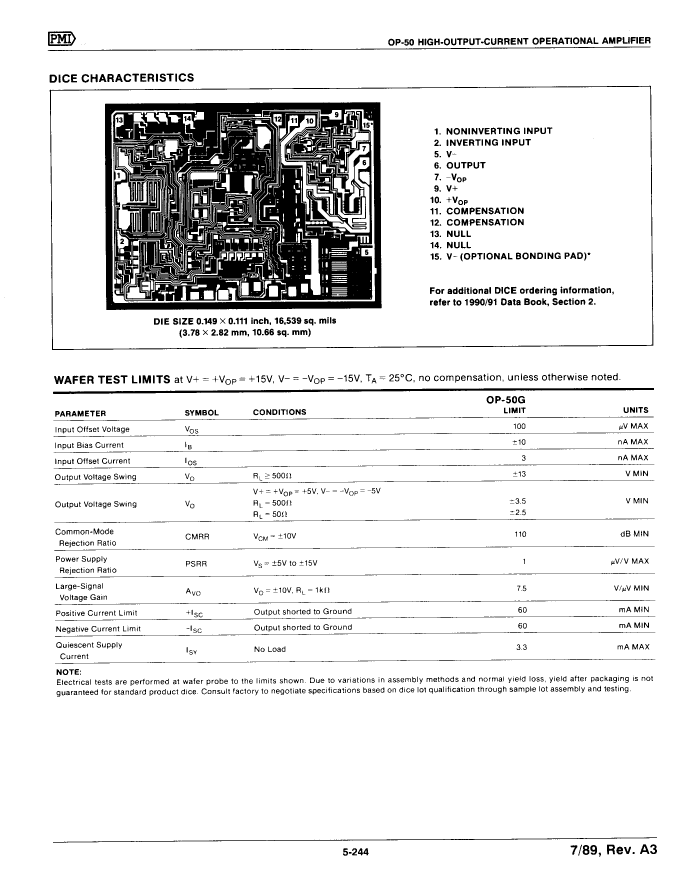

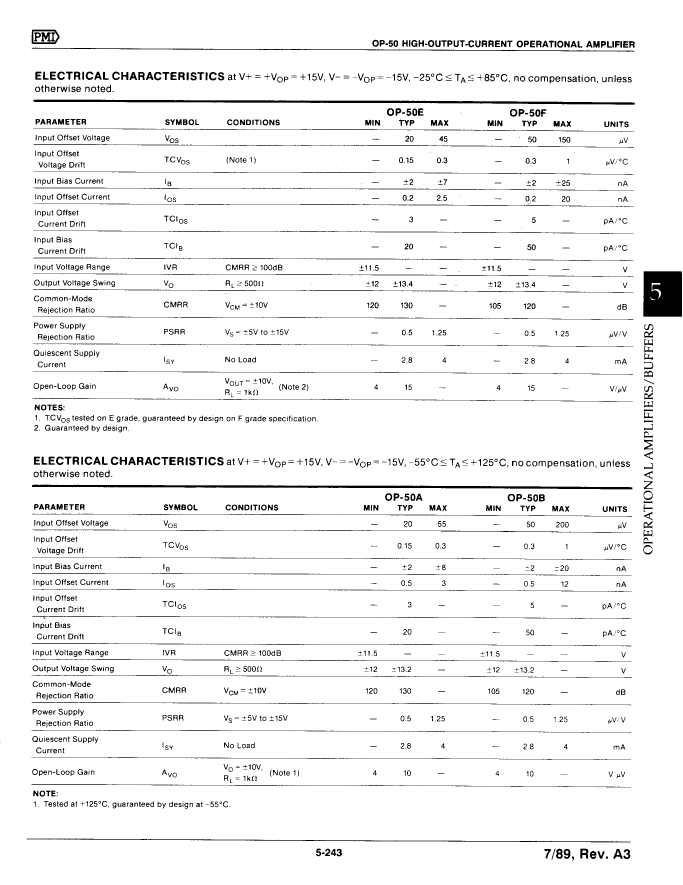

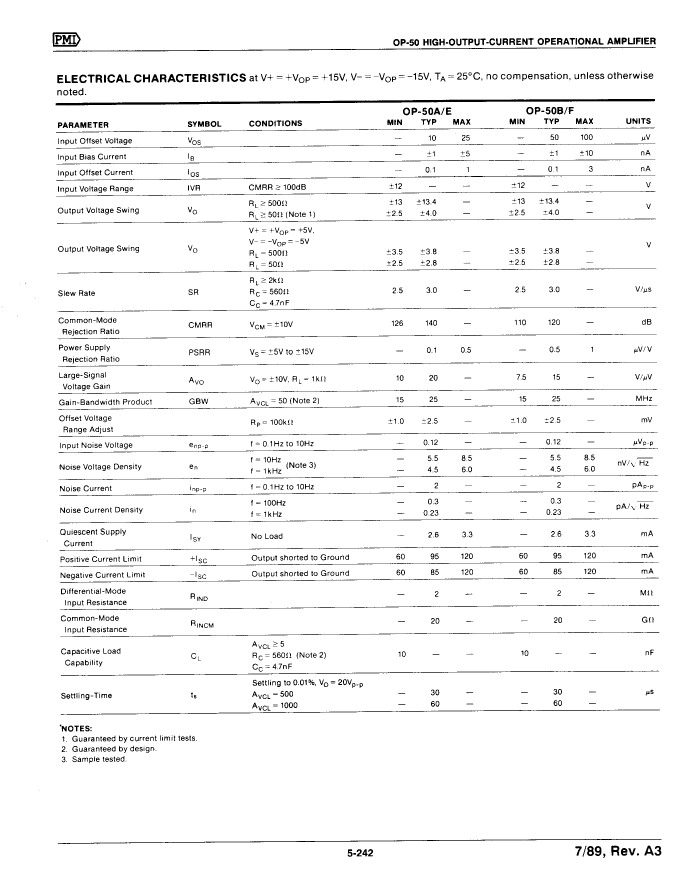

Preview

Download Datasheet

View All

OP50GBC Related Products

	OP50GBC	OP-50AY	OP-50AY/883	OP-50BY/883	OP-50BY	OP-50EY	OP50GAC
Description	Operational Amplifier, 1 Func, 100uV Offset-Max, BIPolar,	Operational Amplifier, 1 Func, 55uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 1 Func, 55uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 1 Func, 200uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 1 Func, 200uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 1 Func, 45uV Offset-Max, BIPolar, CDIP14,	Operational Amplifier, 1 Func, 100uV Offset-Max, BIPolar,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.01 µA	0.005 µA	0.005 µA	0.01 µA	0.01 µA	0.005 µA	0.01 µA
frequency compensation	YES (AVCL>=50)	YES (AVCL>=50)	YES (AVCL>=50)	YES (AVCL>=50)	YES (AVCL>=50)	YES (AVCL>=50)	YES (AVCL>=50)
Maximum input offset voltage	100 µV	55 µV	55 µV	200 µV	200 µV	45 µV	100 µV
low-dissonance	YES	YES	YES	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1
Maximum operating temperature	25 °C	125 °C	125 °C	125 °C	125 °C	85 °C	25 °C
Minimum operating temperature	25 °C	-55 °C	-55 °C	-55 °C	-55 °C	-25 °C	25 °C
Encapsulate equivalent code	DIE OR CHIP	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIE OR CHIP
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	2.5 V/us	2.5 V/us	2.5 V/us	2.5 V/us	2.5 V/us	2.5 V/us	2.5 V/us
Maximum slew rate	3.3 mA	4 mA	4 mA	4 mA	4 mA	4 mA	3.3 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	MILITARY	MILITARY	MILITARY	MILITARY	OTHER	OTHER
Minimum voltage gain	7500000	4000000	4000000	4000000	4000000	4000000	7500000
Filter level	MIL-STD-883 Class B (Modified)	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	-	MIL-STD-883 Class S (Modified)
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maximum average bias current (IIB)	-	0.008 µA	0.008 µA	0.02 µA	0.02 µA	0.007 µA	-
Nominal Common Mode Rejection Ratio	-	130 dB	140 dB	120 dB	120 dB	130 dB	-
JESD-30 code	-	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	R-GDIP-T14	-
JESD-609 code	-	e0	e0	e0	e0	e0	-
Negative supply voltage upper limit	-	-18 V	-18 V	-18 V	-18 V	-18 V	-
Number of terminals	-	14	14	14	14	14	-
Package body material	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-
encapsulated code	-	DIP	DIP	DIP	DIP	DIP	-
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-
Nominal slew rate	-	3 V/us	3 V/us	3 V/us	3 V/us	3 V/us	-
surface mount	-	NO	NO	NO	NO	NO	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	-
Nominal Uniform Gain Bandwidth	-	25000 kHz	25000 kHz	25000 kHz	25000 kHz	25000 kHz	-
Base Number Matches	-	1	1	1	1	-	-
