Data Sheet
Description
0.5 Amp Silicon
Passivated Rectifiers
Mechanical Dimensions
GL34A . . . 34J Series
DO-213AA
Features
n
LOW COST
n
CASE: MOLDED PLASTIC
n
0.5 AMP OPERATION @ T
A
= 75°C, WITH
NO THERMAL RUNAWAY
n
LOW LEAKAGE CURRENT
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
@ T
A
= 75°C
Peak Forward Surge Current...I
FSM
8.3ms single half sine wave superimposed on
rated load (JEDEC Method)
Max. Full Load Reverse Current...I
R(AV)
Full Cycle Average @ T
A
= 55°C
Max. InstantaneousForward Voltage @ 1.0A...V
F
Max. DC Reverse Current...I
R
@ Rated DC Blocking Voltage
T
A
= 25°C
T
A
= 125°C
GL34A
50
35
50
GL34A . . . 34J Series
GL34B
100
70
100
GL34D
200
140
200
GL34G
400
280
400
GL34J
600
420
600
Units
Volts
Volts
Volts
Amps
Amps
............................................. 1.0 ...............................................
............................................. 10.0 ...............................................
............................................. 50.0 ...............................................
µAmps
............................................. 1.1 ...............................................
............................................. 5.0 ...............................................
............................................. 2 5 0 ...............................................
............................................. 4.0 ...............................................
............................................. 70.0 ...............................................
............................................. 125.0 ..............................................
......................................... -65 to 125 ..........................................
Volts
µAmps
µAmps
pF
°C
/ W
°C
/ W
°C
Typical Junction Capacitance...C
J
(Note 1)
Max. Thermal Resistance...R
θJC
(Note 2)
Max. Thermal Resistance...R
θJA
(Note 3)
Operating & Storage Temperature Range...T
J
, T
STRG
Data Sheet
0.5 Amp Silicon
Passivated Rectifiers

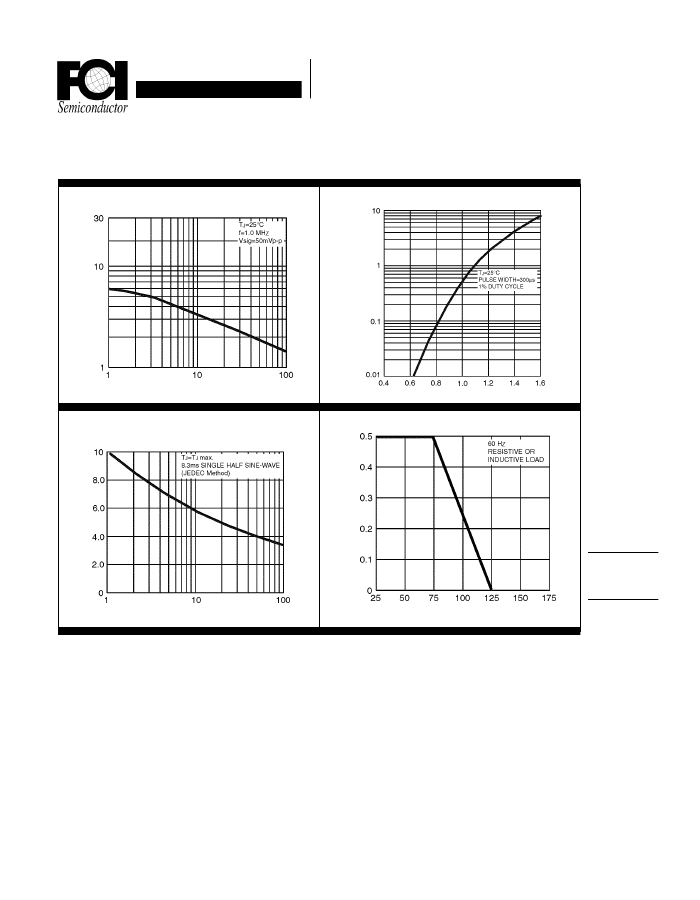

Typical Junction Capacitance
Typical Instantaneous Forward Characteristics
Reverse Voltage (Volts)
Non-Repetitive
Peak Forward Surge Current
Volts
Forward Current Derating Curve
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
Single Phase Half
Wave, 60 HZ
Resistive or
Inductive Load.
Amps
Amps
Number of Cycles @ 60 HZ
Terminal Temperature (°C)
°
For Capacitive
Load, Derate
Current by 20%.
NOTES:
1. Measured @ 1 MHZ and applied reverse voltage of 4.0V.
2. Thermal Resistance Junction to Case, 5.0mm
2
copper pad to each terminal.
3. Thermal Resistance Junction to Ambient, 5.0mm
2
copper pad to each terminal.
GL34A . . . 34J Series
Amps
pF
