ASTX-H08-10.0000MHZ-B-D25 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASTX-H08-10.0000MHZ-B-D25

ASTX-H08-10.0000MHZ-B-D25: DescriptionCMOS Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size607KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASTX-H08-10.0000MHZ-B-D25 Overview

CMOS Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ASTX-H08-10.0000MHZ-B-D25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	BULK
Ageing	1 PPM/FIRST YEAR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Manufacturer's serial number	ASTX-H08
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.5mm
longest rise time	10 ns
Maximum supply voltage	3.15 V
Minimum supply voltage	2.85 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

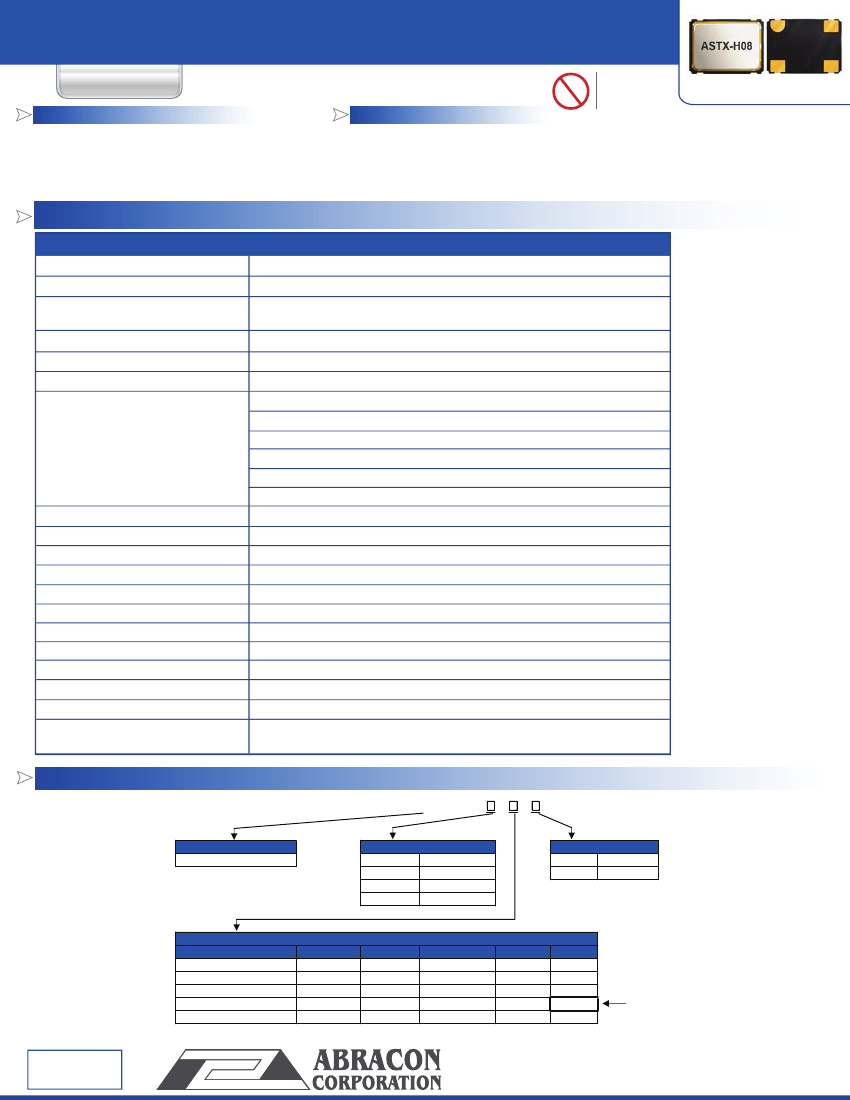

SMD TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR

ASTX-H08

FEATURES:

• Compact and low in height

• IR reflow possible

• Suitable for high-density SMT

• Low phase noise

APPLICATIONS:

• Cellular and cordless phones

• Standard OSC for exact equipment

• Mobile communication equipment

• Portable radio equipment and music player

RoHS

Compliant

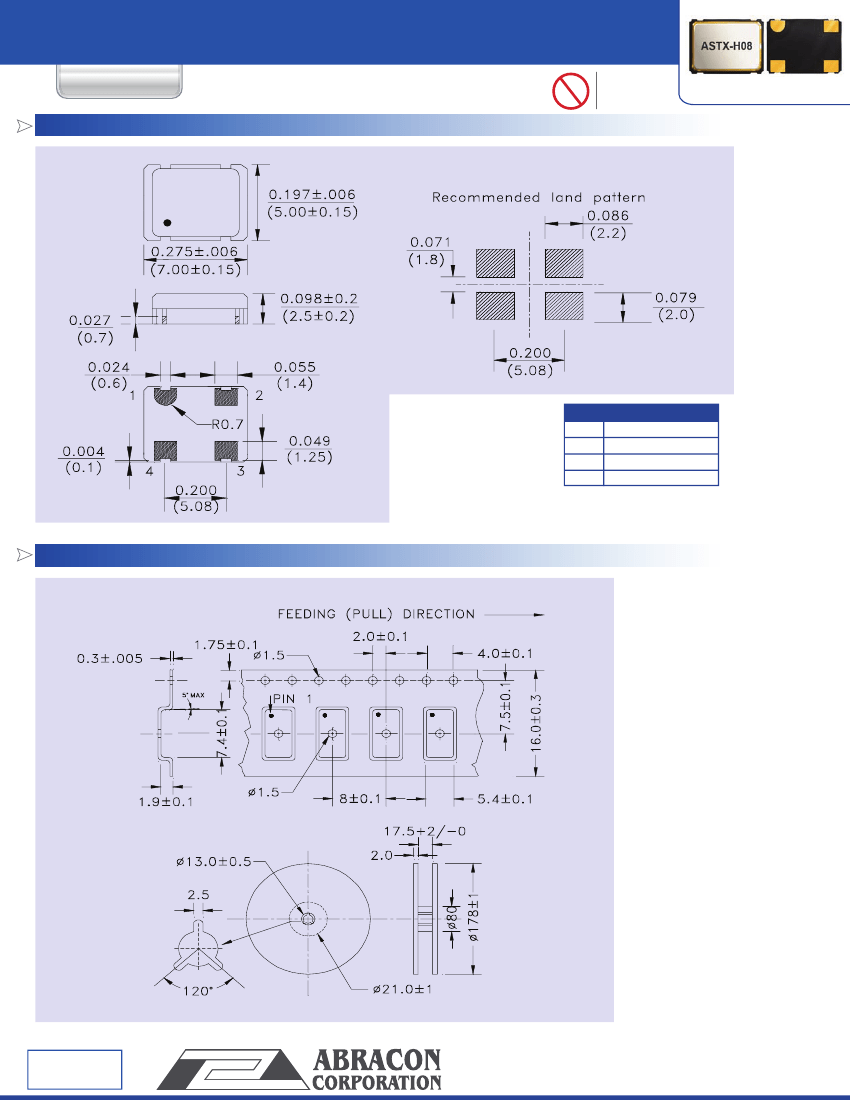

7.0 X 5.0 X 2.5mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Standard Frequencies

Operating Temperature

Storage Temperature

Freq. Tolerance @ 25° C

Freq. Stability vs. Temperature

vs. Supply Voltage

vs. Aging @ 25° C

vs. Supply Voltage

vs. Load

vs. Reflow

Supply Voltage

Start-Up Time

Output Voltage level (Vdd)

Start-up Time

Rise and Fall Time

Duty cycle (symmetry)

Current consumption

Start-up time

Output load

Output format

Output wave form

Phase Noise

ASTX-H08 Series

2.50MHz to 170.000MHz

10.0, 12.8, 13.0, 14.4, 16.0, 16.384, 19.2, 19.440, 19.680, 20.0, 38.880,

77.760, 155.520MHz

- 30° C to + 75° C (See Table 1 for options)

- 50° C to + 100° C

±3ppm

±2.5ppm standard (See Table 1 for options)

±0.5ppm max. / Vdd ± 5%

±1ppm/1st year

±0.3ppm (± 5% change)

±0.3ppm (± 10% change)

±1ppm max: 1 reflow and measured 24 hours afterwards

3.3 V (See options)

2msec typical

Logic "1" 2.4V min.; Logic "0" 0.4V max

10ms max.

10nsec. typ. 20% « 80% waveform

50% ± 10% @ 1/2 Vdd

30mA max. Frequency dependent

10msec max.

15pF

AC block, DC coupled

Square wave

-72 dBc/Hz @ 10Hz, -110 dBc/Hz @ 100Hz, -125 dBc/Hz @ 1KHz,

-132 dBc/Hz @ 10KHz, -125 dBc/Hz @ 100KHz

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

Frequency

XX.XXXXMHz

ASTX - H08 - Frequency -

Supply Voltage

Blank

3.3V

2.8V

3.0V

Temperature and Frequency Stability

±0.5ppm

±1.0ppm

±1.5ppm

D10

D15

*E5

E10

E15

F10

F15

G10

G15

H10

H15

Packaging

Blank

Bulk

Tape and Reel

0°C to +50°C

-10°C to +60°C

-20°C to +70°C

-30°C to +75°C

-40°C to +85°C

±2.0ppm ±2.5ppm

D20

D25

E20

E25

F20

F25

G20

G25

H20

H25

Standard

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 04.28.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
