159-2-003-0-NFX-YS0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 159-2-003-0-NFX-YS0

Preview

159-2-003-0-NFX-YS0: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size322KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

159-2-003-0-NFX-YS0 Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking

159-2-003-0-NFX-YS0 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
body width	0.079 inch
subject depth	0.291 inch
body length	0.248 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	159
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

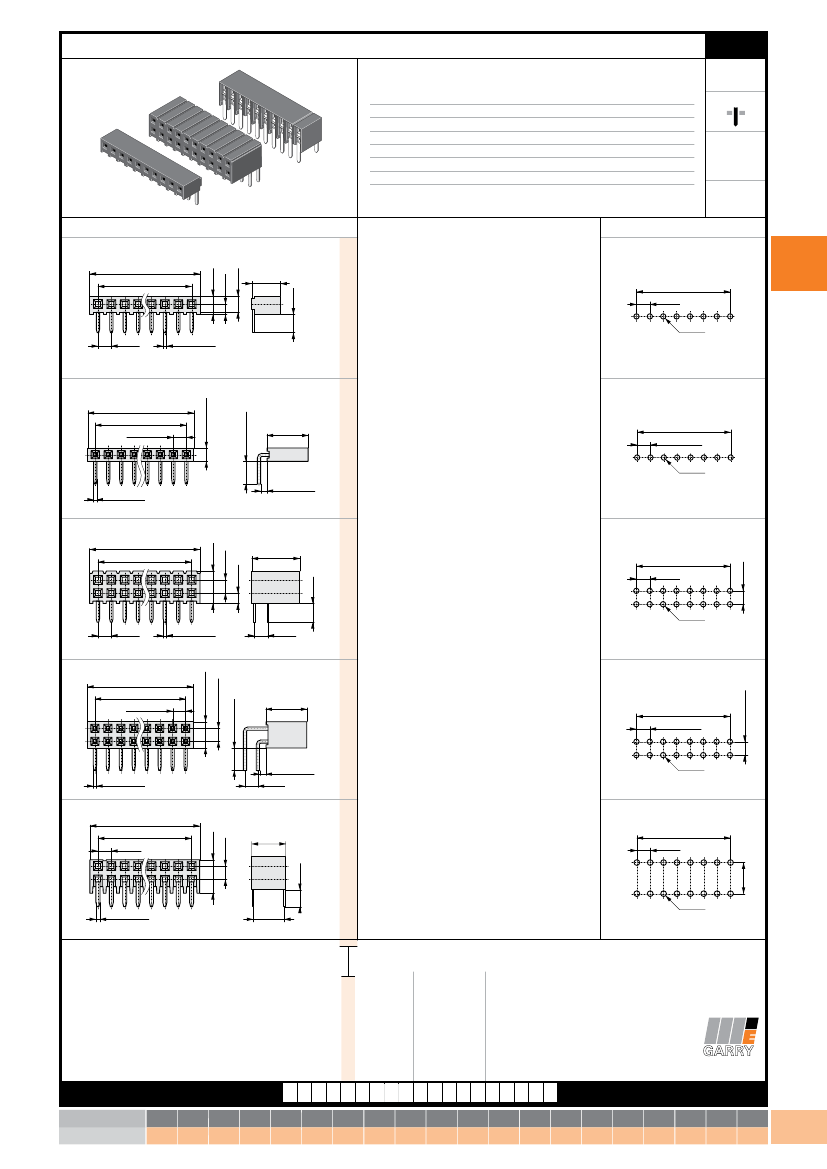

Female Header Right Angled 2,00 mm

Rated current

1,5 A

Rated voltage

150 V

RMS

/ V

DC

Withstand voltage

500 V

RMS

for one minute

Material contact

Phosphor bronze

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

159

pitch

termination

mating pin

size

max.

pincount

2,00

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

☐

0,50

Variation

nx2,00+0,50

(n-1)x2,00

PCB Layout

030/050/080

Product

group

4,30

2,70

1

(n-1)x2,00

2,00

ø0,80

4

2,00

0,50x0,20

2,90±0,25

nx2,00+0,30±0,30

(n-1)x2,00±0,25

2,00±0,10

2,75

1,60

2,40

6,35

2

(n-1)x2,00±0,10

2,00±0,25

ø0,80

0,52x0,40

1,05±0,25

4,85

2,00

1,50

2,80

3

ø0,80

2,00

0,50x0,20

2,00

2,90±0,20

6,35

4

1,05±0,25

2,00

(n/2-1)x2,00±0,10

2,00±0,25

ø0,80

0,52x0,40

5,00

2,00

(n/2)x2,00+0,40

(n/2-1)x2,00

2,00

5,10

(n/2-1)x2,00

2,00

4,65

ø0,85

5

0,60x0,20

4,65

* No. of contacts:

Variation 1 = 002 - 040

Variation 2 = 002 - 030

Variation 3 = 004 - 080

Variation 4 = 004 - 060

Variation 5 = 004 - 050

Plating contact (T,F)

Variation (1,2,3,...)

Plating:

T = Sn

F = Au

2,50

No. of contacts *

(002,... - 080)

2,00±0,05

CS100214_V2

(n/2)x2,00+0,30±0,30

(n/2-1)x2,00±0,25

2,00±0,10

4,00±0,15

2,00±0,10

www.mpe-connector.de

Order code:

Mating series

see page

159-?-???-0-N?X-YS0

4-15

3-25 3-26 3-27 3-28 3-29 3-30

150 152 151 337 332 333

2,00

(n/2)x2,00+0,50

(n/2-1)x2,00

7,20

(n/2-1)x2,00

2,00
