HTL4
LINEAR HALL EFFECT 4-WAY TOGGLE

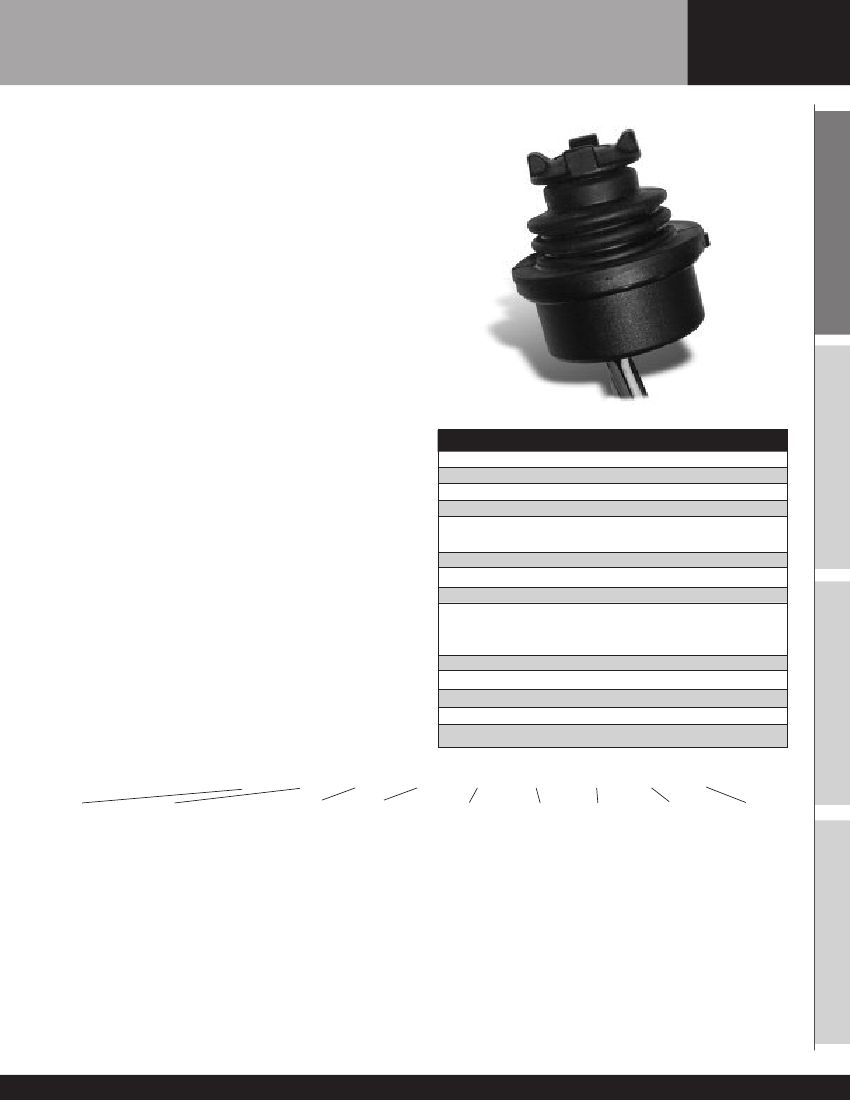

The HTL4 series provides all of the performance of a full size dual
axis joystick in a miniature package that can be mounted in control
handles, arm rests and panels. The Hall Effect sensors are protected
against electromagnetic and radio frequency interference up to 100
volts per meter. Programmable sensors with built-in temperature
compensation insure consistent and repeatable operation. The HTL4
Series has excellent tactile feel for improved operator control and is
available with either dust tight or IP68 watertight seal. A wide
variety of output configurations are available to satisfy different
applications.
HALL EFFECT
TOGGLE
HALL EFFECT
Quality Features:
• Designed for grip, arm rest and panel mounting
• Proven non contacting analog output Hall technology
• Redundant outputs available
• 1,000,000 mechanical life
• Electronics watertight to IP68
• Outstanding EMI/RFI immunity
• Available gated and ungated
• Variety of button styles
ELECTRICAL:
Supply Voltage:
Supply Current:
5.00Vdc Typ. (4.50Vdc min.5.50Vdc max)
32mA Typ. (40mA max)
Standard Characteristics/Ratings:
OPERATIONAL:
1,000,000 cycles (all directions)
Maximum allowable vertical force applied to button 25lbs
Operating force (w/boot) at top of button 16 oz typical 20 oz max
Output voltages at center position have a ±. 25mV tolerance
Output voltages at full travel have a ± .25mV tolerance
ENVIRONMENTAL:
Operating Temp:
Storage Temp:
Seal Integrity:
RFI Withstand:
EMI Withstand:
+ 20° typical (-40°C min to +85°C max)
+20° typical (-65° min to =105°C max)
Watertight per IP68, 1 meter
100V/m 14KHz to 1GHz
per MIL STD 461D. Method RE101 (SAE J113-22) at 50 & 60 Hz
HTL4

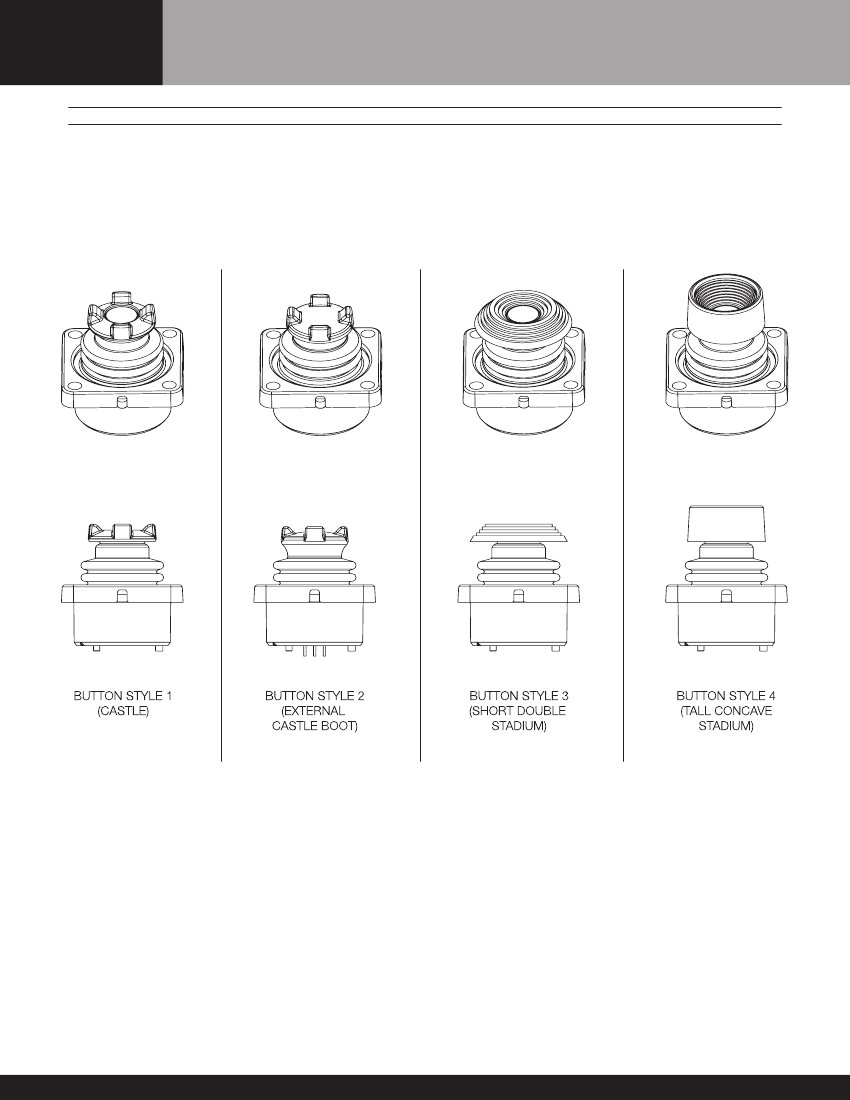

Button Style
1 = Castle
2 = External Castle Boot
3 = Short Double Stadium
4 = Tall Concave Stadium
–
X
Seal
1 = Dusttight
2 = Watertight
X
Travel
1 = 25 Degrees
X
Gating
1 = Ungated
2 = Gated
X
X
Operation Force
1 = 16 OZ
X
Output 1
AA = 2.5+/-2.0 VDC
BB = 2.5+/-2.0 VDC
CC = 2.5+/-2.0 VDC
DD = 2.5+/-1.5 VDC
EE = 2.5+/-1.5 VDC
FF = 2.5+/-1.5 VDC
GG = 0.5-4.5 VDC
HH = 1-4 VDC
X
Output 2
NONE
2.5+/-2.0 VDC
2.5-/+2.0 VDC
NONE
2.5+/-1.5 VDC
2.5-/+1.5 VDC
0.5-4.5 VDC
1-4 VDC
X
Termination
1 = Wire Leads
2 = Pins
X
Button Color
2 = Black
Case Style
1 = .970 SQ.

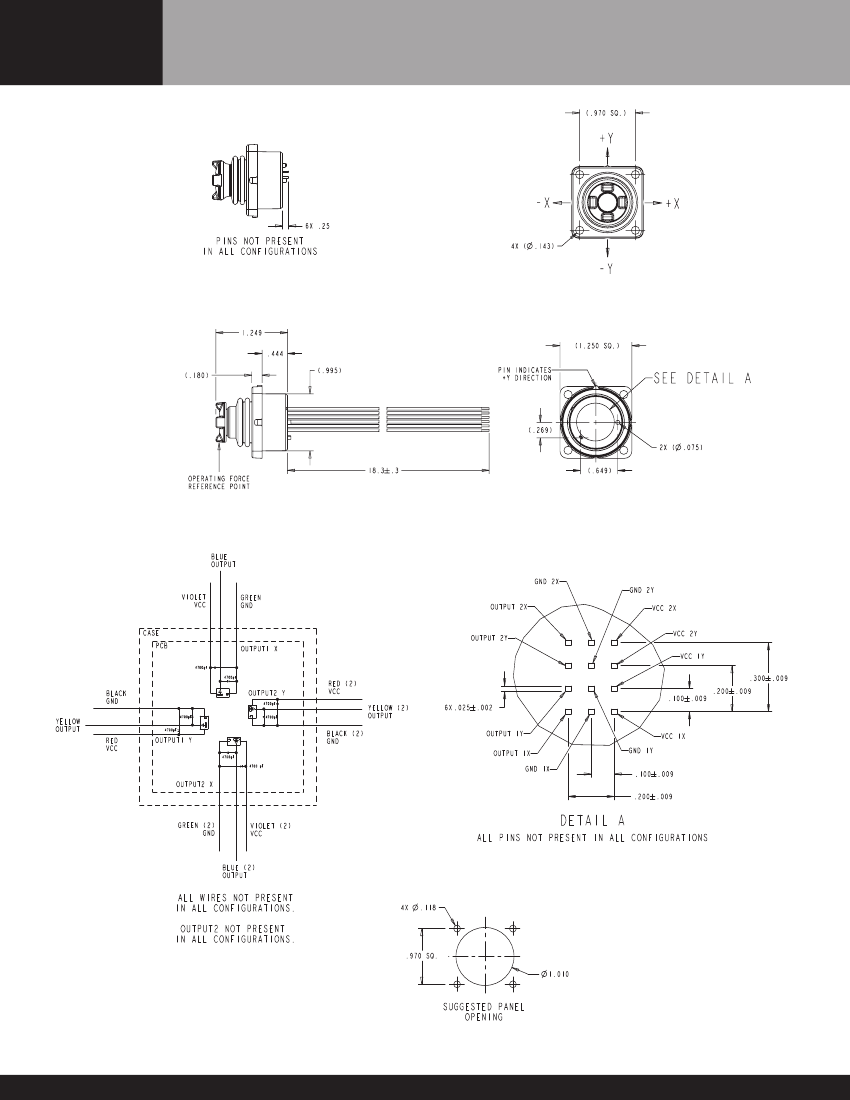

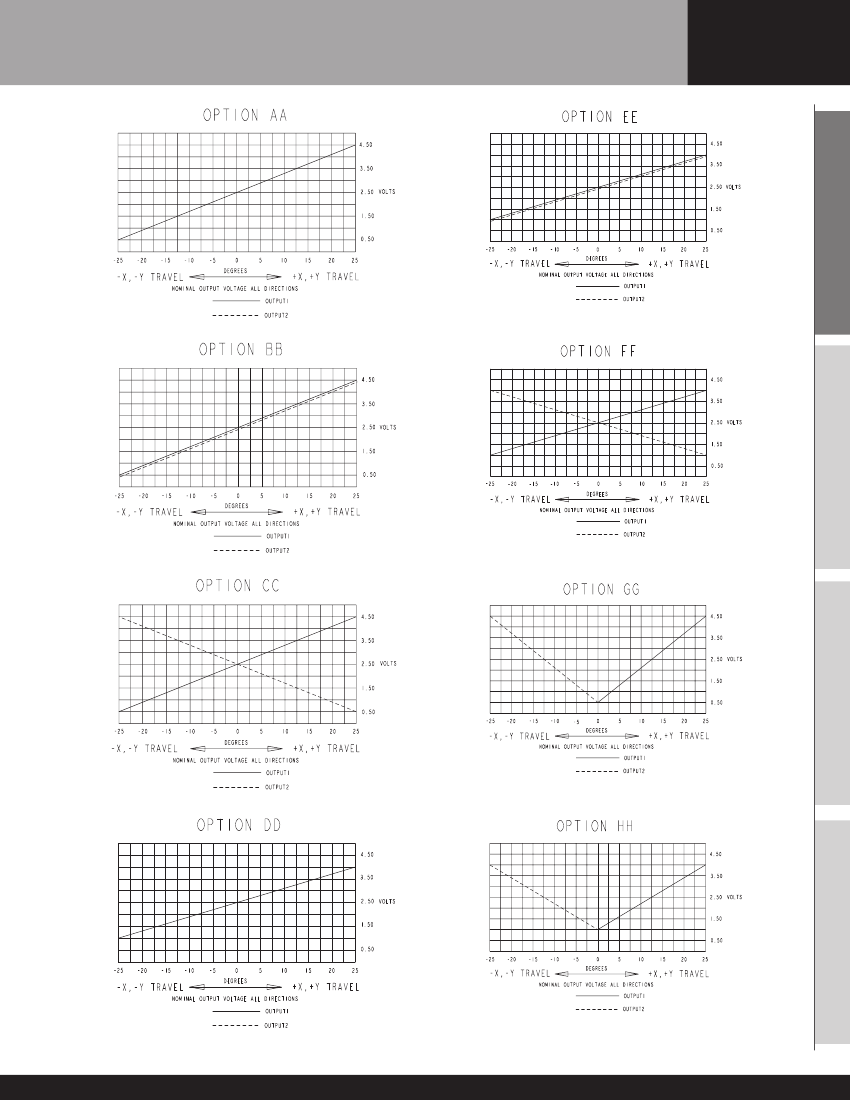

Outputs are from the center to the full travel position in each direction. Options “AA”, “BB”, “CC”, “DD”, “EE”, “FF” provide increased voltage in +X, +Y; and decreasing
voltage in -X, -Y direction from one output per axis. Options “GG” and “HH” provide increasing voltages in all directions (+X, +Y, -X, -Y) from 2 outputs per axis.
Options “BB” and “EE” provide redundant output 2 which duplicates output 1. Options “CC” and “FF” provide redundant output 2 which is inverse of output 1.
Specifications Subject To Change Without Notice
