L-132XBR-7.7/ID-TNR2.54 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-132XBR-7.7/ID-TNR2.54

L-132XBR-7.7/ID-TNR2.54: DescriptionSingle Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size186KB，7 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-132XBR-7.7/ID-TNR2.54 Overview

Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,

L-132XBR-7.7/ID-TNR2.54 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
color	HIGH EFFICIENCY RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED RED
Nominal luminous intensity	25.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	12.9 mm
method of packing	TAPE AND REEL
peak wavelength	627 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

TAPE AND REEL LED LAMP

L-132XBR-7.7/HD-TNR2.54

L-132XBR-7.7/ID-TNR2.54

L-132XBR-7.7/GD-TNR2.54

L-132XBR-7.7/YD-TNR2.54

BRIGHT RED

HIGH EFFICIENCY RED

GREEN

YELLOW

Features

FOR THE USE OF AUTOMATIC INSERTION MACHINE.

2.54mm STRAIGHT LEAD.

LED LAMPS ALSO AVAILABLE IN TAPE & BOX

PACKAGE.

UL RATING : 94V-0.

HOUSING MATERIAL: TYPE 66 NYLON.

Description

The Bright Red source color devices are made with Gallium

Phosphide Red Light Emitting Diode.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

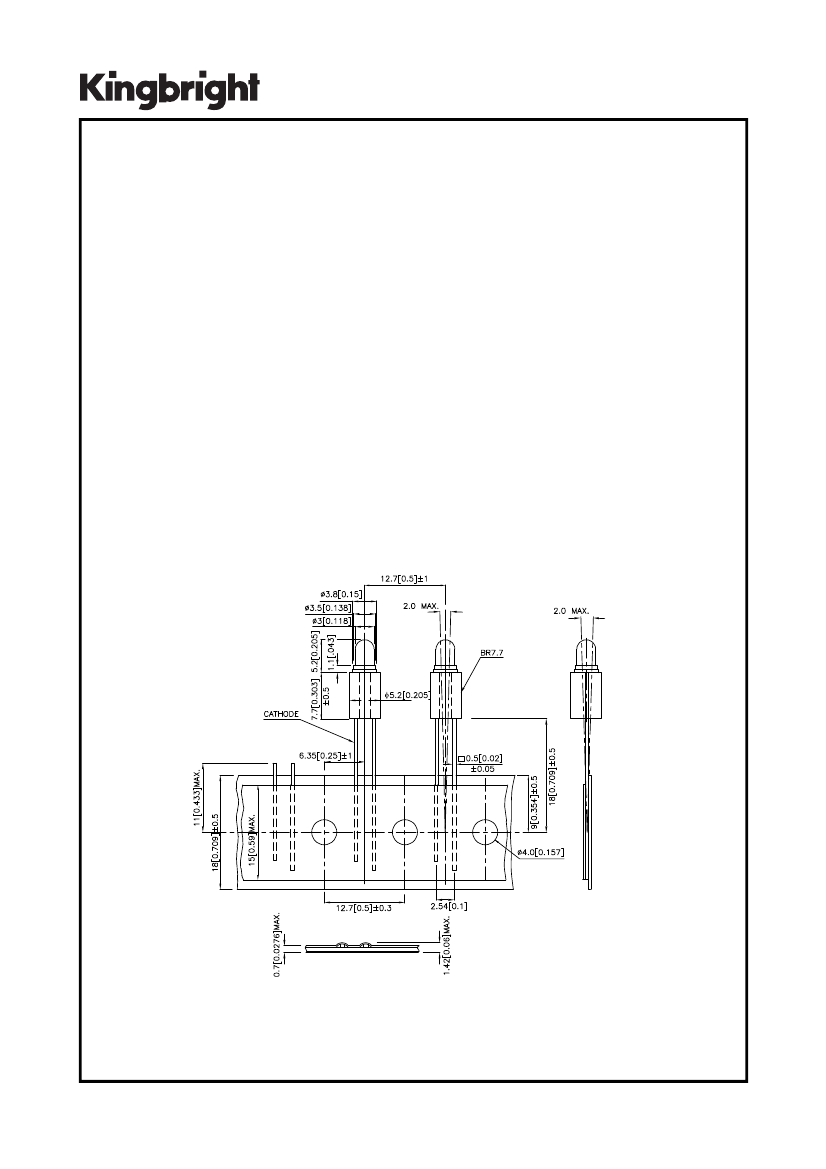

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: DSAC8448

APPROVED: J. Lu

REV NO: V.1

CHECKED: Allen Liu

DATE: JUN/25/2003

DRAWN: Y.H.LI

PAGE: 1 OF 7

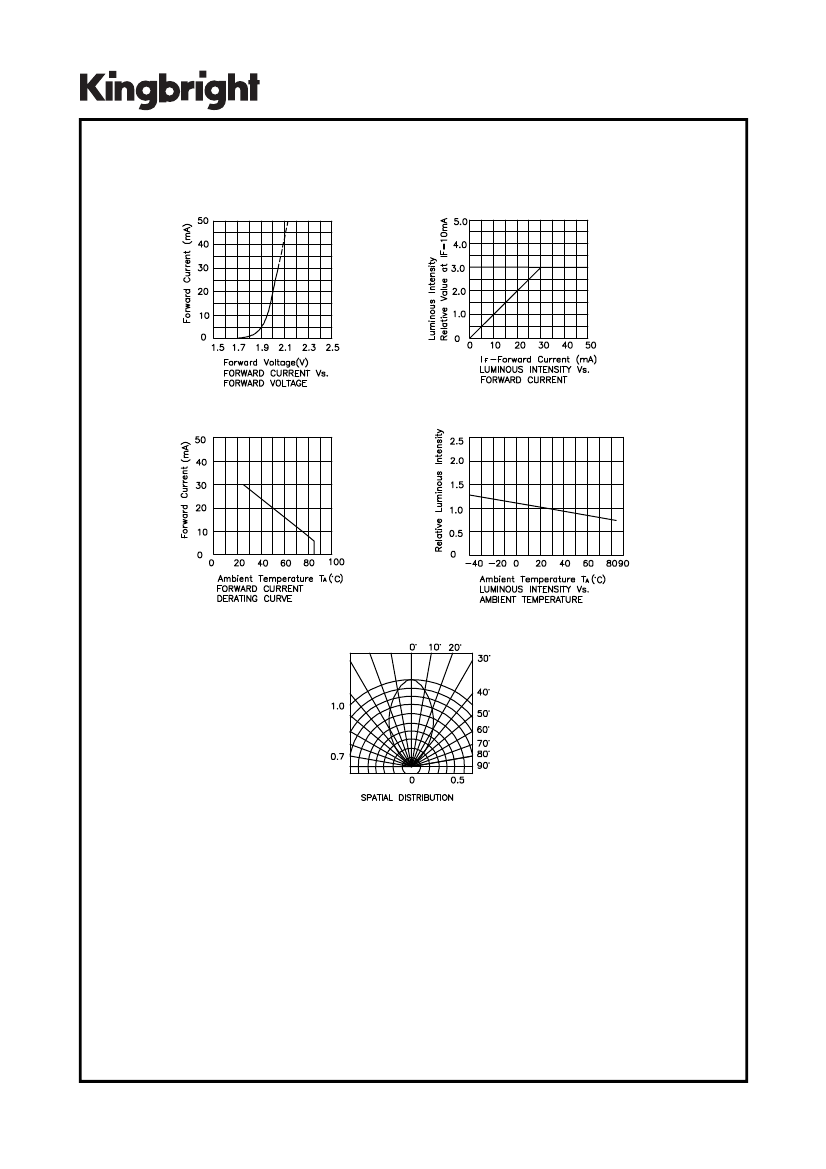

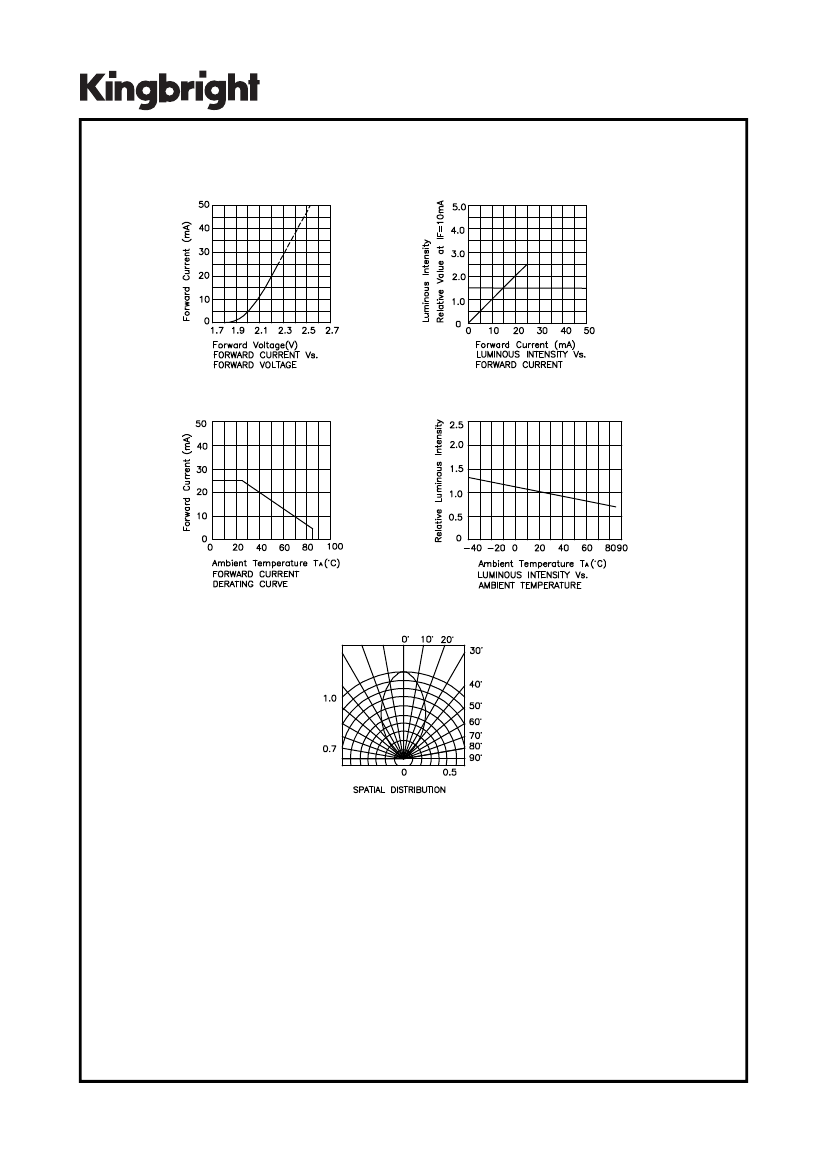

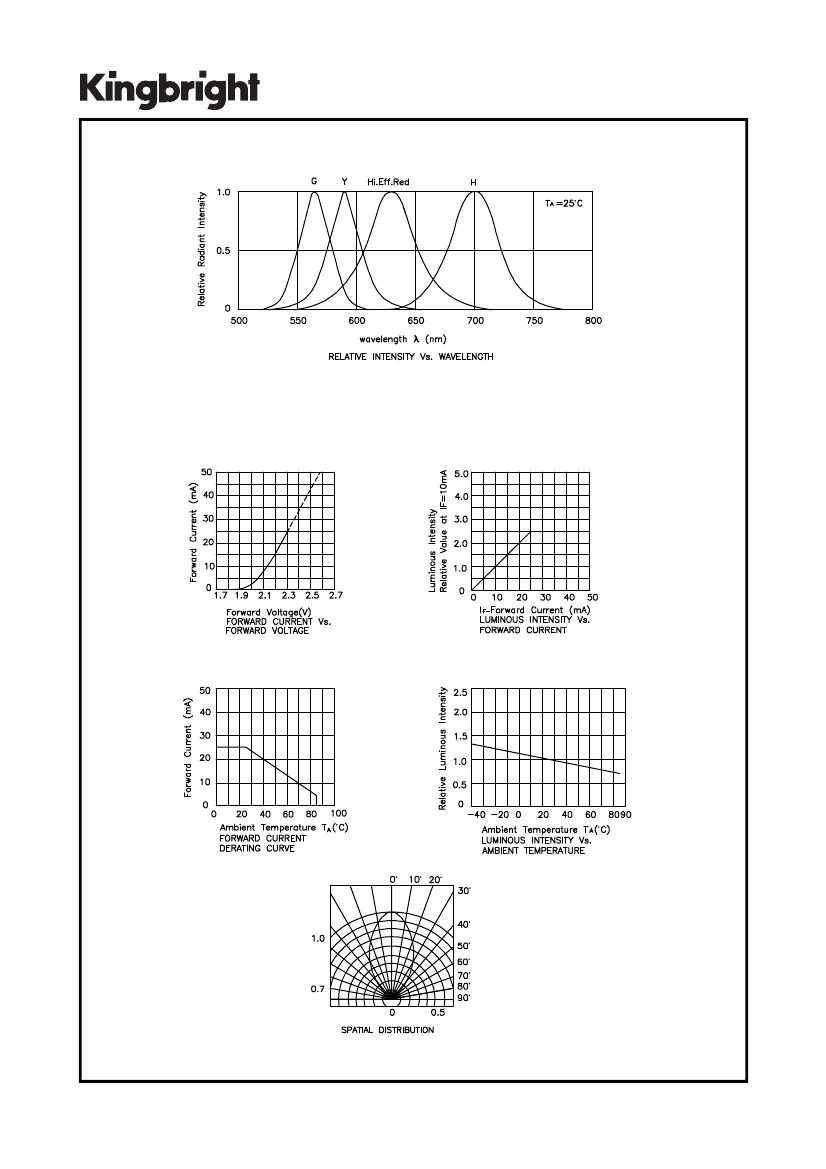

L-132XBR-7.7/ID-TNR2.54 Related Products

	L-132XBR-7.7/ID-TNR2.54	L-132XBR-7.7/HD-TNR2.54	L-132XBR-7.7/GD-TNR2.54	L-132XBR-7.7/YD-TNR2.54
Description	Single Color LED, High Efficiency Red, Diffused Red, T-1, 3mm,	Single Color LED, Bright Red, Diffused Red, T-1, 3mm,	Single Color LED, Green, Diffused, T-1, 3mm,	Single Color LED, Yellow, Diffused, T-1, 3mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
color	HIGH EFFICIENCY RED	BRIGHT RED	GREEN	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.025 A	0.025 A	0.03 A
Lens type	DIFFUSED RED	DIFFUSED RED	DIFFUSED	DIFFUSED
Nominal luminous intensity	25.0 mcd	3.0 mcd	15.0 mcd	15.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	12.9 mm	12.9 mm	12.9 mm	12.9 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	627 nm	700 nm	565 nm	590 nm
shape	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg
Maker	Kingbright	-	Kingbright	Kingbright

Recommended Resources

Basic form circuit diagram of voltage feedback of two-stage amplifier circuit

Multi-channel patrol detection control circuit a

FKL-32 type thyristor automatic excitation device circuit b

Multiple sets of light-emitting diode lantern chain circuits with different flashing frequencies a

Charger circuit diagram powered by switching power supply

New kitchen air cleaner circuit diagram
