K43C532 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> K43C532

K43C532: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.024A (COIL), 115VDC (COIL), 2760mW (COIL), 25A (CONTACT), 4000VDC (CONTACT), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size96KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

K43C532 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.024A (COIL), 115VDC (COIL), 2760mW (COIL), 25A (CONTACT), 4000VDC (CONTACT), PANEL MOUNT

K43C532 Parametric

Parameter Name	Attribute value
Brand Name	CII
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RF RATED; SWITCH FUNCTION SPDT ALSO AVAILABLE
Maximum coil current (DC)	0.024 A
Coil operating voltage (DC)	80 V
Coil power	2760 mW
Coil release voltage (DC)	5 V
Coil resistance	4700 Ω
Maximum coil voltage (DC)	115 V
Coil/Input Power Type	DC
Maximum contact current (AC)	25 A
Maximum contact current (DC)	25 A
Contact (DC) maximum rated R load	25A@4000VDC
Maximum contact voltage (DC)	4000 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	K43C532
Installation features	PANEL MOUNT
operating hours	10 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	MIL-R-83725
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	10 ms
surface mount	NO
Termination type	WIRE

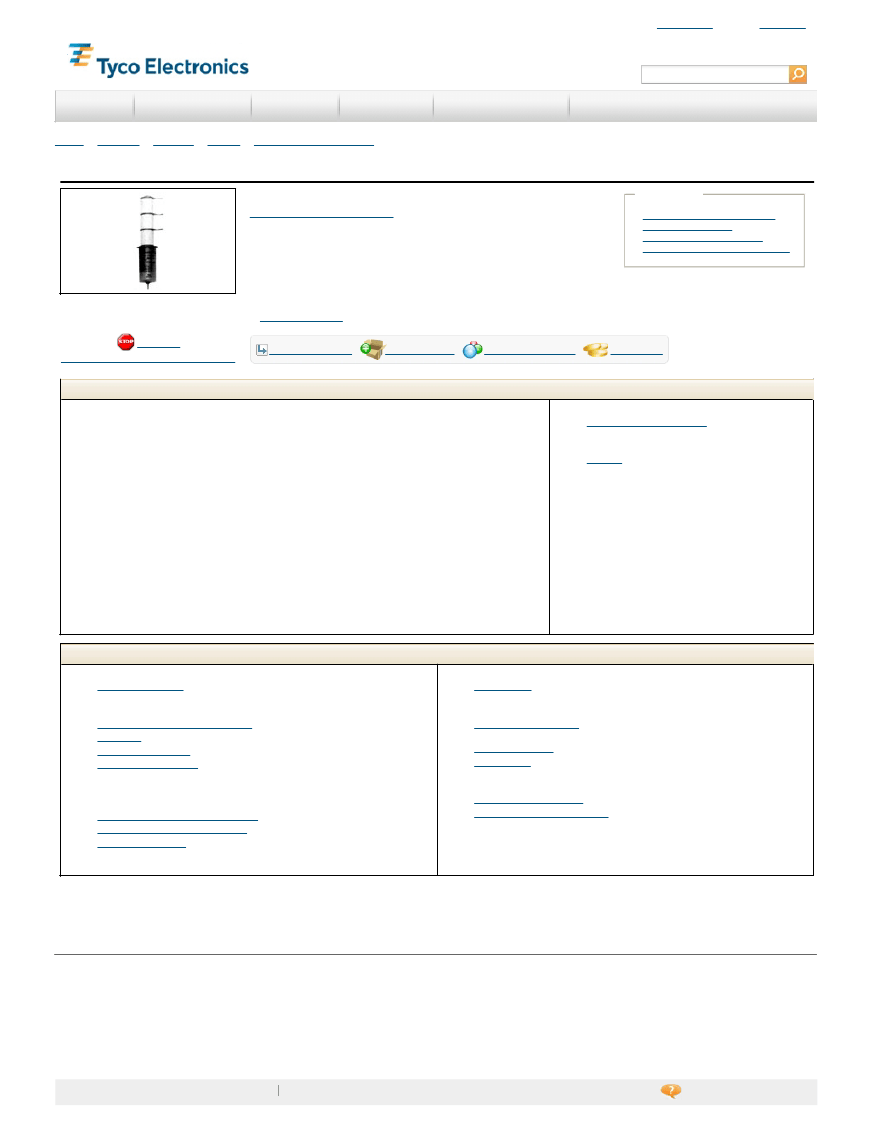

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se a rch by Ke yword or Pa rt #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Relays

Product Feature Selector

> Product Details

K43C532 Product Details

High Voltage Relays

Not EU R oHS or ELV C om plia nt

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

K43C532

(2-1618240-8)

T E I nternal N umber: 2 - 1 6 1 8 2 4 0 - 8

Product Highlights:

C ontact Arrangement = 1 Form B, SPST-NC , 1 N/C , 1

Form A, SPST-NO, 1 N/O, 1 Form C , SPDT, 1 C /O

Power Switching = Make Only, Yes, No

C ontact C urrent Rating = 0 - 25 Amps.

RF Rated

C oil Voltage = 115 VDC

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Obsolete

C ontact Product Information C enter

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

Additional Information:

Product Line Information

K43C532 Related Products

	K43C532	2-1618240-8
Description	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.024A (COIL), 115VDC (COIL), 2760mW (COIL), 25A (CONTACT), 4000VDC (CONTACT), PANEL MOUNT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 115VDC (COIL), 25A (CONTACT), PANEL MOUNT
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	RF RATED; SWITCH FUNCTION SPDT ALSO AVAILABLE	RF RATED; SWITCH FUNCTION SPDT ALSO AVAILABLE
Maximum coil voltage (DC)	115 V	115 V
Maximum contact current (AC)	25 A	25 A
Maximum contact current (DC)	25 A	25 A
Contact/Output Power Type	AC/DC	AC/DC
Manufacturer's serial number	K43C532	1618240
Installation features	PANEL MOUNT	PANEL MOUNT
Relay action	MOMENTARY	MOMENTARY
Relay function	SPST	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
surface mount	NO	NO
Termination type	WIRE	WIRE
