N Female Connector Crimp/Solder
Attachment For PE-C400, 0.400 inch
TECHNICAL DATA SHEET
N Female Connector Crimp/Solder Attachment For PE-C400, 0.400 inch
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
N Female
PE-C400,0.400 inch
Crimp/Solder
Straight
PE44534
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.57 [39.88]
0.67 [17]
0.11 [49.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
N Female
Phosphor Bronze, Gold
Brass, Nexcote
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
N Female Connector Crimp/Solder Attachment For PE-C400, 0.400 inch from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Connector Crimp/Solder Attachment For PE-C400, 0.400 inch PE44534
URL:
http://www.pasternack.com/n-female-standard-pe-c400-0.400-connector-pe44534-p.aspx
PE44534 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44534

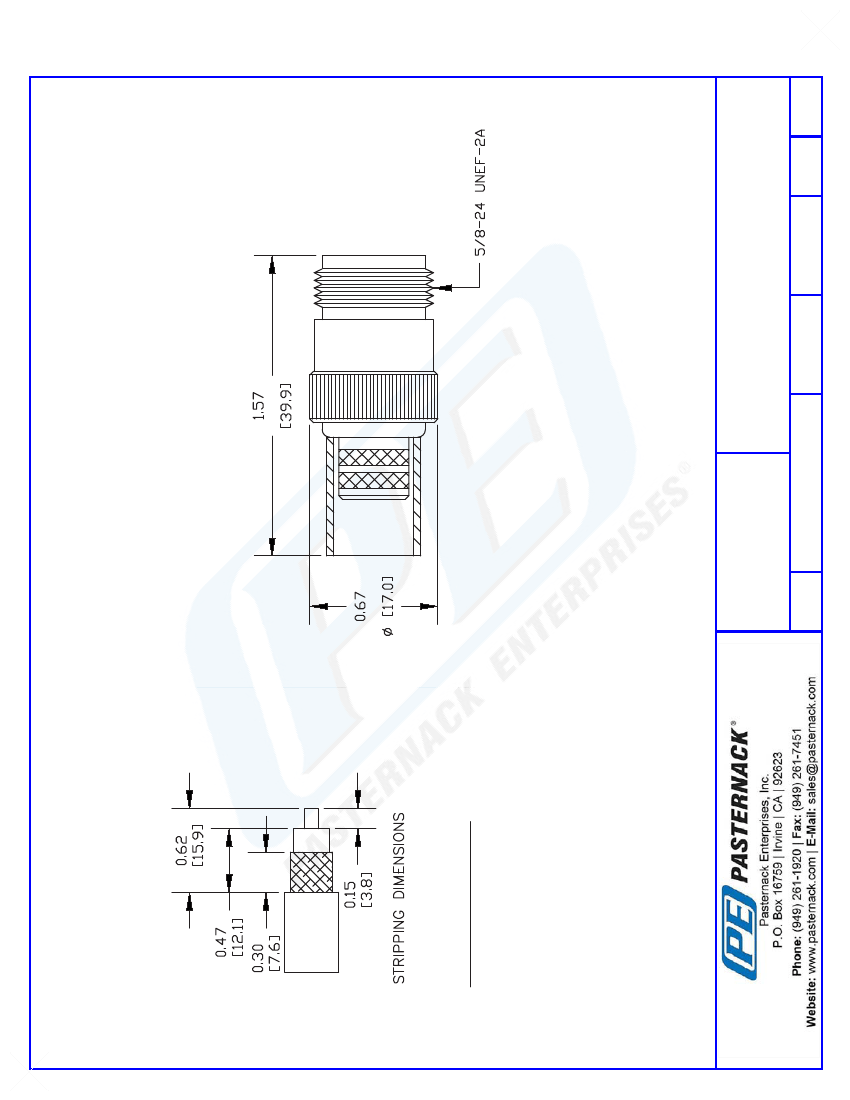

CAD Drawing
N Female Connector Crimp/Solder Attachment For PE-C400, 0.400 inch
PE44534 REV
CRIMP SIZES REQUIRED
CONTACT: .118" HEX CRIMP TOOL
FERRULE: .429" HEX CRIMP TOOL
PE44534
REV. B
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
081811
SCALE N/A
SIZE A
2231
2
