MCX Jack Connector Solder Attachment
0.042 inch End Launch PCB
TECHNICAL DATA SHEET
MCX Jack Connector Solder Attachment 0.042 inch End Launch PCB
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
MCX Jack
MIL-C-39012
0.042 inch End Launch
Solder
Straight
PE4893
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 6
50
335
1,000
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
0.336 [8.53]
0.25 [6.35]
0.25 [6.35]
0.003 [1.36]
MCX Jack
500
Beryllium Copper, Gold
30µ in. minimum
Brass, Gold
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Mating Cycles
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
MCX Jack Connector Solder Attachment 0.042 inch End Launch PCB PE4893
PE4893 REV 01
1
MCX Jack Connector Solder Attachment
0.042 inch End Launch PCB
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4893
MCX Jack Connector Solder Attachment 0.042 inch End Launch PCB from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of
the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
MCX Jack Connector Solder Attachment 0.042 inch End Launch PCB PE4893
URL:
http://www.pasternack.com/mcx-jack-standard-0.042-end-launch-connector-pe4893-p.aspx
PE4893 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
MCX Jack Connector Solder Attachment 0.042 inch End Launch PCB
PE4893

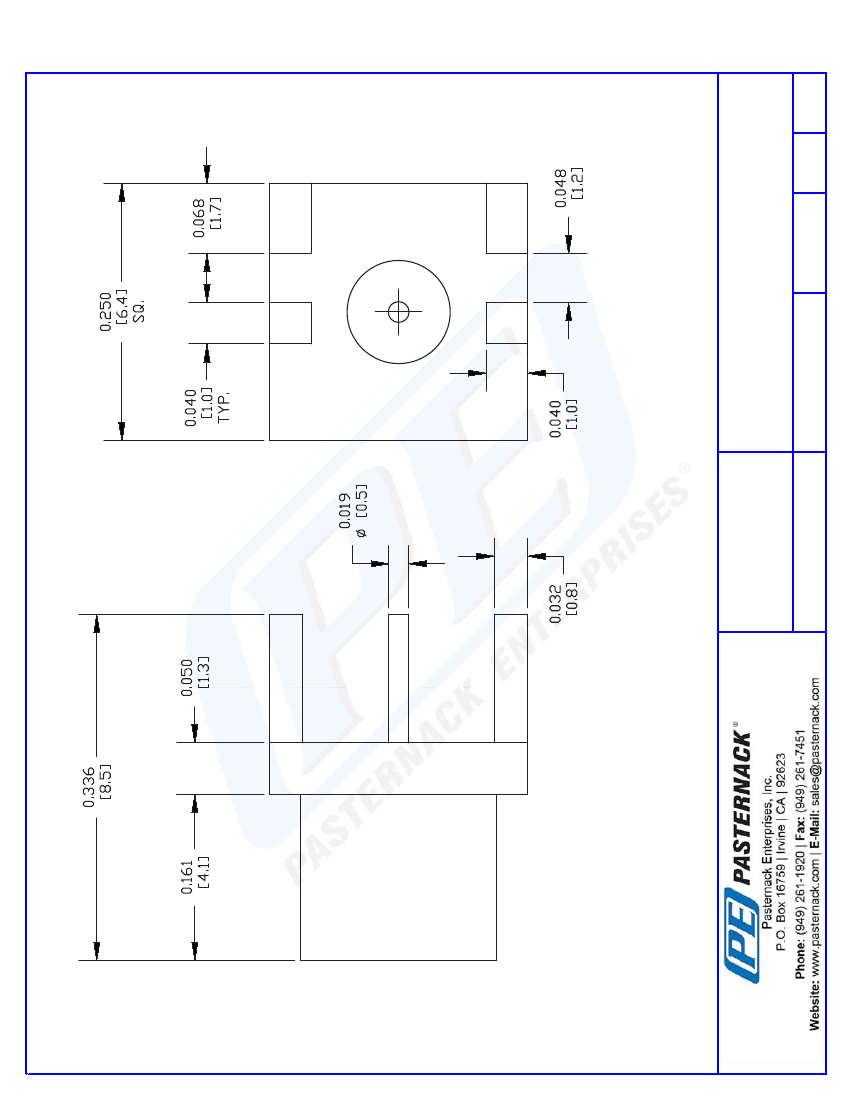

CAD Drawing
PE4893 REV 01
PE4893
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
061302
SCALE N/A
SIZE A
127
3
