MMCX Plug Right Angle Connector Crimp/Solder
Attachment For RG174, RG316, RG188
TECHNICAL DATA SHEET
MMCX Plug Right Angle Connector Crimp/Solder Attachment For RG174, RG316, RG188
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
MMCX Plug
BS EN 122340
RG174,RG316,RG188
Crimp/Solder
Right Angle
PE4898
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 6
50
1.35:1
250
500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-55 to +155
0.41 [10.41]
0.276 [7]
0.137 [3.48]
0.003 [1.36]
MMCX Plug
Brass, Gold
30µ in. minimum
Brass, Gold
3µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
MMCX Plug Right Angle Connector Crimp/Solder Attachment For RG174, RG316, RG188
PE4898
PE4898 REV
1
MMCX Plug Right Angle Connector Crimp/Solder
Attachment For RG174, RG316, RG188
TECHNICAL DATA SHEET
URL:
http://www.pasternack.com/mmcx-plug-standard-rg174-rg316-rg188-connector-pe4898-p.aspx
MMCX Plug Right Angle Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has
same day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of
RF, microwave and fiber optic products.
PE4898
PE4898 REV
2
PE4898

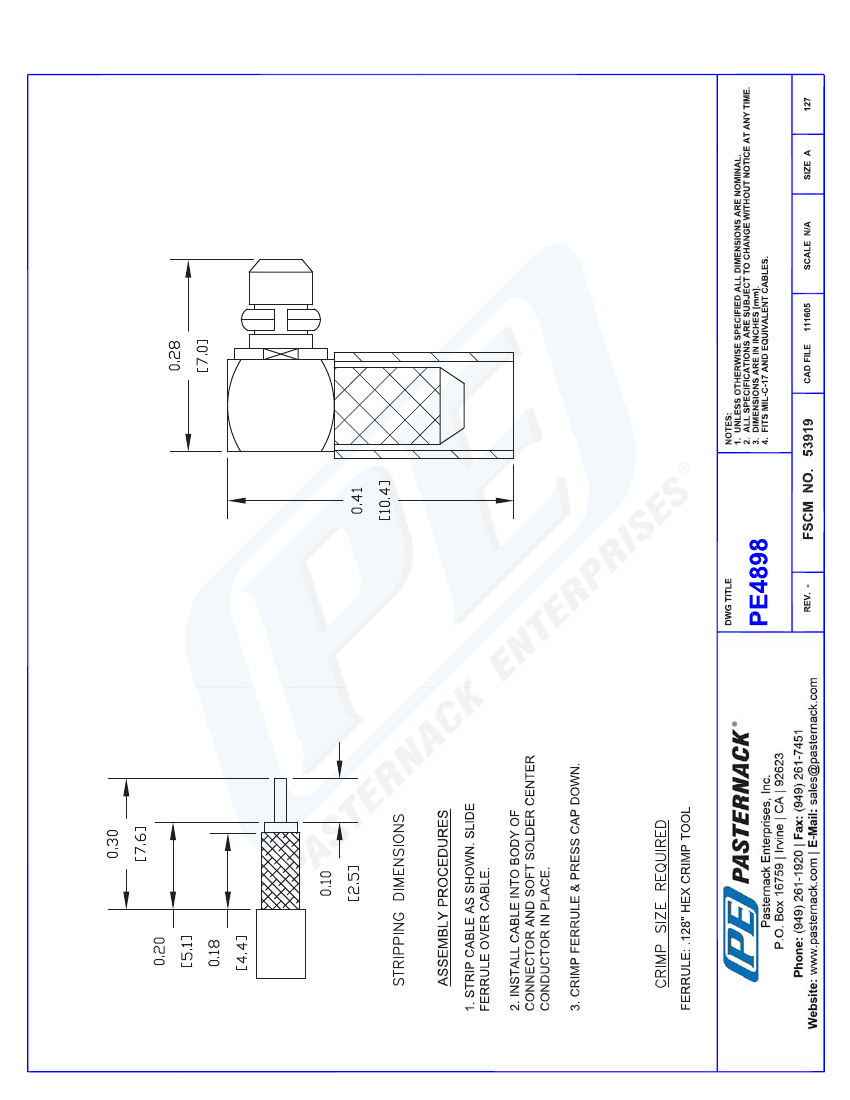

CAD Drawing
MMCX Plug Right Angle Connector Crimp/Solder Attachment For RG174, RG316, RG188
© 2012 Pasternack Enterprises All Rights Reserved
PE4898 REV
3
