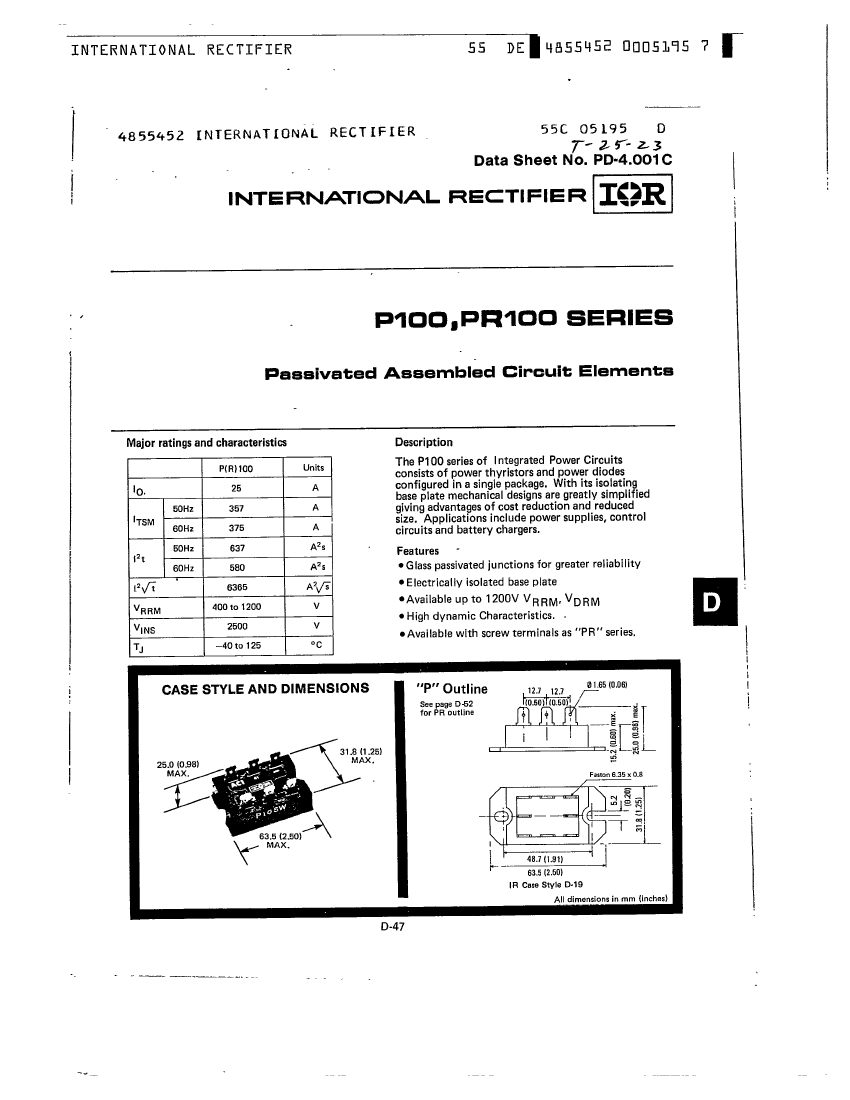

PR102 Overview

Silicon Controlled Rectifier, 12000mA I(T), 600V V(RRM),

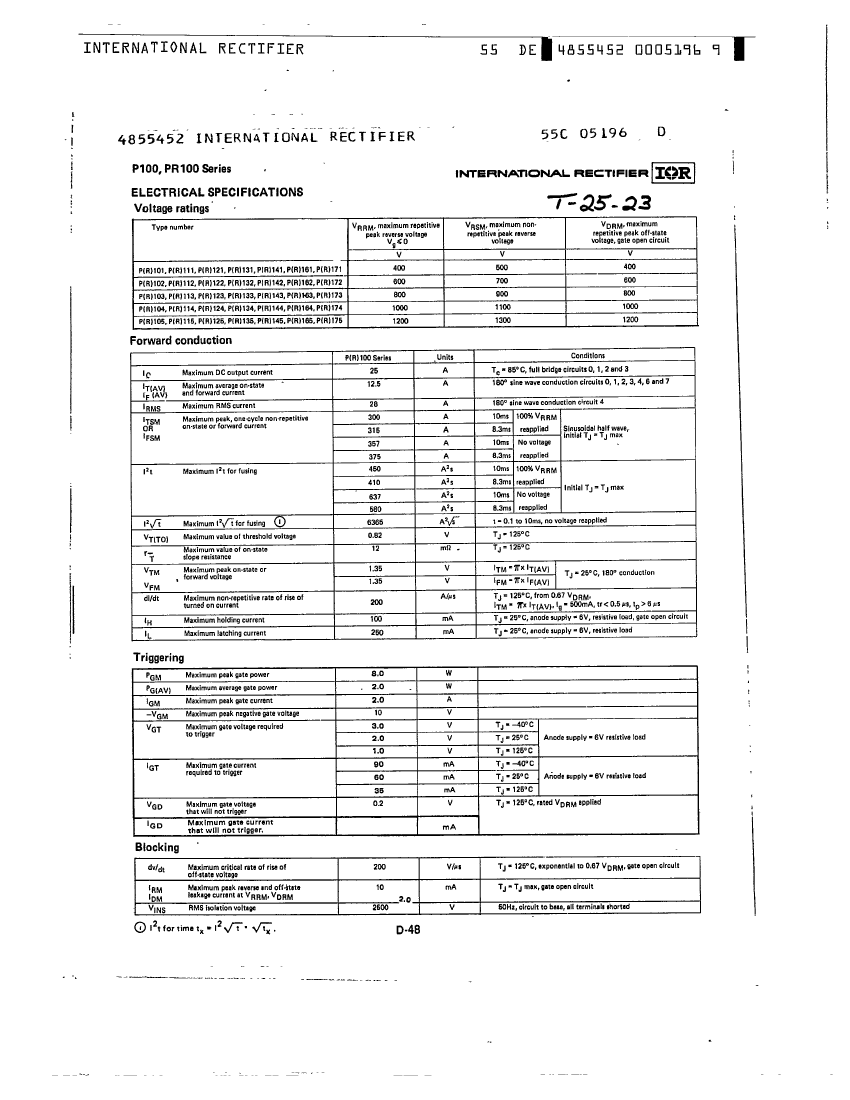

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	,
Reach Compliance Code	unknown

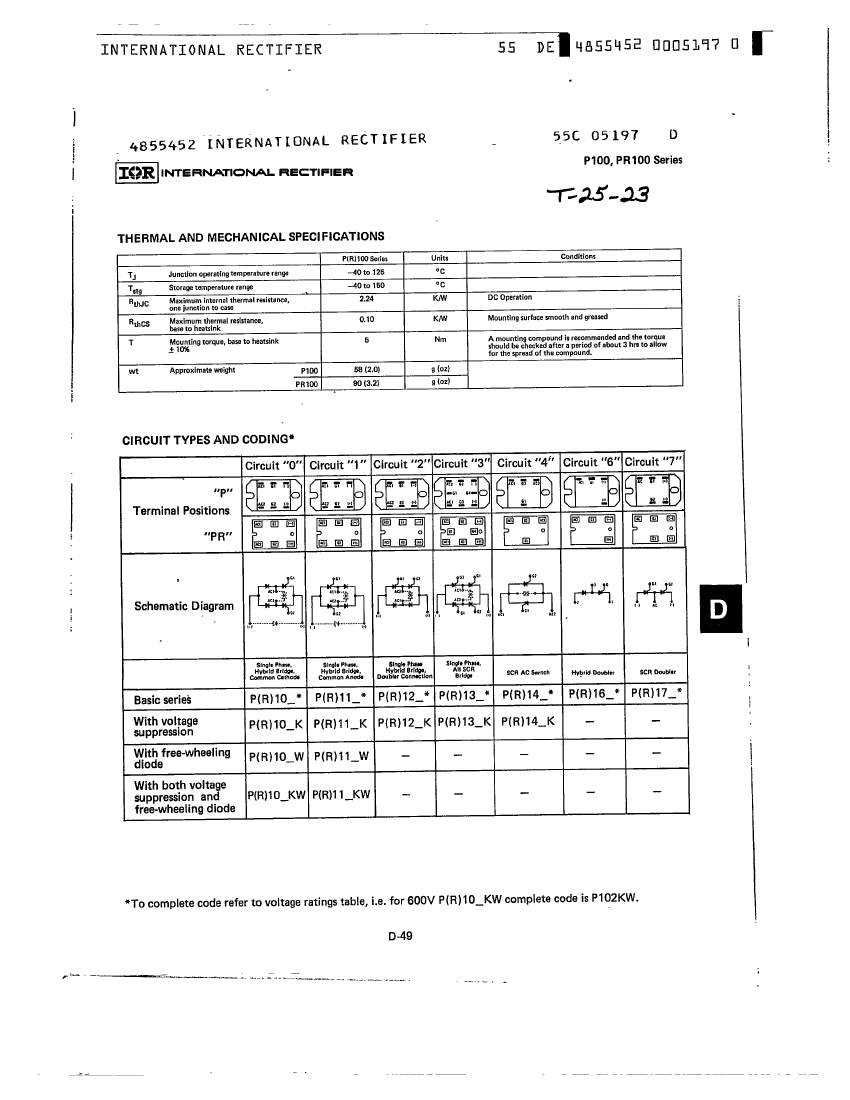

Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE

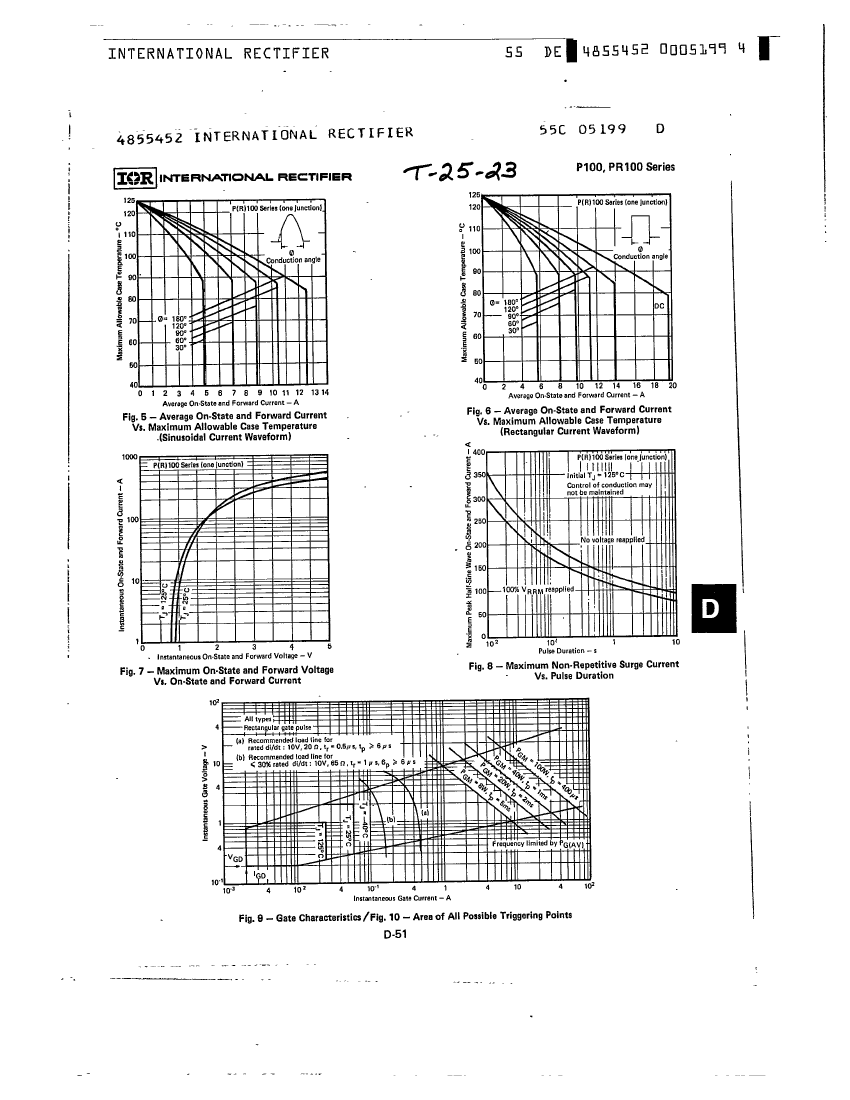

Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2 V
Quick connection description	0
Description of screw terminals	2G-2AK-CA-CK
Maximum holding current	100 mA
Maximum leakage current	10 mA

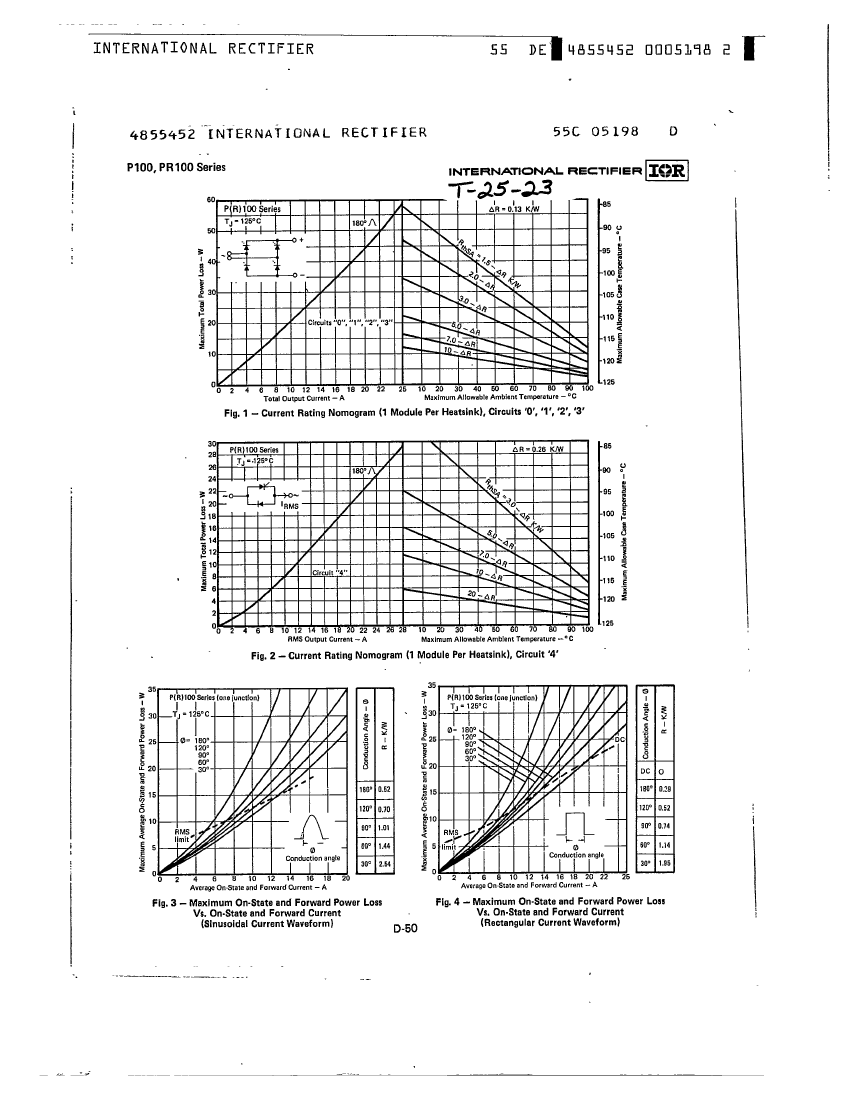

On-state non-repetitive peak current	375 A
Maximum on-state voltage	1.35 V
Maximum on-state current	12000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Repeated peak reverse voltage	600 V
