SMA Male Right Angle Connector Solder Attachment
For PE-SR401AL, PE-SR401FL, RG401
TECHNICAL DATA SHEET
SMA Male Right Angle Connector Solder Attachment For PE-SR401AL, PE-SR401FL, RG401
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMA Male
PE-SR401AL,PE-SR401FL,RG401
Solder/Solder
Right Angle
PE4932
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.73 [18.54]
0.378 [10]
0.71 [18.03]
0.02 [9.07]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Hex Size, in
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
SMA Male
Brass, Gold
Brass, Nickel
5/16
5 [0.57]
Brass, Gold
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Male Right Angle Connector Solder Attachment For PE-SR401AL, PE-SR401FL, RG401 from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male Right Angle Connector Solder Attachment For PE-SR401AL, PE-SR401FL, RG401
PE4932
URL:
http://www.pasternack.com/sma-male-standard-pe-sr401al-pe-sr401fl-rg401-connector-pe4932-p.aspx
PE4932 REV
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4932

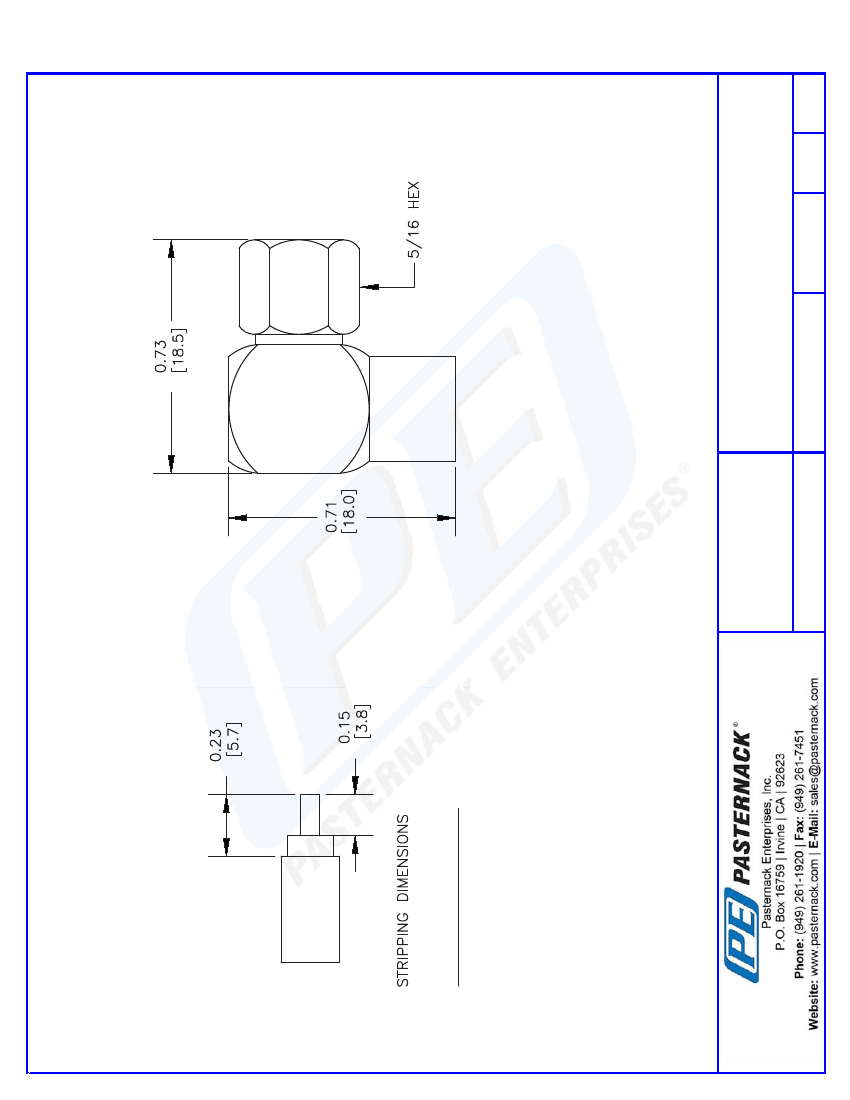

CAD Drawing
SMA Male Right Angle Connector Solder Attachment
For PE-SR401AL, PE-SR401FL, RG401
PE4932 REV
ASSEMBLY PROCEDURES
1.
STRIP CABLE AS SHOWN. DO NOT NICK
CENTER CONDUCTOR.
2.
INSERT CABLE INTO BODY UNTIL OUTER
CONDUCTOR BOTTOMS OUT WITH BODY
SHOULDER. CENTER CONDUCTOR WILL
PROTRUDE INTO CONTACT SLOT.
3.
SOLDER CONTACT INTO SLOT. SOLDER
OUTER CONDUCTOR TO BODY. PRESS DOWN
CAP.
PE4932
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
062402
SCALE N/A
SIZE A
XXXX
2
