BNC Male Connector Solder Attachment For
PE-047SR, PE-SR047AL, PE-SR047FL
TECHNICAL DATA SHEET
BNC Male Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
MIL-C-39012
PE-047SR,PE-SR047AL,PE-SR047FL
Solder/Solder
Straight
PE4974
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
DC to 4
50
500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.76 [19.3]
0.57 [14.48]
0.02 [9.07]
BNC Male
Gold
MIL-G-45204
Brass, Nickel
Brass, Gold
MIL-G-45204
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
BNC Male Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL PE4974
PE4974 REV 01
1
BNC Male Connector Solder Attachment For
PE-047SR, PE-SR047AL, PE-SR047FL
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4974
BNC Male Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
BNC Male Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL PE4974
URL:
http://www.pasternack.com/bnc-male-standard-pe-047sr-pe-sr047al-pe-sr047fl-connector-pe4974-p.aspx
PE4974 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
BNC Male Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL
PE4974

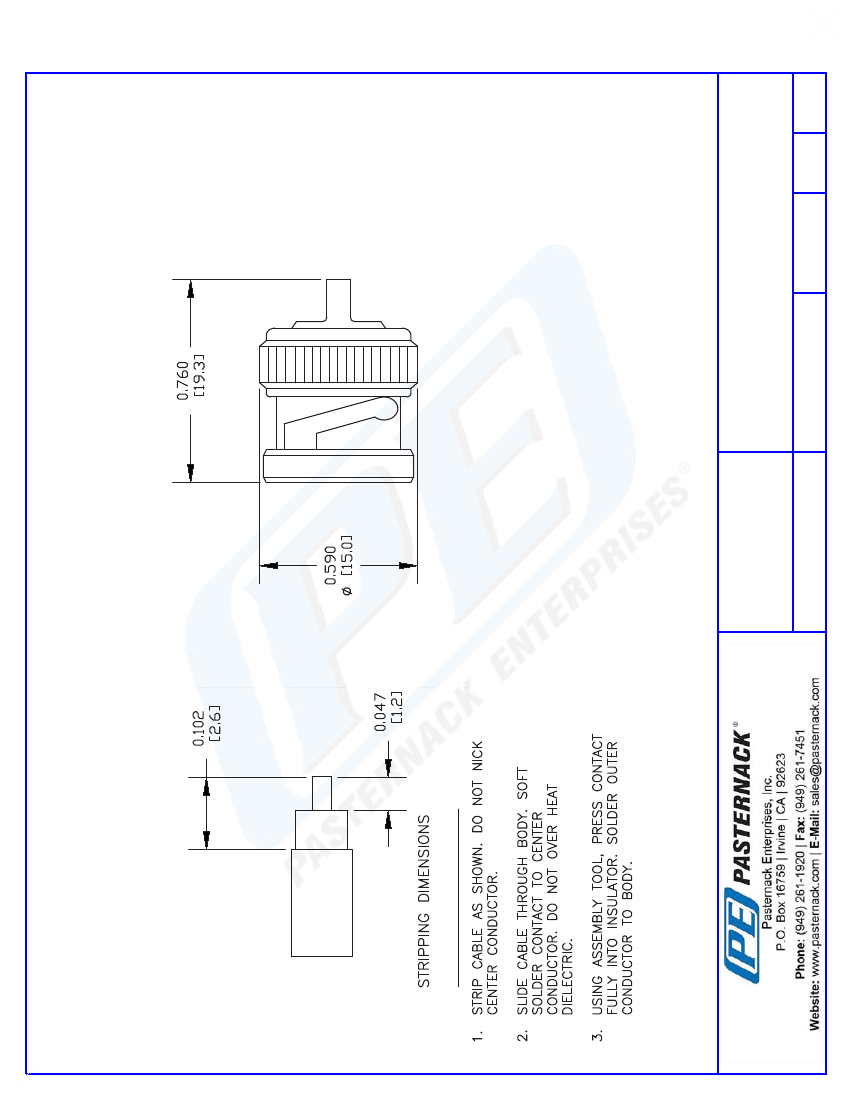

CAD Drawing
PE4974 REV 01
ASSEMBLY PROCEDURES
PE4974
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
111802
SCALE N/A
SIZE A
XXXX
3
