SC Male Connector Clamp/Solder Attachment For RG14, RG217
TECHNICAL DATA SHEET
SC Male Connector Clamp/Solder Attachment For RG14, RG217
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SC Male
MIL-C-39012
RG14,RG217
Clamp/Solder
Straight
PE4976
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.8 [45.72]
0.865 [21.97]
0.151 [68.49]
SC Male
Silver
QQ-S-365
Brass, Nickel
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SC Male Connector Clamp/Solder Attachment For RG14, RG217 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SC Male Connector Clamp/Solder Attachment For RG14, RG217 PE4976
URL:
http://www.pasternack.com/sc-male-standard-rg14-rg217-connector-pe4976-p.aspx
PE4976 REV 01
1
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
ASSEMBLY PROCEDURES
SC Male Connector Clamp/Solder Attachment For RG14, RG217
PE4976

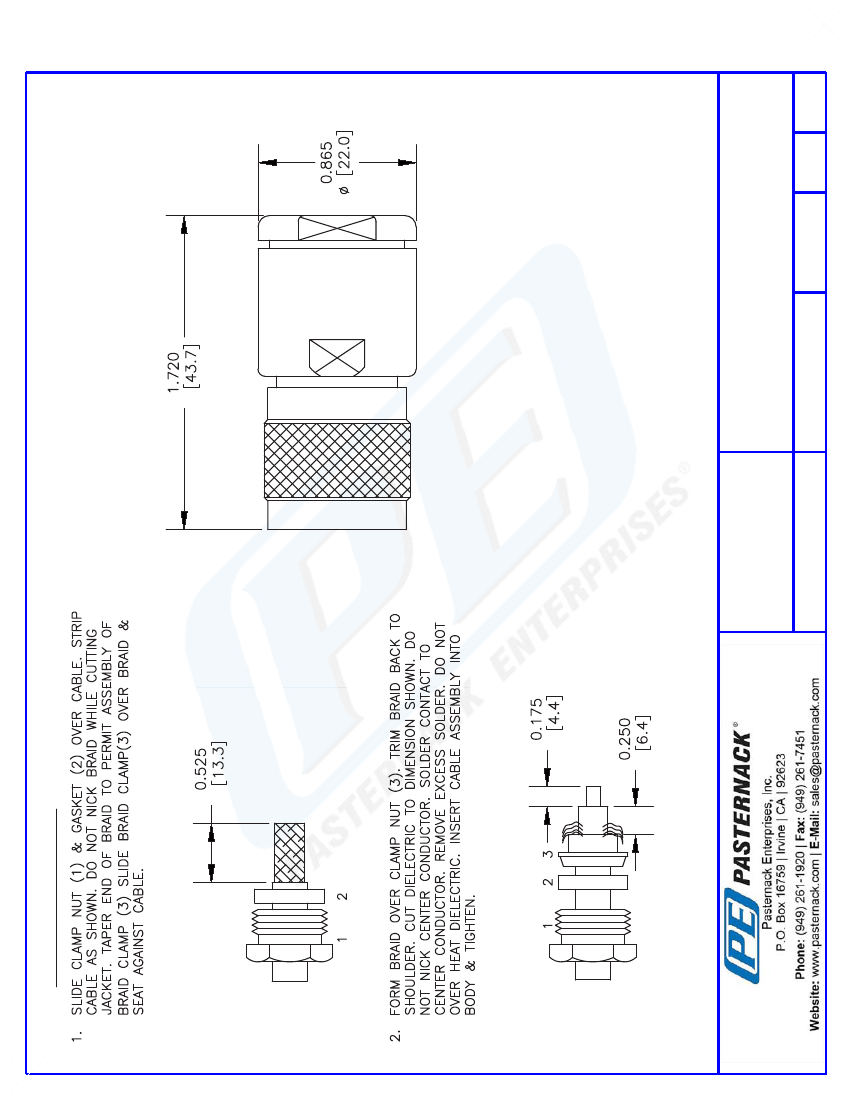

CAD Drawing
PE4976 REV 01
PE4976
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
061702
SCALE N/A
SIZE A
127
2
