PE4979: DescriptionSC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393; CategoryThe connector The connector; File Size215KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE4979 Overview

SC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

PE4979 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG8; RG9; RG214; RG215; RG225; RG393
Characteristic impedance	50 Ω
Connector type	RF SC CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

SC Male Right Angle Connector Clamp/Solder Attachment

For RG213, RG214, RG8, RG9, RG225, RG393

TECHNICAL DATA SHEET

PE4979

SC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SC Male

RG213,RG214,RG8,RG9,RG225,RG393

Clamp/Solder

Right Angle

Electrical Specifications

Impedance, Ohms

50

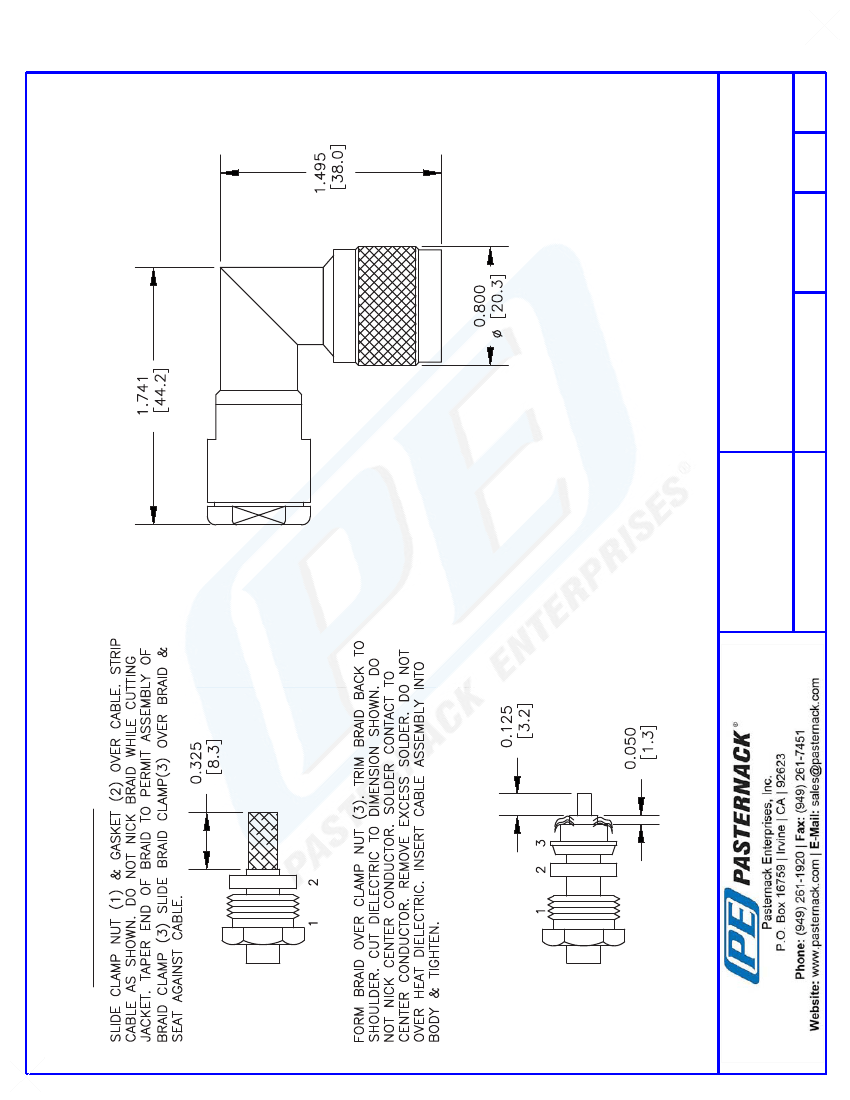

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

.

1.865 [47.37]

0.8 [20.32]

1.495 [37.97]

0.199 [90.26]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Coupling Nut Material and Plating

Body Material and Plating

Dielectric Type

SC Male

Silver

Brass, Nickel

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

SC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393 from Pasternack

Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain

a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9,

RG225, RG393 PE4979

URL:

http://www.pasternack.com/sc-male-standard-rg213-rg214-rg8-rg9-rg225-rg393-connector-pe4979-p.aspx

PE4979 REV 01

1
