PE4983 Overview

3.5mm Female Connector Clamp/Solder Attachment For PE-SR402AL, PE-SR402FL, RG402

Preview

Download Datasheet

View All

3.5mm Female Connector Clamp/Solder Attachment

For PE-SR402AL, PE-SR402FL, RG402

TECHNICAL DATA SHEET

3.5mm Female Connector Clamp/Solder Attachment For PE-SR402AL, PE-SR402FL, RG402

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

3.5mm Female

PE-SR402AL,PE-SR402FL,RG402

Clamp/Solder

Straight

PE4983

Electrical Specifications

Impedance, Ohms

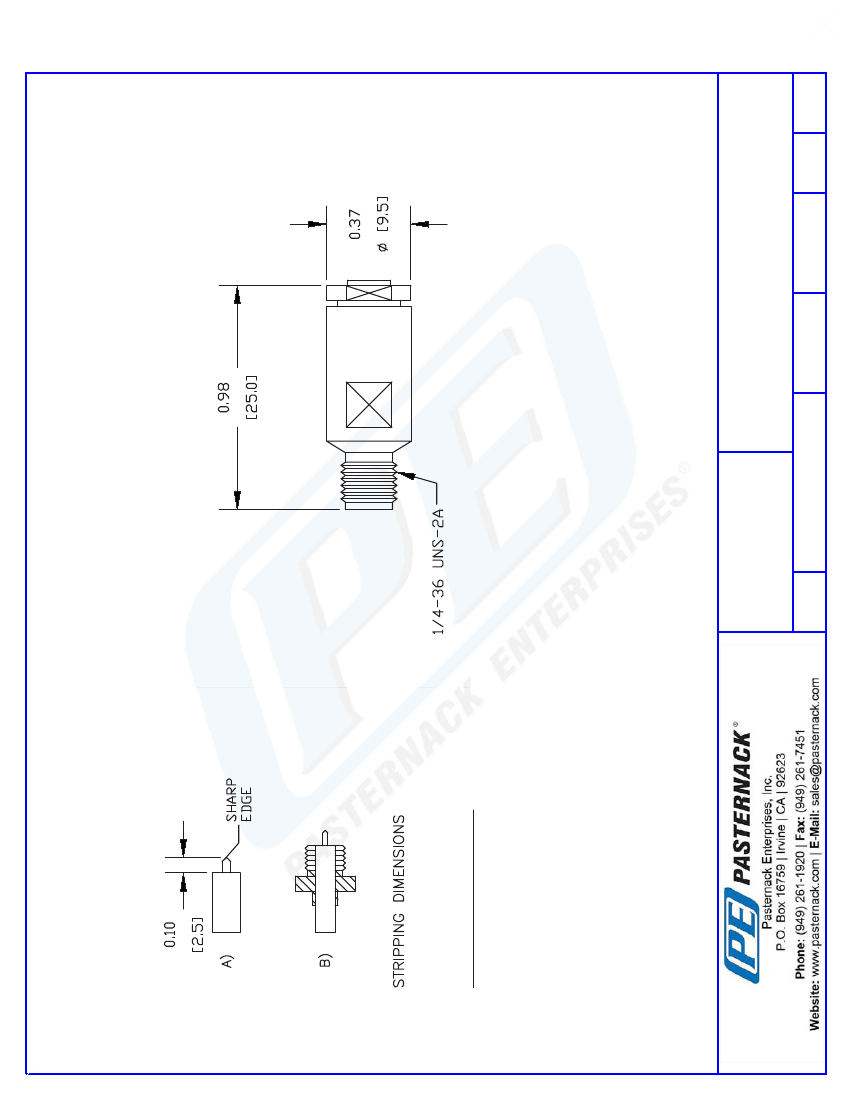

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

0.905 [22.99]

0.375 [9.53]

0.02 [9.07]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

3.5mm Female

Gold

Passivated Stainless Steel

Noryl

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

3.5mm Female Connector Clamp/Solder Attachment For PE-SR402AL, PE-SR402FL, RG402 from Pasternack Enterprises

has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%

availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

3.5mm Female Connector Clamp/Solder Attachment For PE-SR402AL, PE-SR402FL, RG402

PE4983

URL:

http://www.pasternack.com/3.5mm-female-standard-pe-sr402al-pe-sr402fl-rg402-connector-pe4983-p.aspx

PE4983 REV 01
