DS/DSR - DP/DPL - DA SERIES
DIP SWITCHES
Specifications
ELECTRICAL SPECIFICATIONS
MATERIALS
• Current/voltage rating :
- non-switching : 100mA 50VDC
- switching : 50mA 24VDC
• Contact resistance (at 100mA) :
50mΩ max. at initial
100mΩ after life test
• Insulation resistance (at 100VDC +/-15V) :
100 MΩ min. between adjacent terminals
• Dielectric strength : 500VDC for one minute
• Capacitance : 5 pF between adjacent terminals
• Circuit : single pole, single throw
• Electrical life : 2.000 cycles min. per switch
GENERAL SPECIFICATIONS
• Case, UL94-VO, glass fiber
filled PBT, black
• Cover : UL94-VO,glass fiber
filled PBT, red
• Actuator : UL94-VO, glass
fiber filled PBT, white
• Terminals/contacts : gold over
nickel plated phosphor bronze
• Terminal seal : epoxy
• Tape seal : polyester film
F
• Operating force :
DP models : 4N
DS/DA models : 8N
• Travel : 2 mm (.078)
• Mechanical life : 5.000 cycles min. per switch
• Vibration test : MIL-STD-202F method 201A
• Shock test : MIL-STD-202F method 213B, conditon A
• Operating temperature : -20°C to +70°C
RECOMMENDED SOLDERING AND CLEANING PROCESSES
• Hand soldering : 320°C max. for 2 seconds max. (30 watt iron max.)
• Wave soldering : 260°C max. for 5 seconds max.
• Force rinse, high agitation or triple bath cleaning method (with
tape seal, option T)
: freon TF or TE. When vapor
methods are used, do not subject switch to solvents above 51°C.
Note : keep switches in "OFF" position during soldering and cleaning for best results.
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
Packaging unit
: standard IC tubes
Quantities depending on model. See table below.
DS/DSR
DS(R)-02
DS(R)-03
DS(R)-04
DS(R)-05
DS(R)-06
DS(R)-07
DS(R)-08
DS(R)-09
DS(R)-10
DS(R)-12
Quantity
73
52
40
33
28
24
21
19
17
14
DS-T/DSR-T
Quantity
DS(R)-02T
DS(R)-03T
DS(R)-04T
DS(R)-05T
DS(R)-06T
DS(R)-07T
DS(R)-08T
DS(R)-09T
DS(R)-10T
DS(R)-12T
70
50
40
32
28
24
21
19
17
14
DA
DA-02
DA-03
DA-04
DA-05
DA-06
DA-07
DA-08
DA-09
DA-10
DA-12
Quantity
73
52
40
33
28
24
21
19
17
14
DA-T
DA-02T
DA-03T
DA-04T
DA-05T
DA-06T
DA-07T
DA-08T
DA-09T
DA-10T
DA-12T
Quantity
70
52
39
32
28
24
21
19
17
14
DP/DPL(-T)
DP(L)-02
DP(L)-02T
DP(L)-03(T)
DP(L)-04(T)
DP(L)-05(T)
DP(L)-06(T)
DP(L)-08(T)
DP(L)-10(T)
DP(L)-12(T)
Quantity
70
67
50
39
32
25
21
17
14
F-6
A P E M

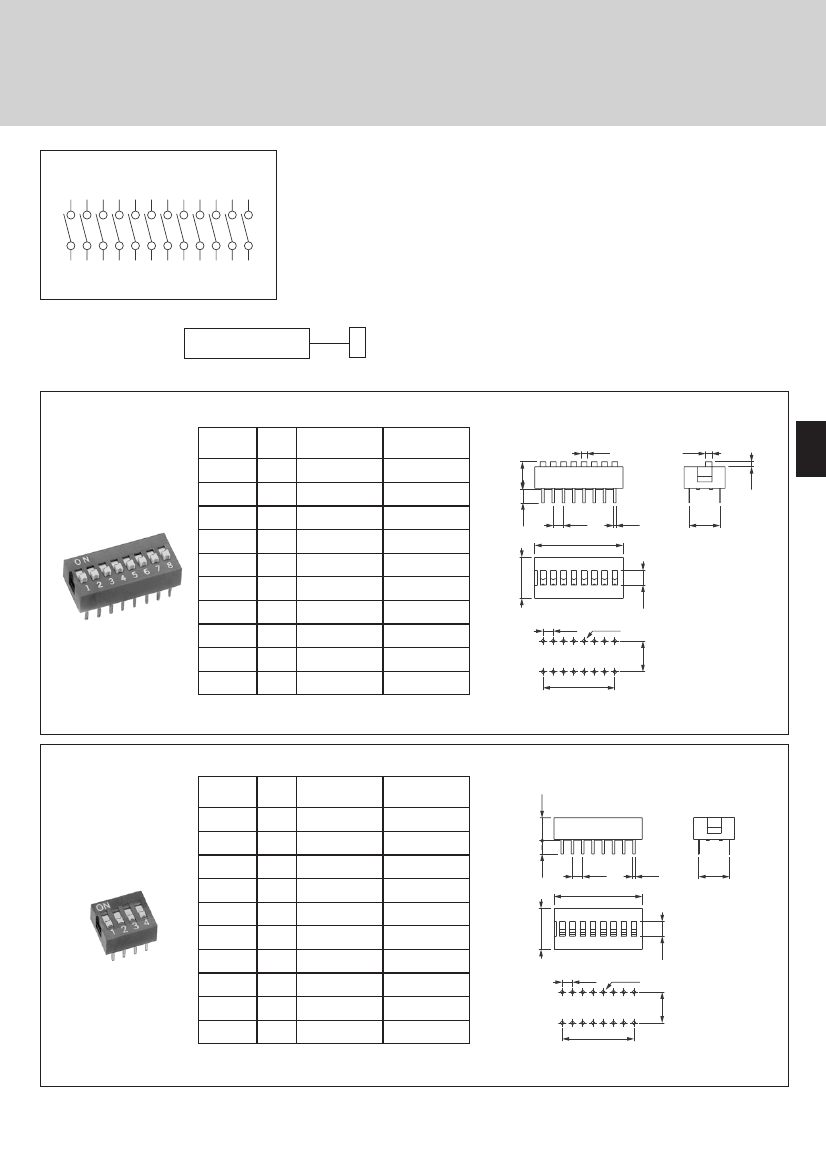

DS/DSR SERIES
STANDARD DIP SWITCHES
•
Raised or recessed actuator
• 2 to 12 positions
1
2
3
4
5
6
7
8
9
10
11
12
MODEL
STRUCTURE
Raised actuator : DS
No.
Model No pos. Dim "A" (max.)
DS-02
DS-03
DS-04
DS-05
DS-06
DS-07
DS-08
DS-09
DS-10
DS-12
2
3
4
5
6
7
8
9
10
12
6,60 (.259)
9,14 (.359)
11,68 (.459)
14,22 (.559)
16,76 (.659)
19,30 (.759)
21,84 (.859)
24,38 (.959)
Dim. "B"
6.90
(.271)
1.40
(.055)
1.60
(.062)
F
1.25
(.049)
2,54 (.100)
5,08 (.200)
7,62 (.300)
10,16 (.400)
12,70 (.500)
15,24 (.600)
17,78 (.700)
20,32 (.800)
3.30 mini
(.129 min)
2.54
(.100)
A
ON
0.60
(.023)
7.62
(.300)
10.16 Maxi
(.400 MAX)
2.54
(.100)
Ø0.97
(.038 DIA)
26,92 (1.059) 22,86 (.900)
32,00 (1.259) 27,94 (1.100)
B
Top tape sealed : add "T" after model number.
Recessed actuator : DSR
5.65
(.222)
Model No No.
pos.
DSR-02
DSR-03
DSR-04
DSR-05
DSR-06
DSR-07
DSR-08
DSR-09
DSR-10
DSR-12
2
3
4
5
6
7
8
9
10
12
Dim "A"
6,60 (.259)
9,14 (.359)
11,68 (.459)
14,22 (.559)
16,76 (.659)
19,30 (.759)
21,84 (.859)
24,38 (.959)
Dim. "B"
2,54 (.100)
5,08 (.200)
7,62 (.300)
10,16 (.400)
12,70 (.500)
15,24 (.600)
17,78 (.700)
20,32 (.800)
3.30 mini
(.129 min)
2.54
(.100)
A
ON
7.62
(.300)
0.60
(.023)
3.60
(.141)
1 2 3 4 5 6 7 8
7.62
(.300)
10.16 Maxi
(.400 MAX)
2.54
(.100)
Ø0.97
(.038 DIA)
26,92 (1.059) 22,86 (.900)
32,00 (1.259) 27,94 (1.100)
B
Top tape sealed : add "T" after model number.
7.62
(.300)
3.60
(.141)
1 2 3 4 5 6 7 8
A P E M
F-7

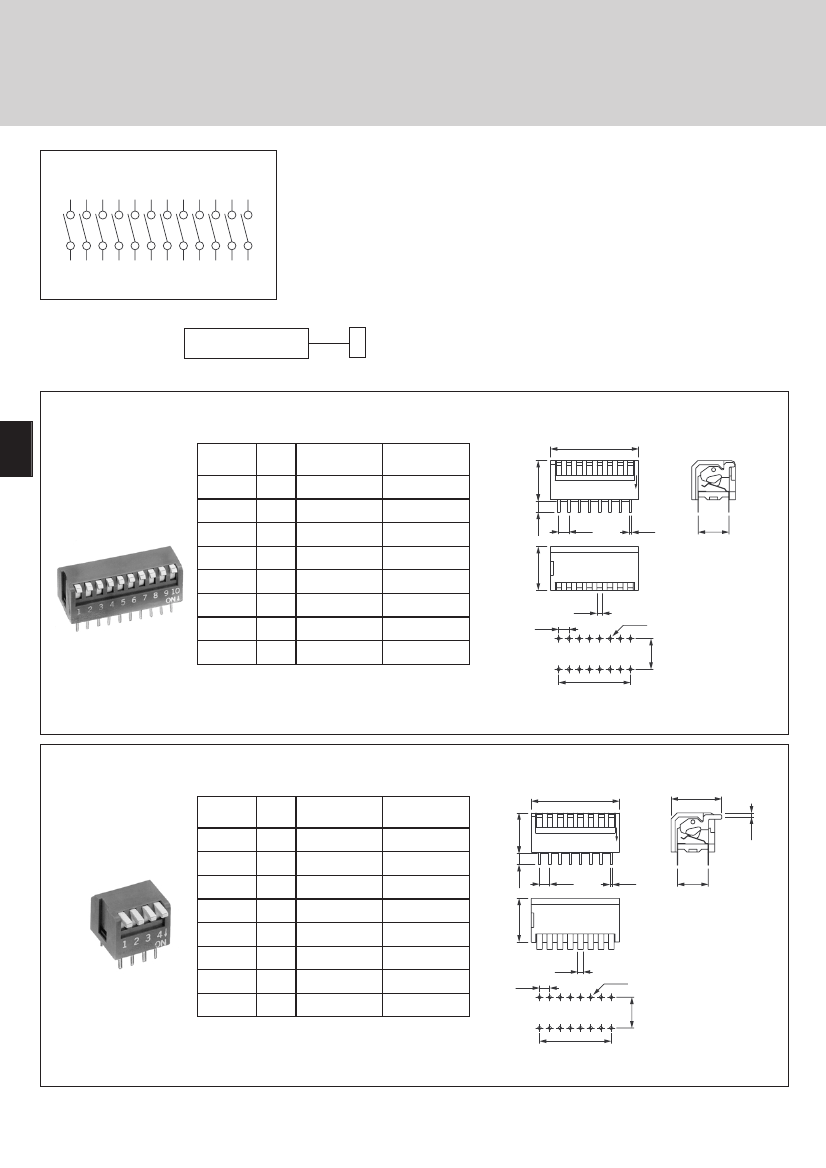

DP/DPL SERIES
PIANO DIP SWITCHES
•
Short or long actuator
• 2 to 12 positions
1
2
3
4
5
6
7
8
9
10
11
12
Note : Push down for "ON" is our standard type.
Push down for "OFF" is also available on special order,
consult factory.
MODEL
STRUCTURE
Short actuator : DP
F
Model No No.
pos.
DP-02
DP-03
DP-04
DP-05
DP-06
DP-08
DP-10
DP-12
2
3
4
5
6
8
10
12
A
Dim "A" max.
6,63 (.261)
9,17 (.361)
11,71 (.461)
14,25 (.561)
16,8 (.661)
21,87 (.861)
Dim. "B"
2,54 (.100)
5,08 (.200)
7,62 (.300)
10,16 (.400)
12,70 (.500)
17,78 (.700)
2.54
(.100)
2.80
(.110)
10.20
(.401)
1 2
3 4 5
6 7 8
ON
0.60
(.023)
7.62
(.300)
2.54
(.100)
10.80
(.425)
1.40
(.055)
26,95 (1.061) 22,86 (.900)
32,03 (1.261) 27,94 (1.100)
Ø0.97
(.038 DIA)
B
Top tape sealed : add "T" after model number.
Long actuator : DPL
Model No No.
pos.
DPL-02
DPL-03
DPL-04
DPL-05
DPL-06
DPL-08
DPL-10
DPL-12
2
3
4
5
6
8
10
12
A
12.57
(.494)
Dim "A" max.
6,63 (.261)
9,17 (.361)
11,71 (.461)
14,25 (.561)
16,8 (.661)
21,87 (.861)
Dim. "B"
2,54 (.100)
5,08 (.200)
7,62 (.300)
10,16 (.400)
12,70 (.500)
17,78 (.700)
2.54
(.100)
2.80
(.110)
10.20
(.401)
1 2
3 4 5
6 7 8
ON
0.60
(.023)
7.62
(.300)
1.05
(.041)
7.62
(.300)
B
2.54
(.100)
10.80
(.425)
1.40
(.055)
26,95 (1.061) 22,86 (.900)
32,03 (1.261) 27,94 (1.100)
Ø0.97
(.038 DIA)
Top tape sealed : add "T" after model number.
F-8
A P E M
7.62
(.300)
Analogue and Mixed Signal
