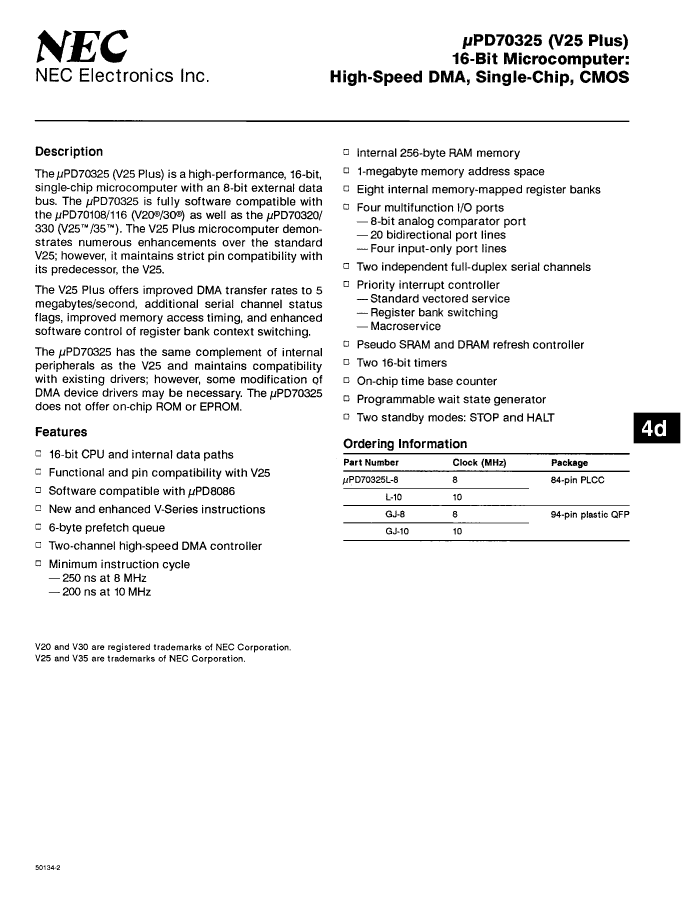

Microcontroller, 16-Bit, 8MHz, CMOS, PQFP94, PLASTIC, QFP-94

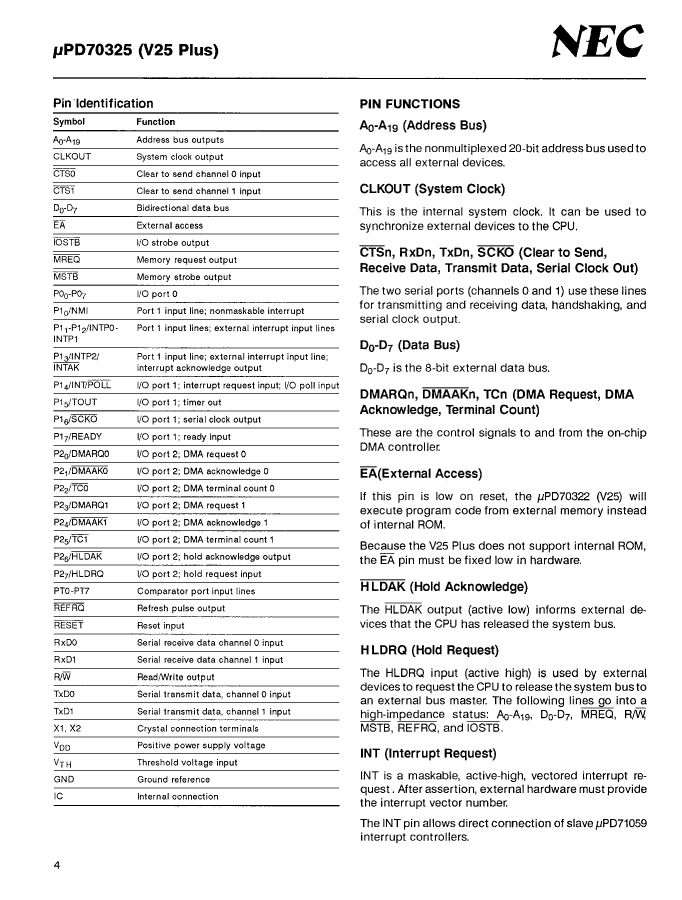

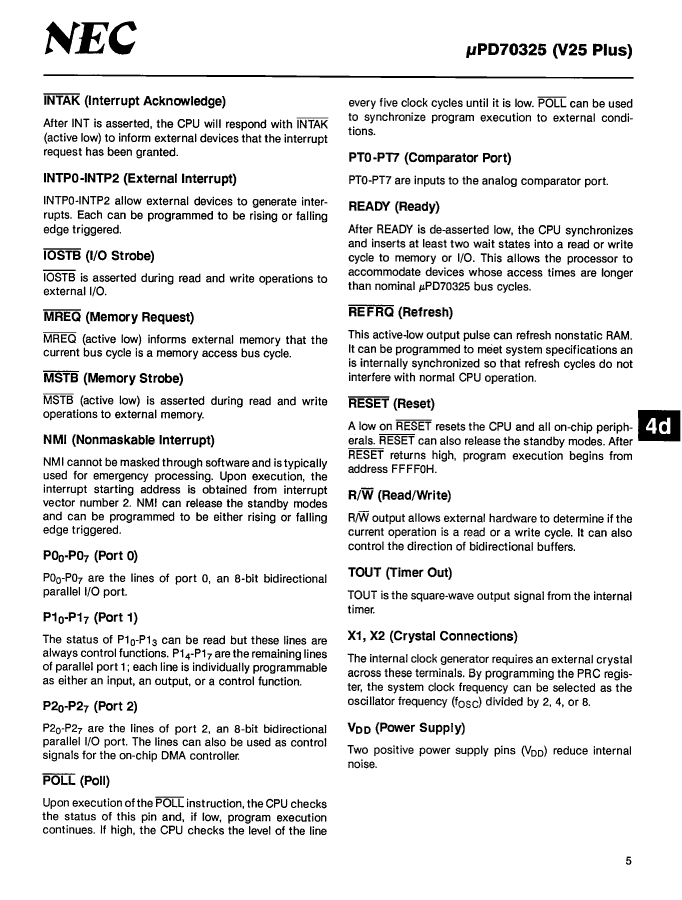

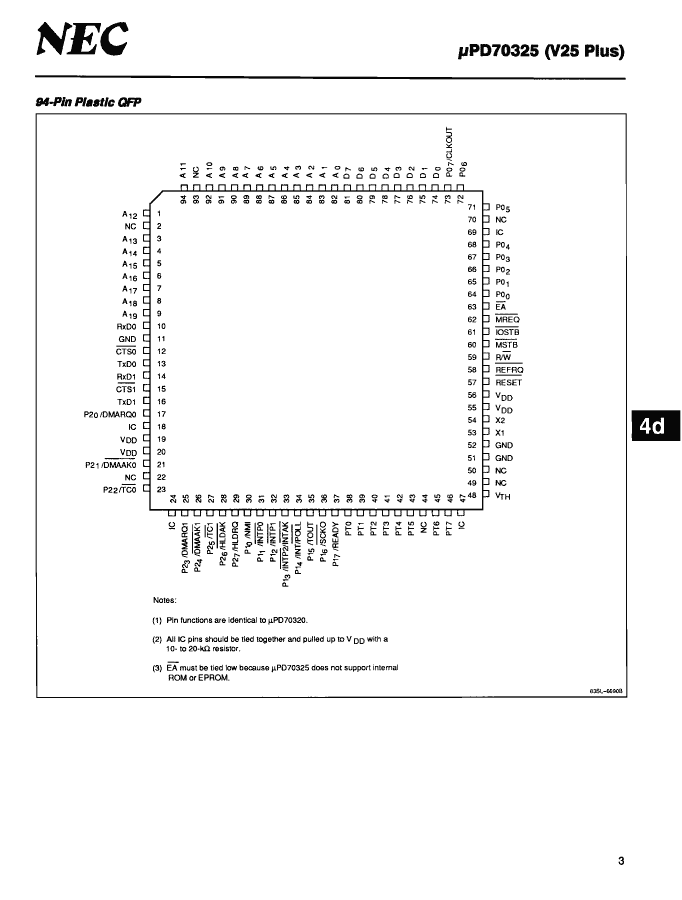

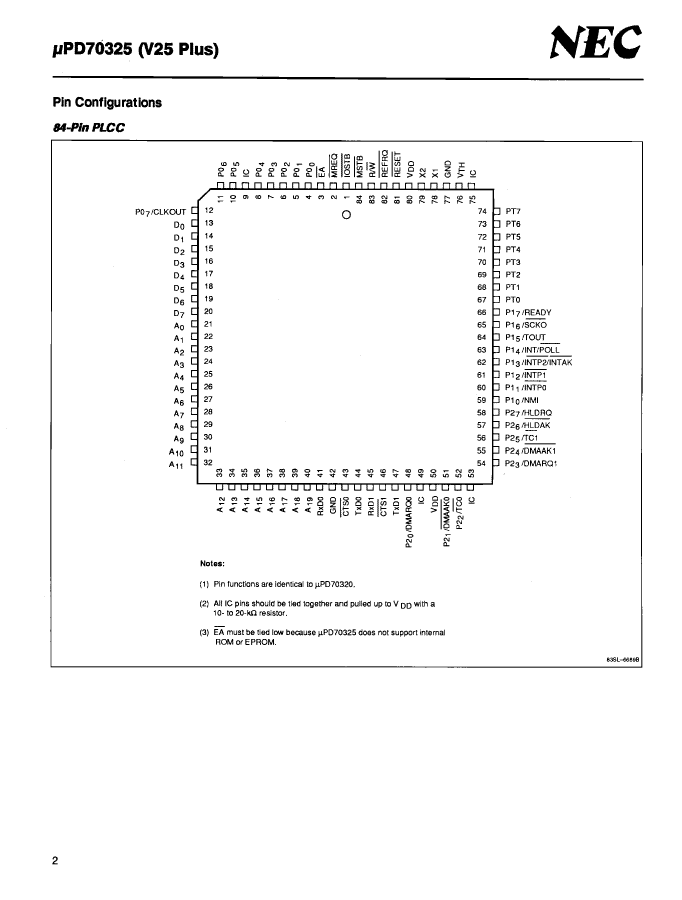

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NEC Electronics |
| package instruction | PLASTIC, QFP-94 |
| Reach Compliance Code | compliant |
| Has ADC | NO |
| Other features | DRAM REFRESH CONTROLLER |
| Address bus width | 20 |
| bit size | 16 |
| boundary scan | NO |
| maximum clock frequency | 16 MHz |
| DAC channel | NO |
| DMA channel | YES |
| External data bus width | 8 |
| Format | FIXED POINT |
| Integrated cache | NO |
| JESD-30 code | S-PQFP-G94 |
| JESD-609 code | e0 |
| length | 20 mm |
| low power mode | YES |
| Number of DMA channels | 2 |
| Number of external interrupt devices | 5 |
| Number of I/O lines | 24 |
| Number of serial I/Os | 2 |
| Number of terminals | 94 |
| Number of timers | 2 |
| On-chip data RAM width | 8 |
| On-chip program ROM width | |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -10 °C |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QFP |
| Package shape | SQUARE |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| RAM (number of words) | 256 |
| rom(word) | 0 |
| Maximum seat height | 4 mm |
| speed | 8 MHz |
| Maximum slew rate | 120 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | TIN LEAD |
| Terminal form | GULL WING |
| Terminal pitch | 0.8 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 20 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| UPD70325GJ-8 | UPD70325L-10 | UPD70325GJ-10 | UPD70325L-8 | |
|---|---|---|---|---|
| Description | Microcontroller, 16-Bit, 8MHz, CMOS, PQFP94, PLASTIC, QFP-94 | Microcontroller, 16-Bit, 10MHz, CMOS, PQCC84, PLASTIC, LCC-84 | Microcontroller, 16-Bit, 10MHz, CMOS, PQFP94, PLASTIC, QFP-94 | Microcontroller, 16-Bit, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics |
| package instruction | PLASTIC, QFP-94 | PLASTIC, LCC-84 | PLASTIC, QFP-94 | PLASTIC, LCC-84 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Has ADC | NO | NO | NO | NO |
| Other features | DRAM REFRESH CONTROLLER | DRAM REFRESH CONTROLLER | DRAM REFRESH CONTROLLER | DRAM REFRESH CONTROLLER |
| Address bus width | 20 | 20 | 20 | 20 |
| bit size | 16 | 16 | 16 | 16 |
| boundary scan | NO | NO | NO | NO |
| maximum clock frequency | 16 MHz | 20 MHz | 20 MHz | 16 MHz |
| DAC channel | NO | NO | NO | NO |
| DMA channel | YES | YES | YES | YES |
| External data bus width | 8 | 8 | 8 | 8 |
| Format | FIXED POINT | FIXED POINT | FIXED POINT | FIXED POINT |
| Integrated cache | NO | NO | NO | NO |
| JESD-30 code | S-PQFP-G94 | S-PQCC-J84 | S-PQFP-G94 | S-PQCC-J84 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| length | 20 mm | 29.2862 mm | 20 mm | 29.2862 mm |
| low power mode | YES | YES | YES | YES |
| Number of DMA channels | 2 | 2 | 2 | 2 |
| Number of external interrupt devices | 5 | 5 | 5 | 5 |
| Number of I/O lines | 24 | 24 | 24 | 24 |
| Number of serial I/Os | 2 | 2 | 2 | 2 |
| Number of terminals | 94 | 84 | 94 | 84 |
| Number of timers | 2 | 2 | 2 | 2 |
| On-chip data RAM width | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -10 °C | -10 °C | -10 °C | -10 °C |
| PWM channel | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QFP | QCCJ | QFP | QCCJ |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLATPACK | CHIP CARRIER | FLATPACK | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| RAM (number of words) | 256 | 256 | 256 | 256 |
| Maximum seat height | 4 mm | 4.6 mm | 4 mm | 4.6 mm |
| speed | 8 MHz | 10 MHz | 10 MHz | 8 MHz |
| Maximum slew rate | 120 mA | 130 mA | 130 mA | 120 mA |
| Maximum supply voltage | 5.5 V | 5.25 V | 5.25 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.75 V | 4.75 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | GULL WING | J BEND | GULL WING | J BEND |
| Terminal pitch | 0.8 mm | 1.27 mm | 0.8 mm | 1.27 mm |
| Terminal location | QUAD | QUAD | QUAD | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 20 mm | 29.2862 mm | 20 mm | 29.2862 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Base Number Matches | - | 1 | 1 | 1 |
