HN Male Right Angle Connector Clamp/Solder Attachment
For RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE4480
HN Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
HN Male
MIL-C-39012
RG58,RG55,RG141,RG142,RG223,RG400
Clamp/Solder
Right Angle
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.75 [44.45]
0.9 [22.86]
1.465 [37.21]
0.178 [80.74]
HN Male
Silver
QQ-S-365
Brass, Nickel
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
HN Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142,
RG223, RG400 PE4480
PE4480 REV
1
HN Male Right Angle Connector Clamp/Solder Attachment
For RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4480
HN Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
HN Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142,
RG223, RG400 PE4480
URL:
http://www.pasternack.com/hn-male-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4480-p.aspx
PE4480 REV
2
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1. SLIDE CLAMP NUT (1), WASHER (2) & GASKET (3)
OVER CABLE. STRIP CABLE AS SHOWN. DO NOT
NICK BRAID WHILE CUTTING JACKET. TAPER END
OF BRAID TO PERMIT ASSEMBLY OF BRAID
CLAMP (4). SLIDE BRAID CLAMP (4) OVER BRAID
& SEAT AGAINST CABLE.
HN Male Right Angle Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400
PE4480

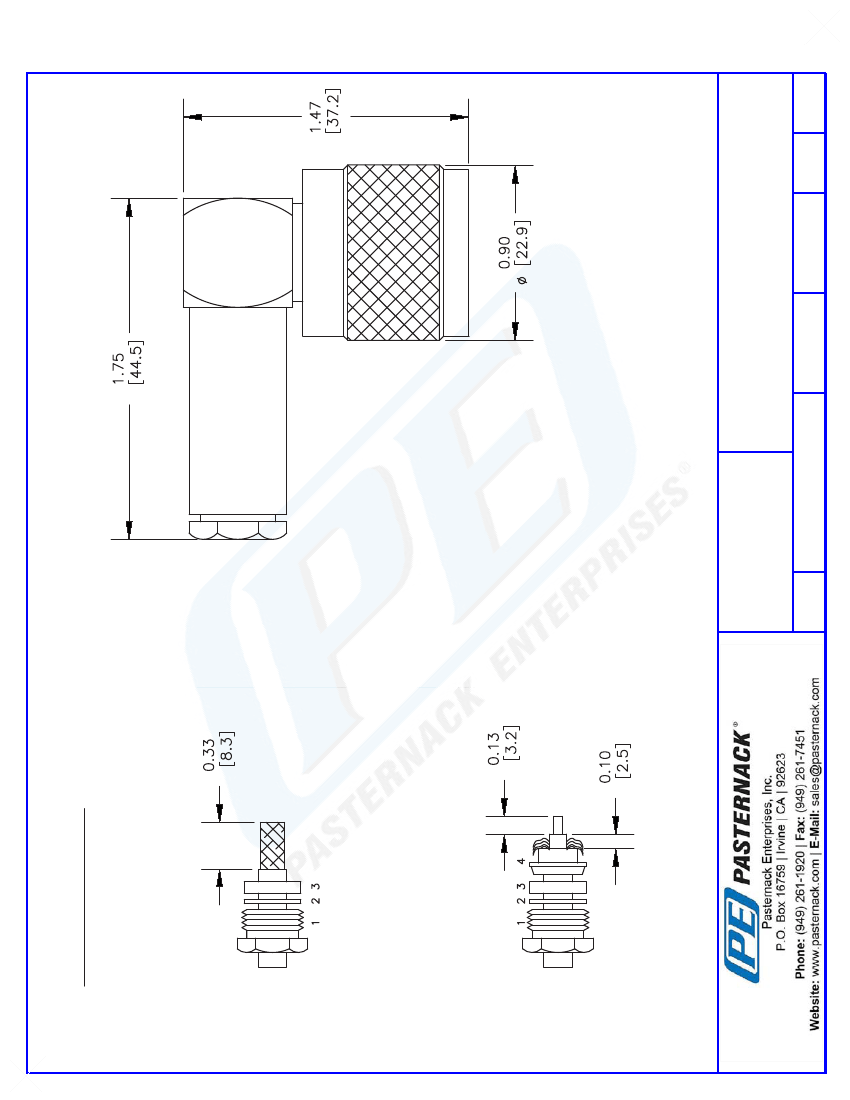

CAD Drawing
PE4480 REV
2. FORM BRAID OVER CLAMP NUT (4). TRIM BRAID
BACK TO SHOULDER. CUT DIELECTRIC &
CENTER CONDUCTOR TO DIMENSION SHOWN.
DO NOT NICK CENTER CONDUCTOR. SOLDER
CONTACT TO CENTER CONDUCTOR. REMOVE
EXCESS SOLDER. DO NOT OVER HEAT
DIELECTRIC. INSERT CABLE ASSEMBLY INTO
BODY & TIGHTEN.
PE4480
REV. -
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
051602
SCALE N/A
SIZE A
2233
3
