RP TNC Male Connector Clamp/Solder Attachment
For RG213, RG214, RG8, RG9, RG225, RG393
TECHNICAL DATA SHEET
PE4659
RP TNC Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
TNC Male Reverse Polarity
RG213,RG214,RG8,RG9,RG225,RG393
Clamp/Solder
Straight
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.675 [42.55]
0.75 [19.05]
0.11 [49.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
TNC Male Reverse Polarity
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RP TNC Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225,
RG393 PE4659
PE4659 REV 01
1
RP TNC Male Connector Clamp/Solder Attachment
For RG213, RG214, RG8, RG9, RG225, RG393
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4659
RP TNC Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RP TNC Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225,
RG393 PE4659
URL:
http://www.pasternack.com/tnc-male-reverse-polarity-rg213-rg214-rg8-rg9-rg225-rg393-connector-pe4659-p.aspx
PE4659 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
ASSEMBLY PROCEDURES
PE4659

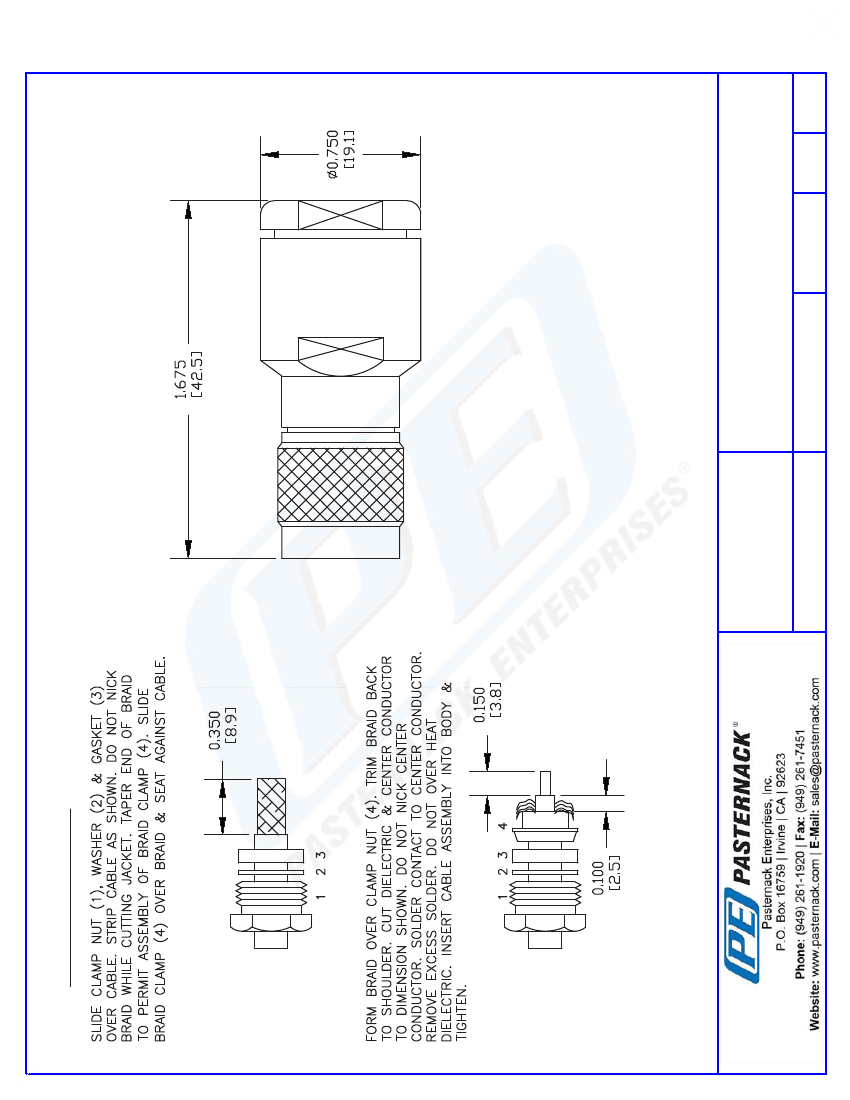

CAD Drawing
RP TNC Male Connector Clamp/Solder Attachment For
RG213, RG214, RG8, RG9, RG225, RG393
PE4659 REV 01
PE4659
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
052902
SCALE N/A
SIZE A
XXXX
3
