PE4696: DescriptionRP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG58, .480 inch D Hole; CategoryThe connector; File Size261KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE4696 Overview

RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG58, .480 inch D Hole

Preview

Download Datasheet

View All

RP TNC Female Bulkhead Connector Crimp/Solder

Attachment For RG58, .480 inch D Hole

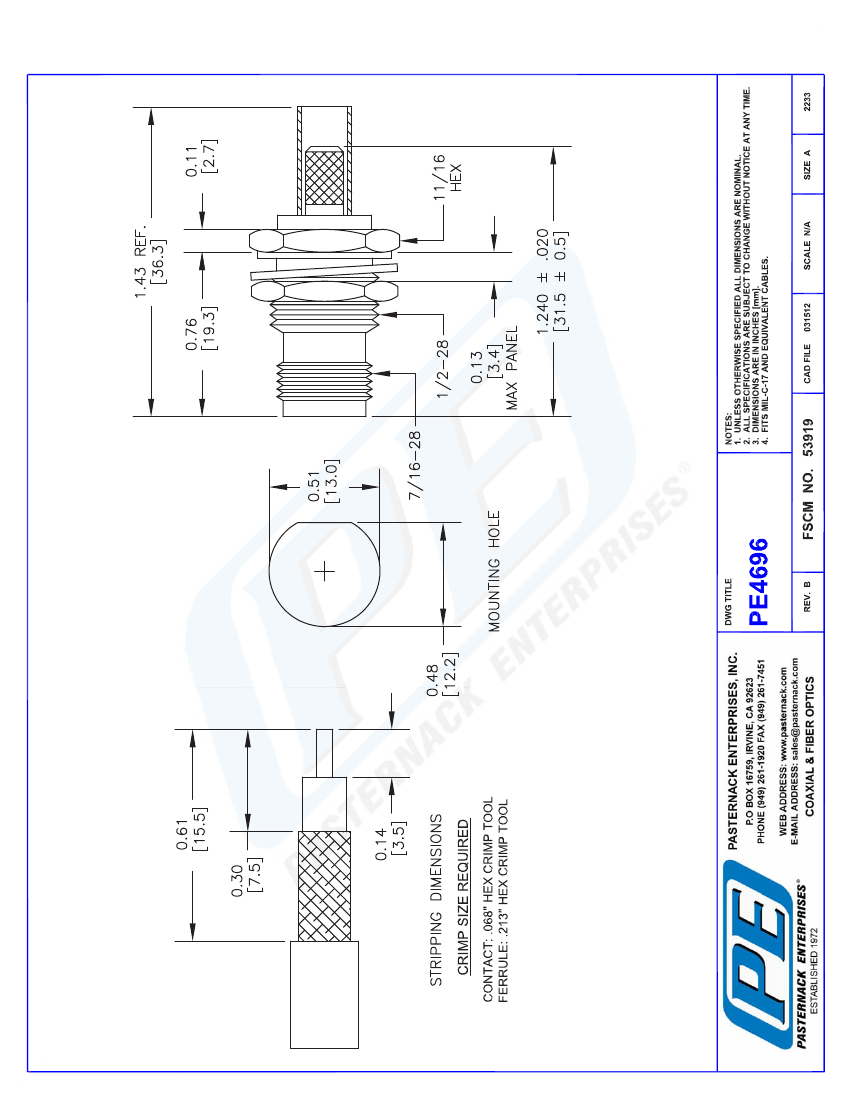

TECHNICAL DATA SHEET

RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG58, .480 inch D Hole

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

TNC Female Reverse Polarity

RG58

Crimp/Solder

Straight

Bulkhead

PE4696

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

Frequency 1

Frequency, GHz

VSWR

DC to 11

335

1,000

DC to 3

1.5:1

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

-65 to +165

1.43 [36.32]

0.689 [18]

0.041 [18.6]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

TNC Female Reverse Polarity

Brass, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/tnc-female-reverse-polarity-rg58-connector-pe4696-p.aspx

RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG58, .480 inch D Hole from Pasternack Enterprises has

same day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of

RF, microwave and fiber optic products.

PE4696 REV
