PE4700: DescriptionRP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG316, RG174, RG188, .480 inch D Hole; CategoryThe connector The connector; File Size314KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE4700 Overview

RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG316, RG174, RG188, .480 inch D Hole

PE4700 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF TNC CONNECTOR
Manufacturer's serial number	PE4700
Base Number Matches	1

Preview

Download Datasheet

View All

RP TNC Female Bulkhead Connector Crimp/Solder

Attachment For RG316, RG174, RG188, .480 inch D Hole

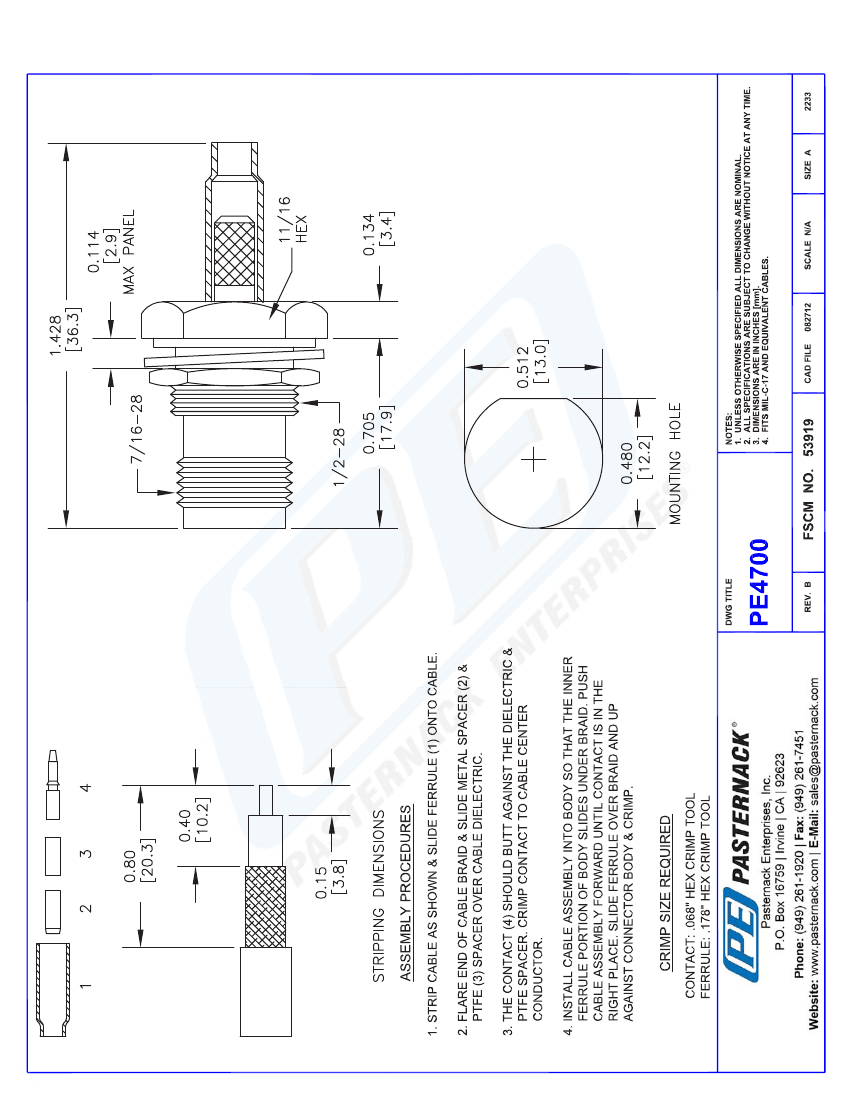

TECHNICAL DATA SHEET

PE4700

RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG316, RG174, RG188, .480 inch D

Hole

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

TNC Female Reverse Polarity

RG316,RG174,RG188

Crimp/Solder

Straight

Bulkhead

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

DC to 3

50

1.3:1

500

1,500

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

-65 to +165

1.422 [36.12]

0.689 [18]

0.048 [21.77]

TNC Female Reverse Polarity

Brass, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

RP TNC Female Bulkhead Connector Crimp/Solder Attachment For RG316, RG174, RG188,

.480 inch D Hole PE4700

PE4700 REV

1
