RP BNC Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

Preview

Download Datasheet

View All

RP BNC Female Connector Clamp/Solder Attachment

For RG213, RG214, RG8, RG9, RG225, RG393

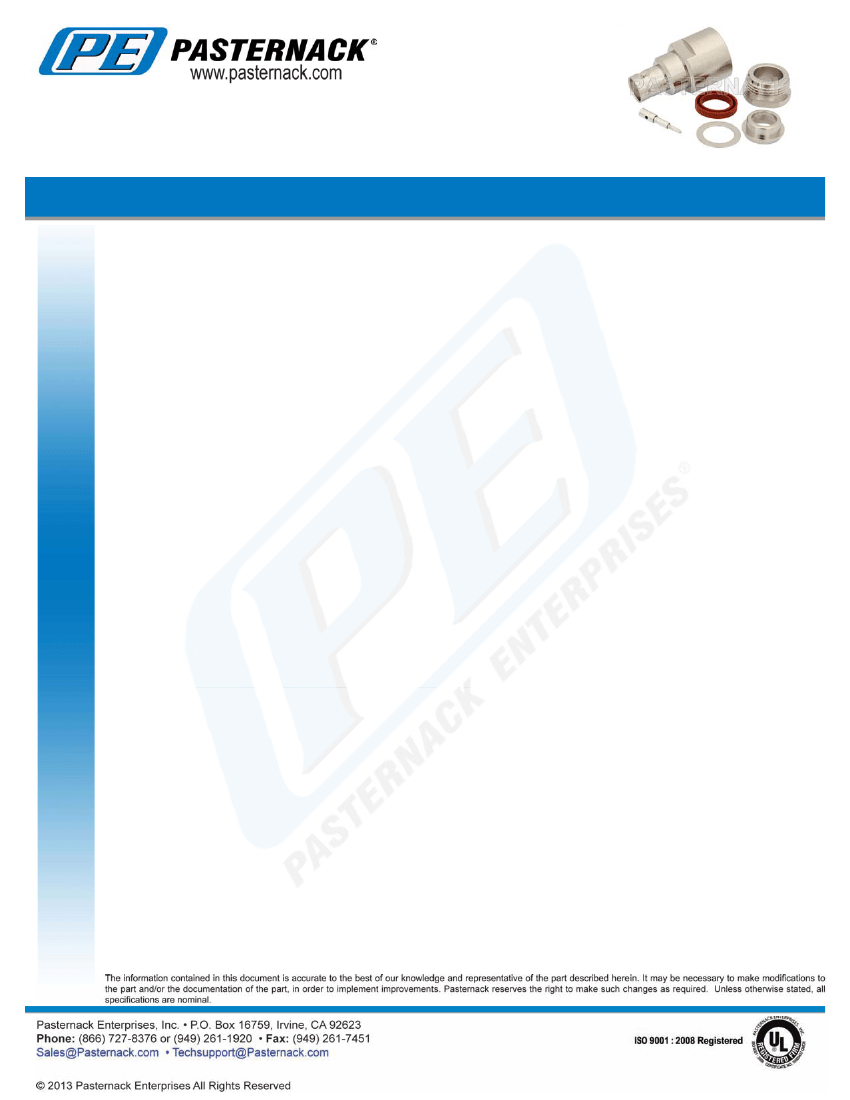

TECHNICAL DATA SHEET

PE4735

RP BNC Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

BNC Female Reverse Polarity

RG213,RG214,RG8,RG9,RG225,RG393

Clamp/Solder

Straight

Electrical Specifications

Impedance, Ohms

Mechanical Specifications

Temperature

Operating Range, deg C

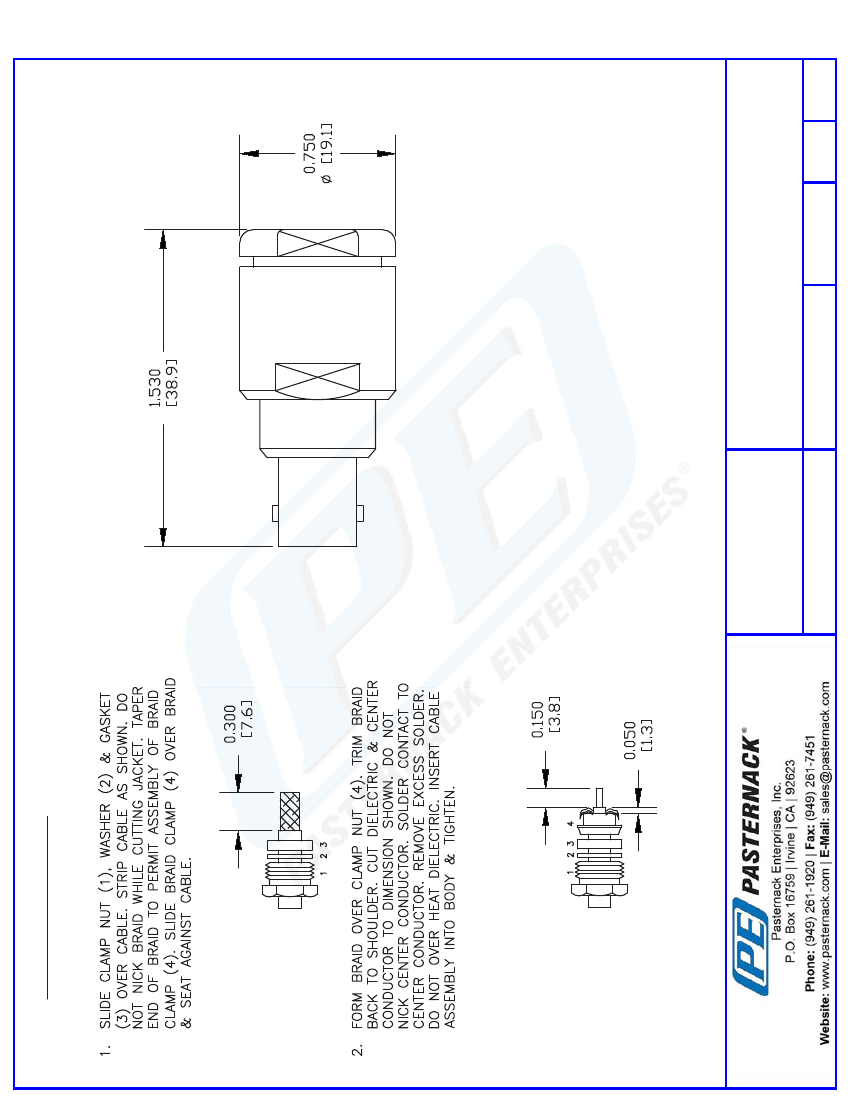

Size

Length, in [mm]

Width/Dia., in [mm]

-65 to +165

1.53 [38.86]

0.75 [19.05]

0.082 [37.19]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Dielectric Type

BNC Female Reverse Polarity

Silver

QQ-S-365

Brass, Nickel

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

RP BNC Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393 from Pasternack

Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products

maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

RP BNC Female Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225,

RG393 PE4735

URL:

http://www.pasternack.com/bnc-female-reverse-polarity-rg213-rg214-rg8-rg9-rg225-rg393-connector-pe4735-p.aspx

PE4735 REV 01
