RP BNC Female Connector Clamp/Solder Attachment
4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing

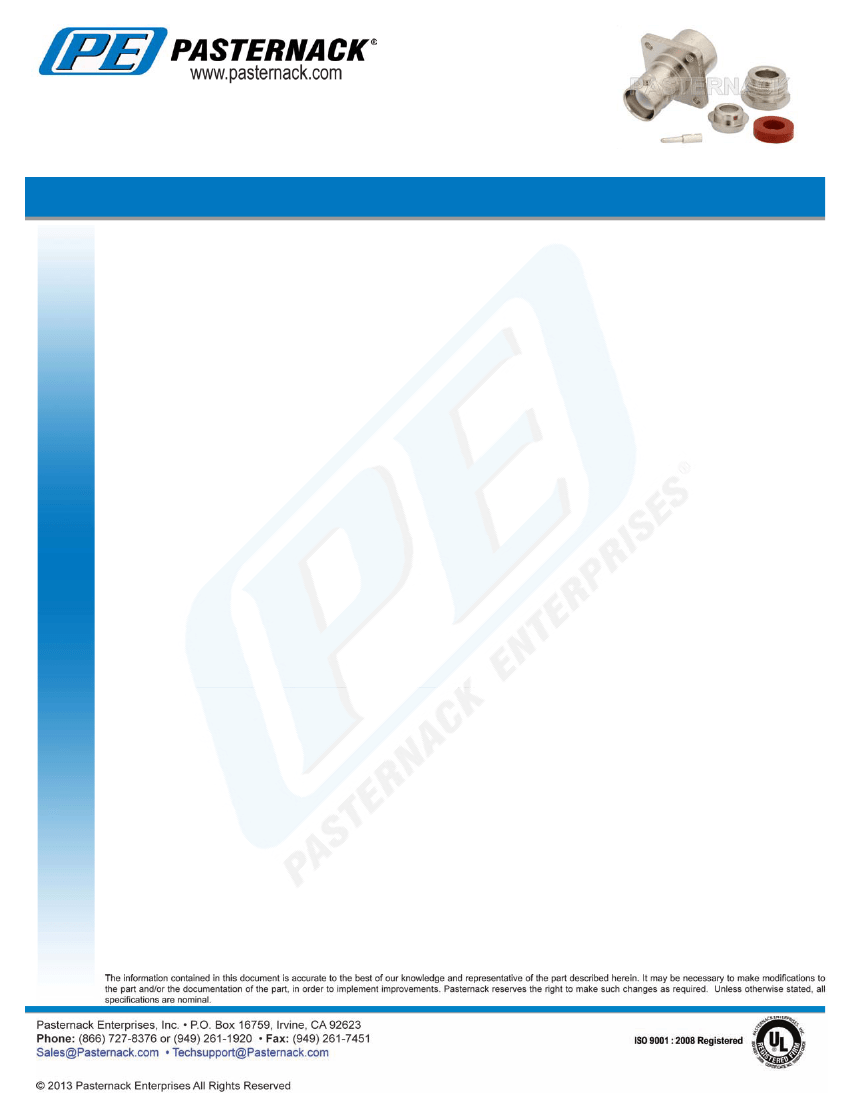

TECHNICAL DATA SHEET
PE4765
RP BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
BNC Female Reverse Polarity
MIL-C-39012
RG55,RG58,RG141,RG142,RG223,RG400
Clamp/Solder
Straight
4 Hole Flange
Electrical Specifications
Impedance, Ohms
50

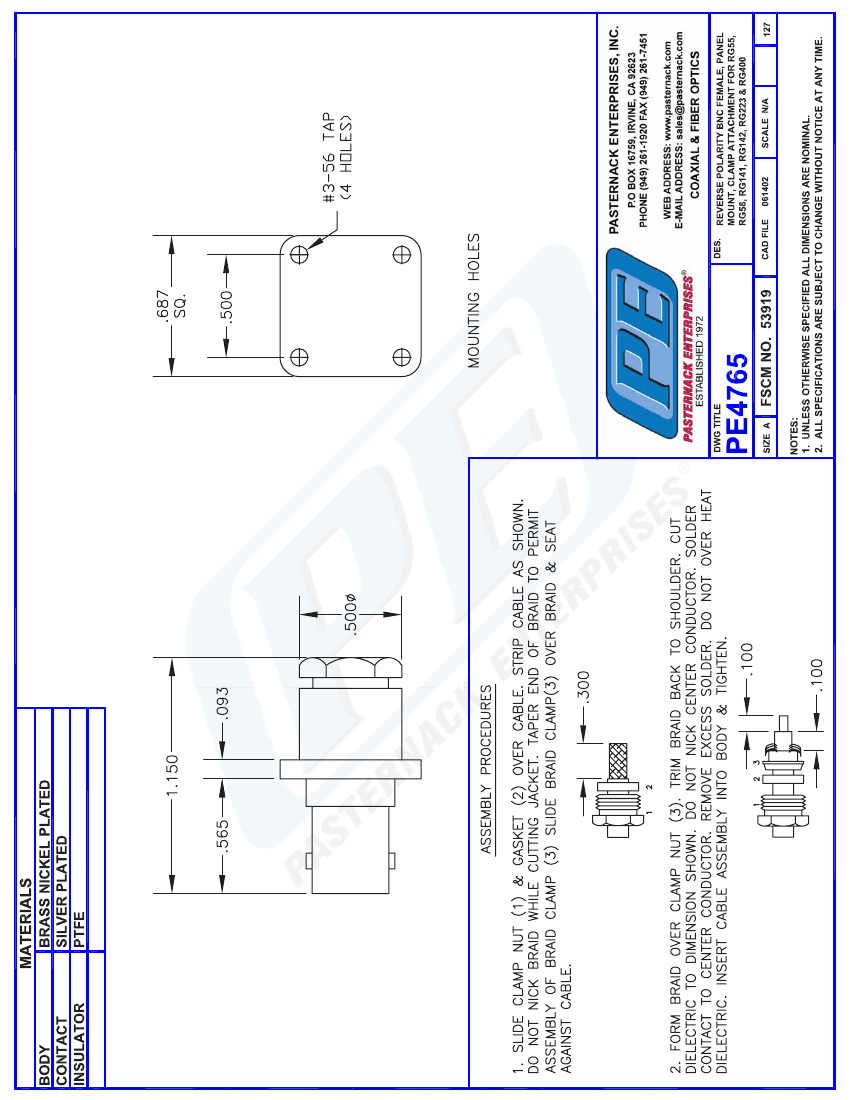

Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.15 [29.21]
0.687 [17.45]
0.687 [17.45]
0.041 [18.6]
BNC Female Reverse Polarity
Silver
QQ-S-365
Brass, Nickel
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
RP BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58,
RG141, RG142, RG223, RG400, .500 inch Threaded Hole Spacing PE4765
PE4765 REV
1
RP BNC Female Connector Clamp/Solder Attachment
4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing
TECHNICAL DATA SHEET
PE4765
RP BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141, RG142, RG223, RG400,
.500 inch Threaded Hole Spacing from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RP BNC Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141,
RG142, RG223, RG400, .500 inch Threaded Hole Spacing PE4765
URL:
http://www.pasternack.com/bnc-female-reverse-polarity-rg55-rg58-rg141-rg142-rg223-rg400-connector-pe4765-p.aspx
PE4765 REV
2
